- Sub-nanosecond time accuracy.
- Distance range: over 80 km using fiber.
- Enhances interoperability with existing network and datacenter architecture.
- Robustness & Redundancy.
- Dynamic calibration.
- 100% standalone operation.

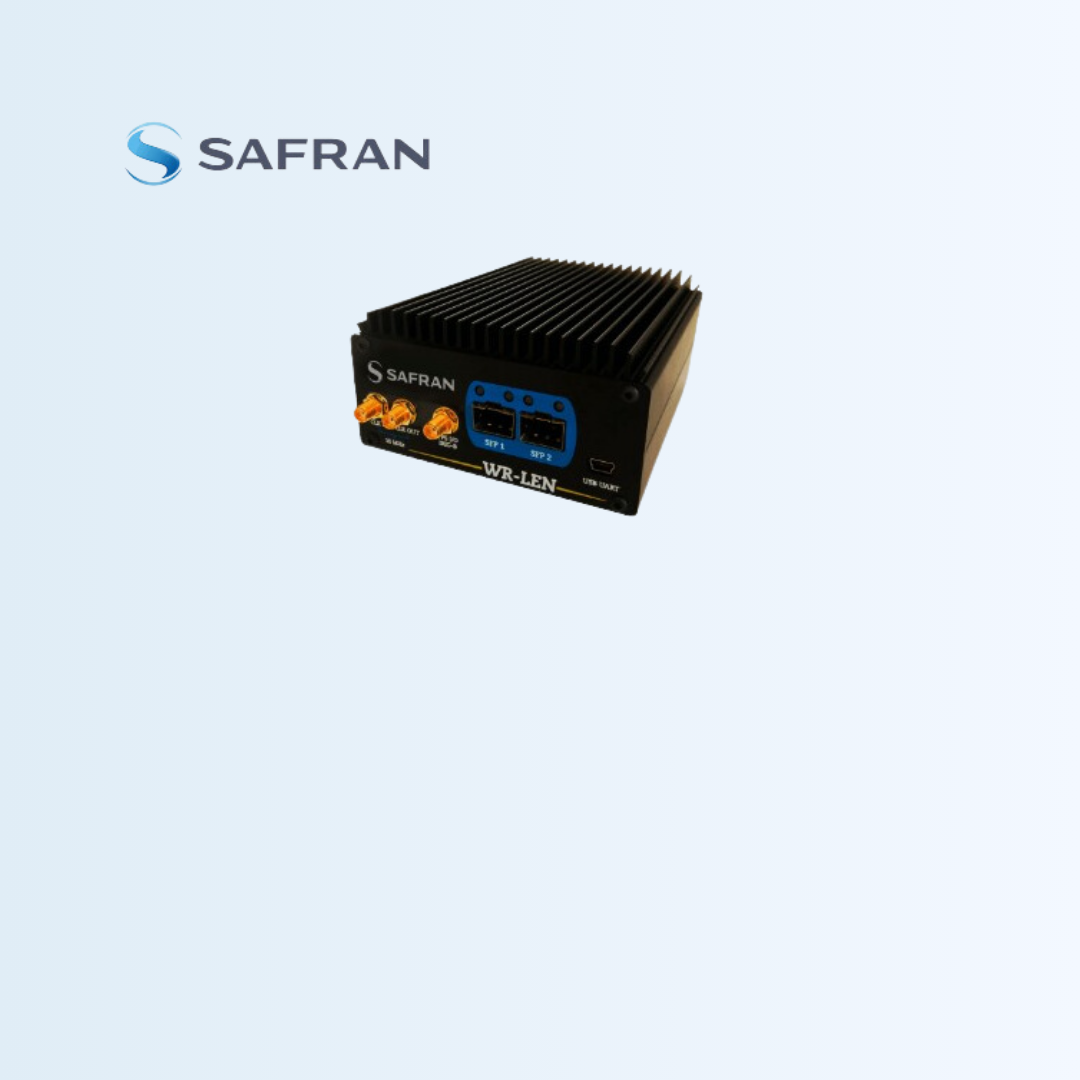

White Rabbit LEN Standalone Kits
The set that will ease your first contact with White Rabbit
WR LEN Standalone kits are consist of a set of WR-LENs that offers synchronization over daisy chain configurations, distribute accurate timing from one node to others, synchronizes IRIG-B compliant devices or take advantage of the WR network.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Size | 54 x 105 x 135 mm. |
| Power | 5V DC, 1.5 A – 7.5W max. |
| Environmental Conditions | Temperature : -10ºC ~ +50ºC. |
| Humidity | 0% ~ 90% RH. |
| Timing Protocols / Interfaces | White Rabbit – Dual optical fiber Ethernet 1G interfaces. IRIG-B / PPS I/O – Digital LVTTL (3.3V) Selectable operation. |
| Frequency I/O | 10 MHz programmable input/output. |
