- Simulates automotive load dump pulses for pre‑compliance testing.
- Adjustable rise time for customized transient simulation.
- Adjustable fall time for realistic pulse decay.
- Configurable as single pulse or multiple pulse trains.
- Compact and rugged design suitable for lab or workshop use.
- Cost‑effective alternative to full laboratory load dump generators.
- Helps identify design weaknesses before formal testing.

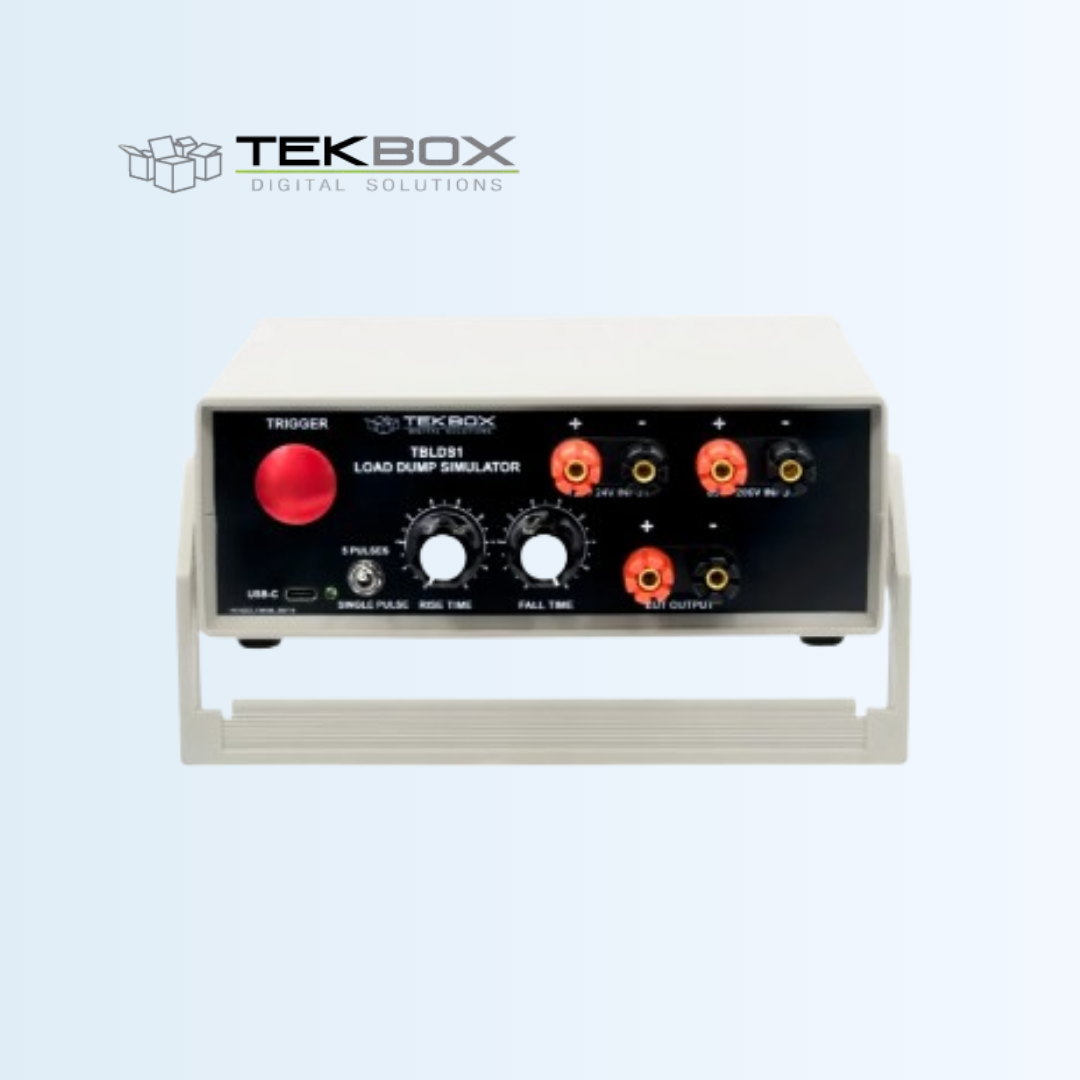

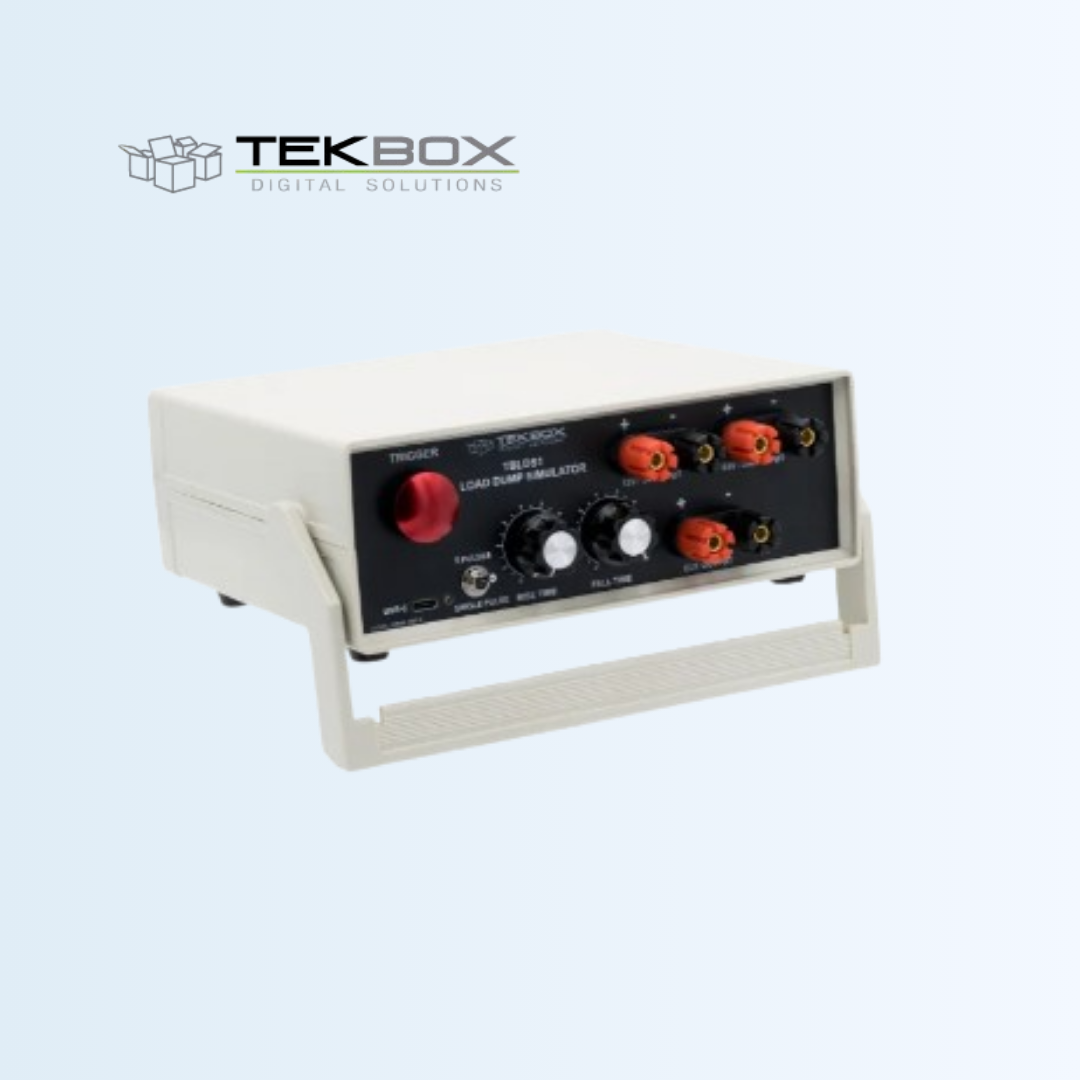

TBLDS1
Pre-Compliance Load Dump Simulator
The TBLDS1 Load Dump Simulator is designed for pre‑compliance testing of automotive electronics. It generates transient pulses according to automotive standards such as ISO 7637‑2, ISO 16750‑2, and J2139, helping engineers verify that electronic circuits can withstand voltage spikes caused by load dump conditions in vehicles before formal certification testing.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Pulse rise time | adjustable, typically 100 µs – 10 ms |
| Pulse fall time | adjustable, typically 700 ms – 1 s |
| Pulse modes | single pulse or five pulses at 10‑second intervals |
| Internal resistance (Ri) | 2 Ω |
| Maximum EUT current | 3 A (12 V systems) / 1.5 A (24 V systems) |
| EUT voltage requirement | external +14 V (12 V) or +28 V (24 V) power supply |
| Transient supply requirement | external power supply up to +230 V |
| Internal supply | galvanically isolated, powered via USB‑C (USB‑C supply not included) |
| Dimensions (L × W × H) | 19 cm × 22 cm × 8 cm |
| Weight | 900 g |
| Application suitability | pre‑compliance load dump testing for automotive electronics |
