- Probe set includes both magnetic (H‑field) and electric (E‑field) probes.
- Frequency range up to 6 GHz for broad RF coverage.
- Slim design for accessing tightly spaced components.
- Shielded loops reduce common‑mode noise and are insensitive to human hand interference.
- Rubber‑insulated for durability and ease of use.
- Ideal for radiated EMC measurement, RF immunity testing, and signal chain diagnostics.
- Effective for non‑contact relative measurement of RF circuits and components.
- Works with spectrum analyzers as a near‑field antenna set for troubleshooting and pre‑compliance evaluation.
TBPS01
EMC Near-field Probes + TBWA2 Wideband Amplifier
The TBPS01 EMC Near‑Field Probe Set is a toolkit of magnetic and electric field probes designed for EMC/EMI pre‑compliance testing and RF troubleshooting. These near‑field probes are used to locate and identify sources of electromagnetic emissions directly on PCBs, components, cables, or enclosures by detecting radiated fields without physical contact. They are typically connected to a spectrum analyzer and used to scan around electronic assemblies to find and analyze noise sources. The set allows engineers to quickly isolate and debug radiated emission issues during product development and pre‑compliance testing.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters

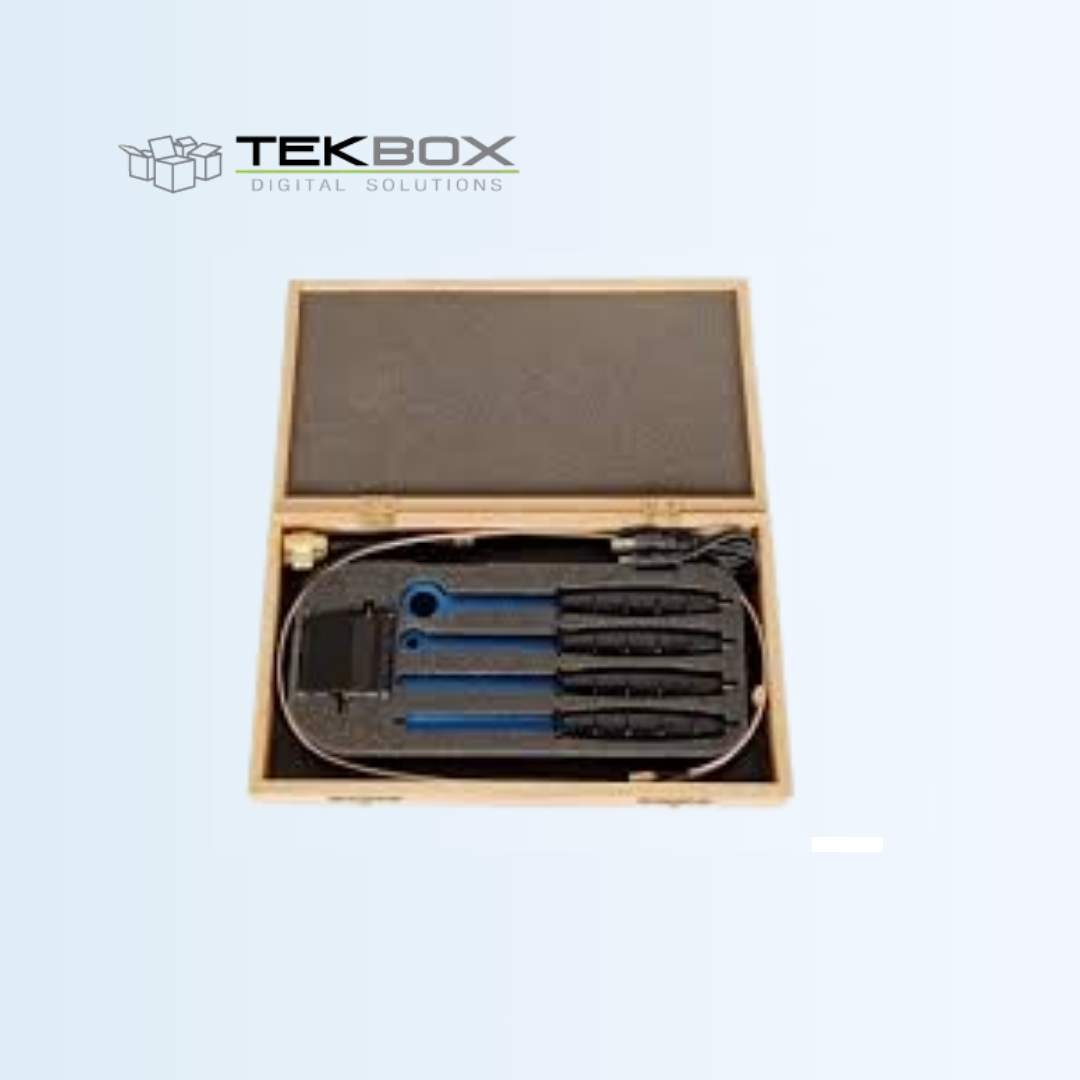

| Probe Set Contents (typical) | H20 magnetic field (H‑field) probe. H10 magnetic field (H‑field) probe. H5 magnetic field (H‑field) probe. E5 electric field (E‑field) probe. SMB to SMA cable (approx. 75 cm). Coaxial adapters and protective case |
| Frequency range | approx. 1 MHz – 1 GHz (usable up to 6 GHz depending on analyzer and configuration) |
| Connector impedance | 50 Ω |
| Probe dimensions (typical) | H20 H‑Field 170 mm length, 20 mm loop. H10 H‑Field 170 mm length, 10 mm loop. H5 H‑Field 170 mm length, 5 mm loop. E5 E‑Field 170 mm length, 5 mm tip. |
| Housing | rugged insulator with rubber coating for durable use |
| Operating environment | designed for lab and field EMC troubleshooting |
| Compatibility | works with RF test equipment such as spectrum analyzers and receivers |
