- Converts SDI-12 sensor signals to RS-232 serial interface
- Functions as an SDI-12 bus sniffer for monitoring traffic
- Supports standard SDI-12 communication and diagnostics
- Easy plug-and-play operation
- Low power consumption for field or desktop use
- Rugged and compact design for industrial and environmental applications

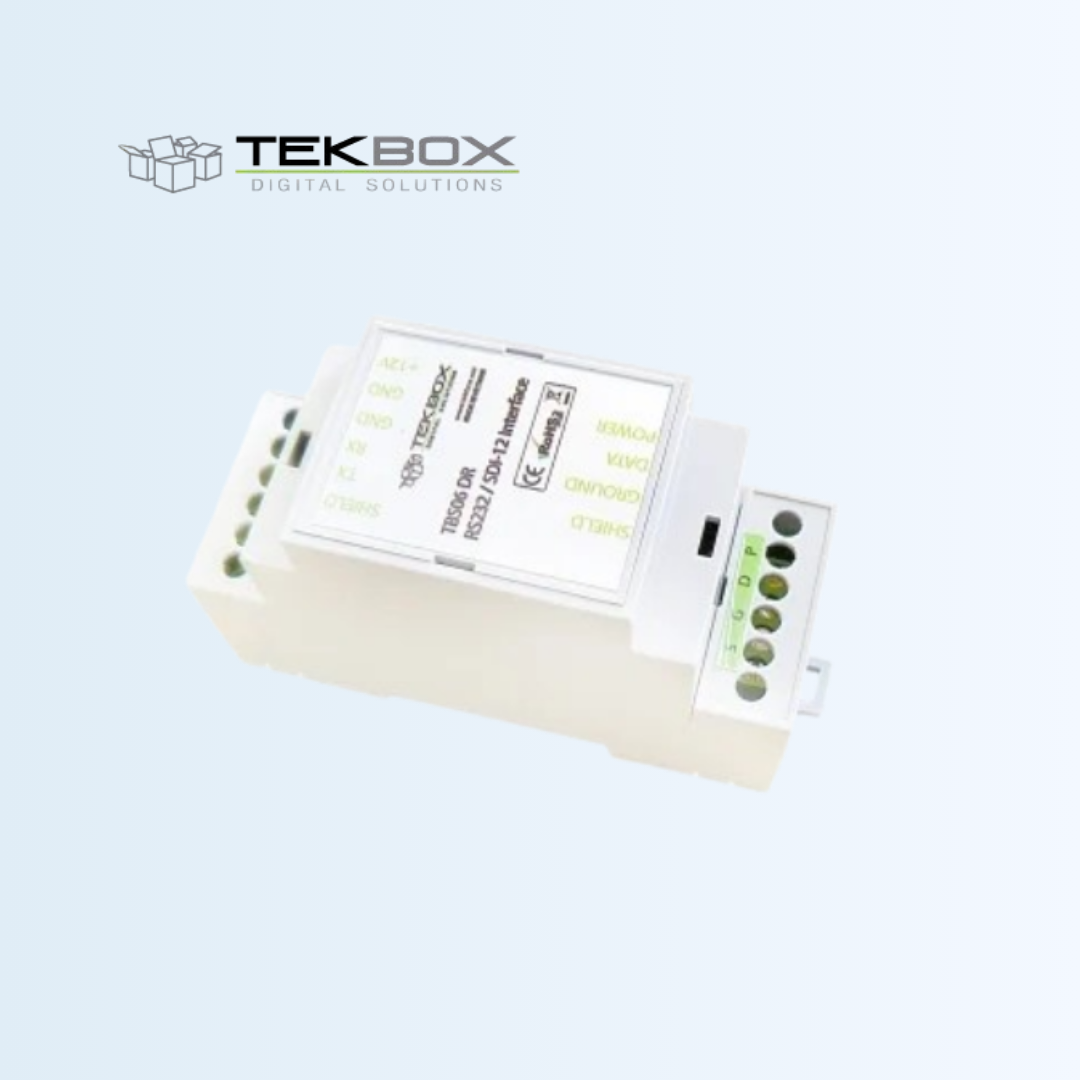

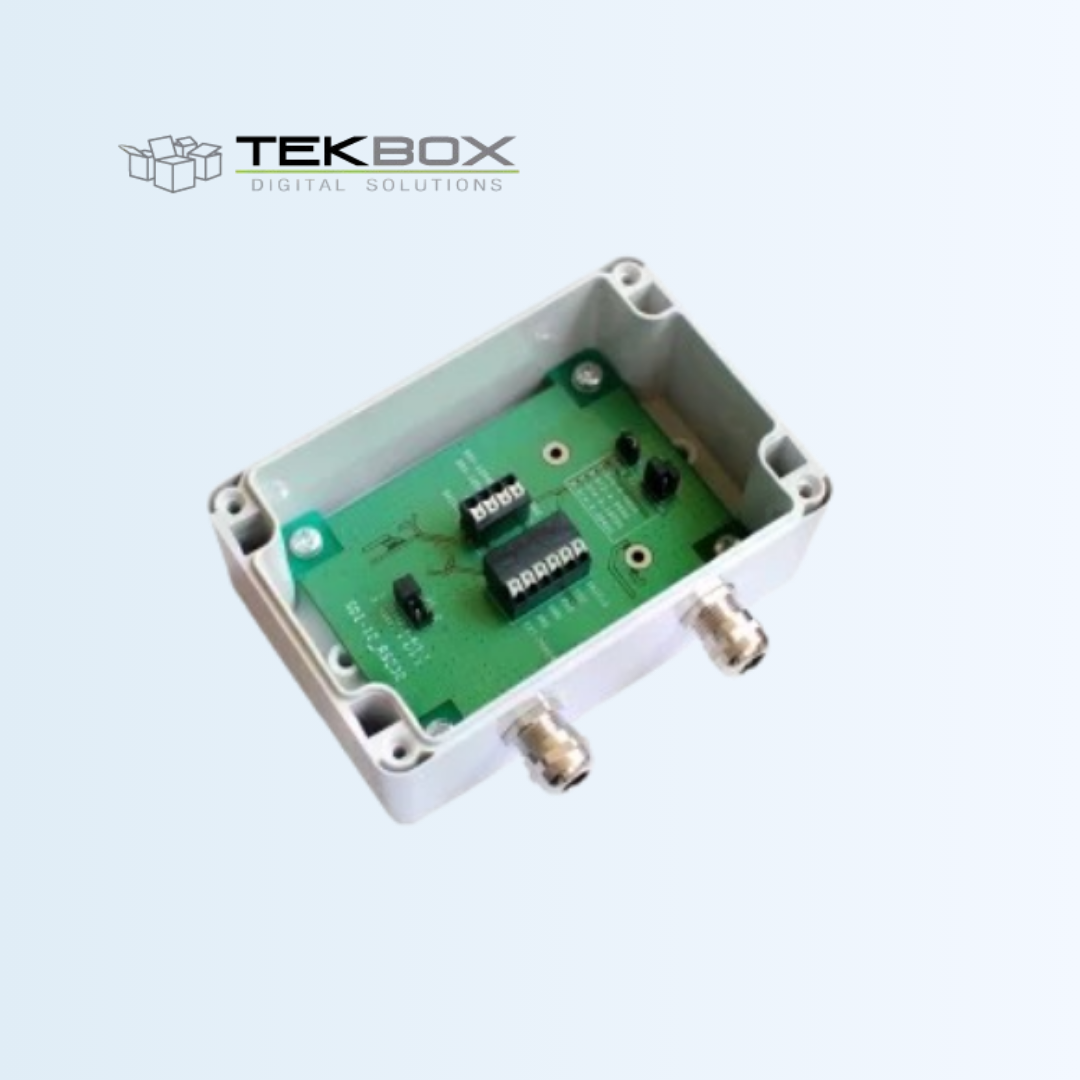

TBS06-TS SDI-12 TO RS232
Converter and Bus Sniffer
The TBS06-TS (DR) RS232 to SDI-12 Converter is an interface for connecting a PC, data logger or RTU to one or more sensors with SDI-12 interface. The TBS06-TS connects to the RS232 interface and provides a SDI-12 compliant data interface. The TBS06-TS is a versatile tool for everyone who designs sensors and data recorders or who installs, tests or maintains SDI-12 based data acquisition systems. Furthermore it includes a SDI-12 bus sniffer mode.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Device type | SDI-12 to RS-232 converter with bus sniffer |
| Input interface | SDI-12 communication bus |
| Output interface | RS-232 serial port |
| SDI-12 standard supported | SDI-12 v1.3 |
| RS-232 communication | standard asynchronous serial protocol |
| Bus sniffer capability | monitors SDI-12 traffic for diagnostics |
| Power supply | external or via RS-232 host (depending on configuration) |
| Connector types | SDI-12 terminal and RS-232 port |
| Operating temperature range | –10 °C to +60 °C (typical) |
| Enclosure | robust housing suitable for field/industrial use |
| Mounting options | portable or panel installation |
| Application suitability | SDI-12 sensor integration and communication debugging |
| Value proposition | versatile converter with diagnostic bus sniffer functionality |
