- High-resolution 24-bit ADC with 4 analogue input channels.
- Flexible input: 4–20 mA or 0–2.5 V.
- Built-in PT100/PT1000 temperature interface.
- Independent gain & offset calibration per channel.
- SDI-12 standard V1.3 control.
- Onboard sensor power control (FET switches).
- Over-voltage protection and line rejection filters.
- Compact IP67 or DIN-rail housing.
- Wide supply range: 6–16 V.
- Rugged for field and environmental monitoring.

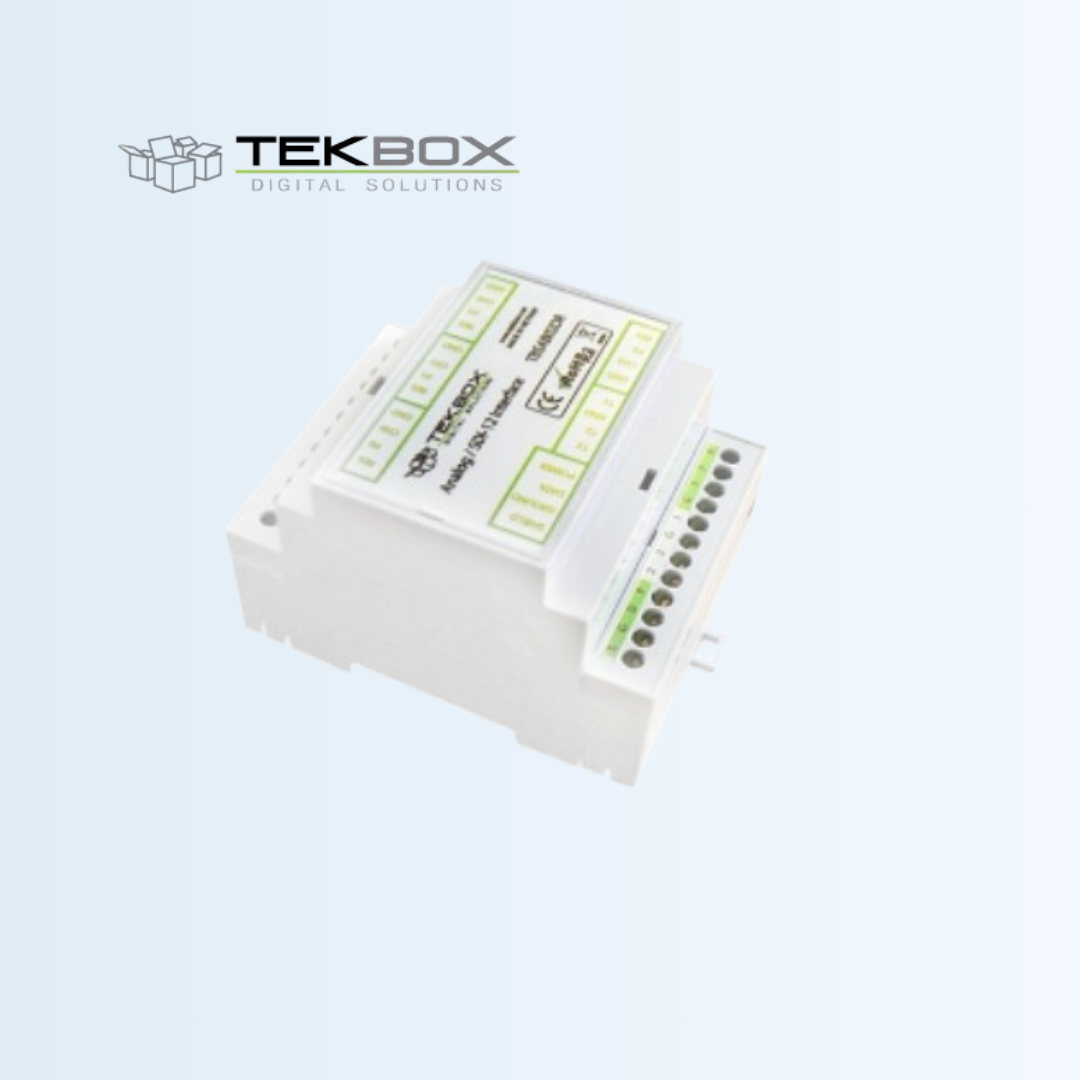

TBSAB02
4+1 CHANNEL 24 Bit Analogue To SDI-12 Interface
The TBSAB02 is a 4+1 channel analogue to SDI-12 interface for 24 Bit A/D conversion of sensor signals. A/D conversion and configuration is controlled via SDI-12 commands. The interface is equipped with signal conditioning circuits which can be customized for various input voltage ranges. It offers low current consumption and comes in a Fibox PC081206 IP67 rated or in Din Rail housing.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Interface | Analogue to SDI-12 |
| ADC Channels | 4 + 1 channel, 24-bit Sigma-Delta |
| Input Types | 4–20 mA / 0–2.5 V (configurable) |
| Temperature Input | PT100 / PT1000 (3-wire) |
| Line Rejection | 50 Hz & 60 Hz |
| Reference Accuracy | ±0.025%, 2 ppm/°C |
| Signal Conditioning | Built-in, chopper-stabilized buffer |
| Calibration | Gain & offset configurable (polynomial scaling) |
| Sensor Power Control | SDI-12 controlled FET switches |
| SDI-12 Standard | Version 1.3 |
| Supply Voltage | 6–16 V DC |
| Operating Temperature | −40 °C to +85 °C |
| Housing | IP67 Fibox or DIN-rail |
