- SDI-12 to analogue interface module (A/D conversion).
- Plug-and-play with SDI-12 commands.
- Low power and small footprint (module SMT).
- Includes SDI-12 front-end, controller, crystal & passive parts.
- Configurable gain, offset, and channel format.
- Integrated 12-bit temperature sensor.
- Sensor power management signals.
- Built-in DAC output & reference voltage input.
- Operates without additional SDI-12 implementation required.

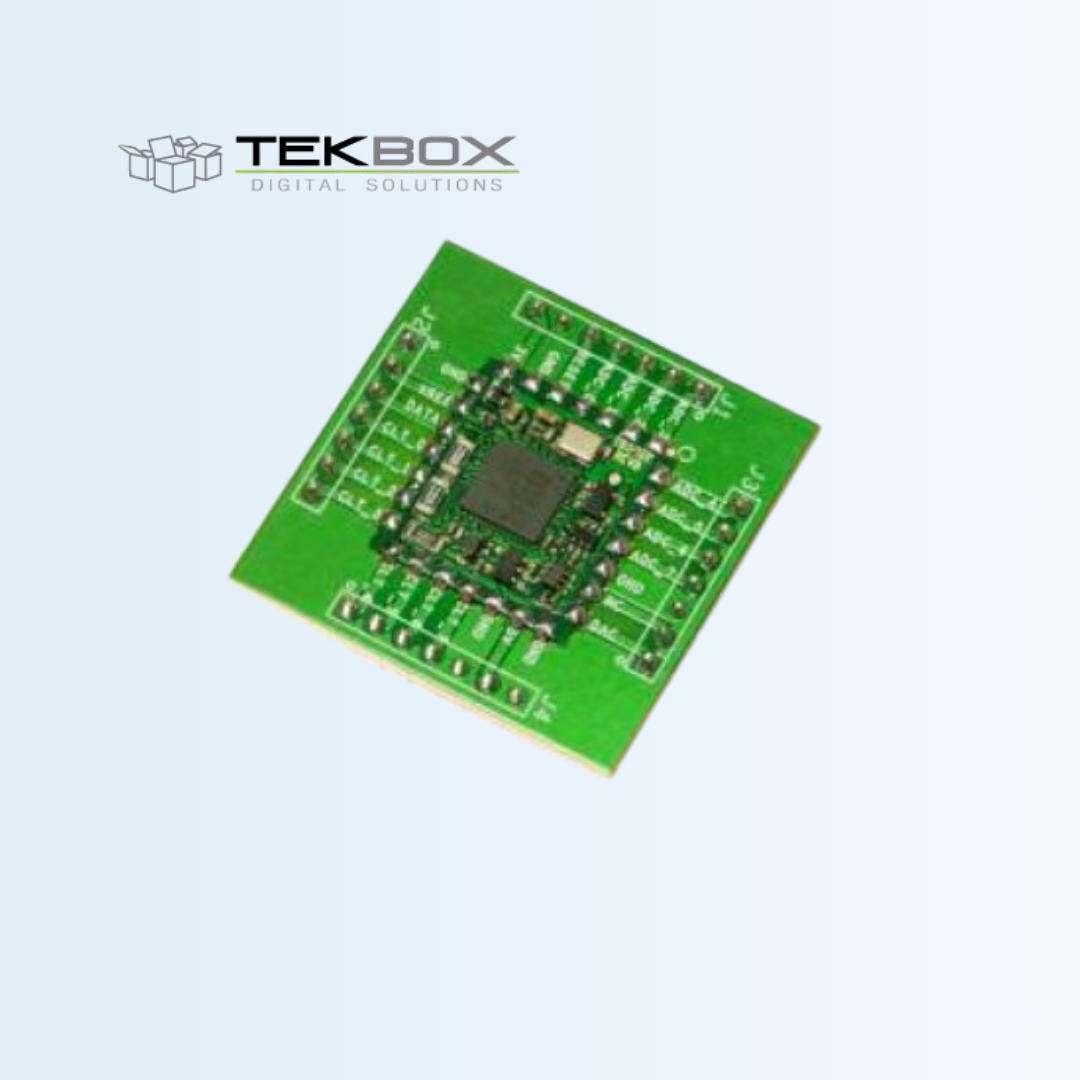

TBS02B
SDI-12 TO Analog Converter Module And Interface Board
The TBS02B SDI-12 to Analog Converter Module is a compact SDI-12 interface for analogue sensor A/D conversion. It interprets SDI-12 commands directly and performs conversion without requiring the user to implement SDI-12 protocol or interface hardware. The module is plug-and-play, consumes low power, and is designed for cost-sensitive sensor applications needing SDI-12 integration.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Interface | SDI-12 to analogue A/D converter |
| ADC Channels | 8 × 12-bit |
| DAC Output | 1 × 12-bit |
| Temperature Sensor | Integrated 12-bit |
| Sensor Power Control | Configurable per channel |
| Channel Calibration | Gain & offset configurable |
| Reference Voltage Input | Yes |
| Power Down Mode | Supported |
| SDI-12 Standard | Version 1.3 |
| Supply Voltage | 3.3 V / 5 V |
| Footprint | 19 mm × 18 mm |
| Operating Temp Range | −40 °C … +85 °C |
