- Supports CW (continuous wave) operation with modulation off.
- Built-in AM modulation (1 kHz, 80 % depth) for immunity test signals.
- Built-in pulse modulation (PM) (1 kHz, 50 % duty cycle).
- Can generate 217 Hz pulse modulation with 12.5 % duty cycle to simulate mobile phone TDMA noise.
- Ideal to drive RF near-field probes, TEM cells, and conducted test setups for immunity pre-compliance.
TBMDA3B
Modulated Power Amplifier

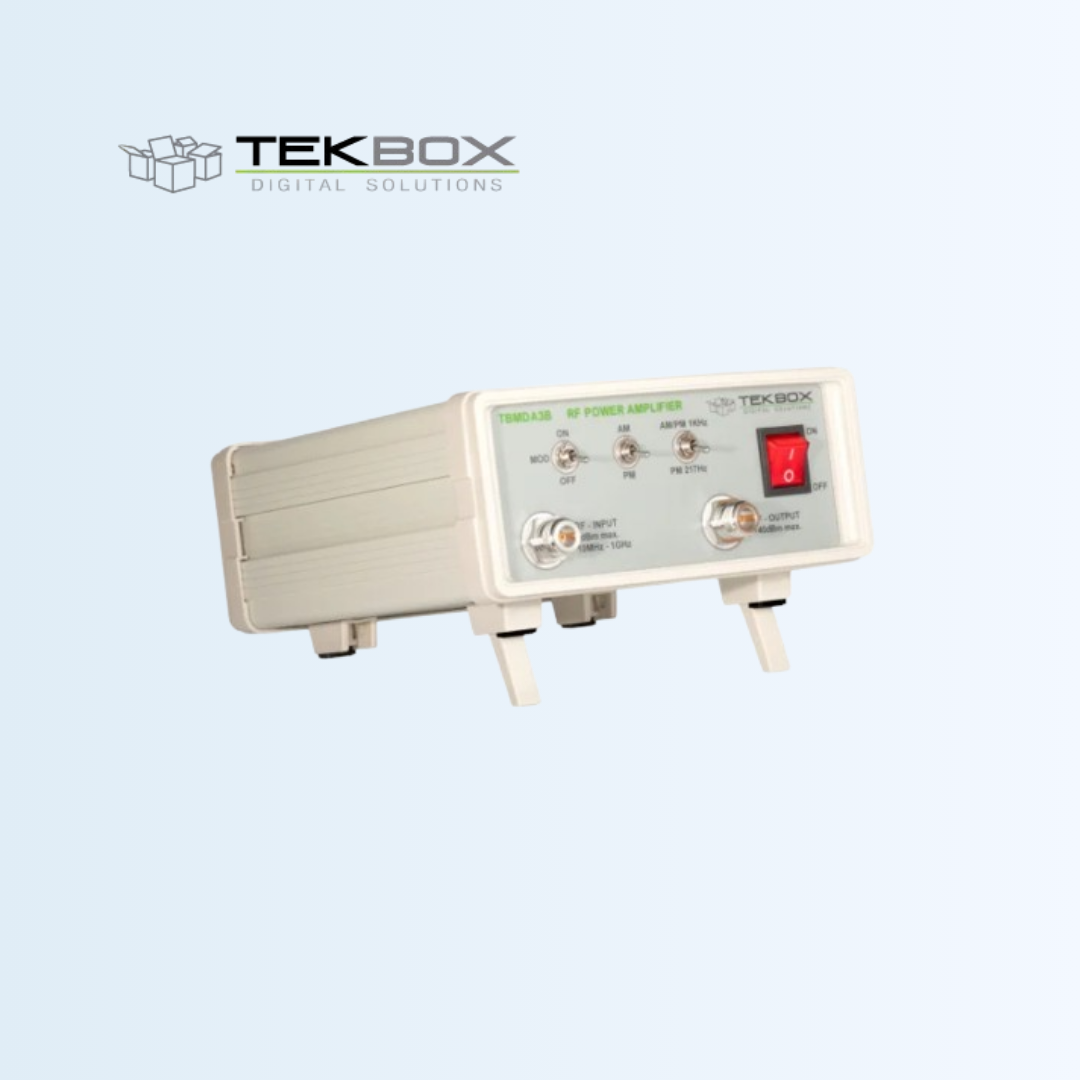

The Tekbox TBMDA3B is a modulated wideband RF power amplifier designed to act as a cost-effective RF power source for EMC immunity testing and RF measurement applications. It is driven by the tracking generator output of a spectrum analyzer and delivers high output power across a wide frequency range, making it ideal for conducted and radiated immunity testing using near-field probes, CDNs/BCI probes, or TEM cells.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency Range | 10 MHz – 1 GHz (usable 5 MHz – 1.1 GHz) |
| Input / Output Impedance | 50 Ω, N-female |
| Small-Signal Gain | ~42.5 dB typical |
| Saturated Output Power | Up to ~11.2 W (typical max ~40.5 dBm) across 10 MHz – 500 MHz |
| 1 dB Compression Point | ~38 – 40 dBm depending on frequency |
| Supply Voltage Range | 110 V – 240 V AC |
| Operating Temp. Range | –20 °C to +50 °C |
| Supply Power Consumption | ~25 W @ 220 V |
| Harmonic Performance | Typical harmonic levels and distortion defined in manual |
