- Wideband RF amplification for test signal boosting.
- Continuous Wave (CW) — no modulation.
- 1 kHz, 80 % AM modulation.
- 1 kHz, 50 % duty cycle pulse modulation.
- 217 Hz, 12.5 % duty cycle pulse modulation to simulate mobile phone TDMA noise.
- Designed to interface with spectrum analyzers and tracking generators.
- Ideal to drive Tekbox near-field probes or TEM cells for EMC immunity testing.

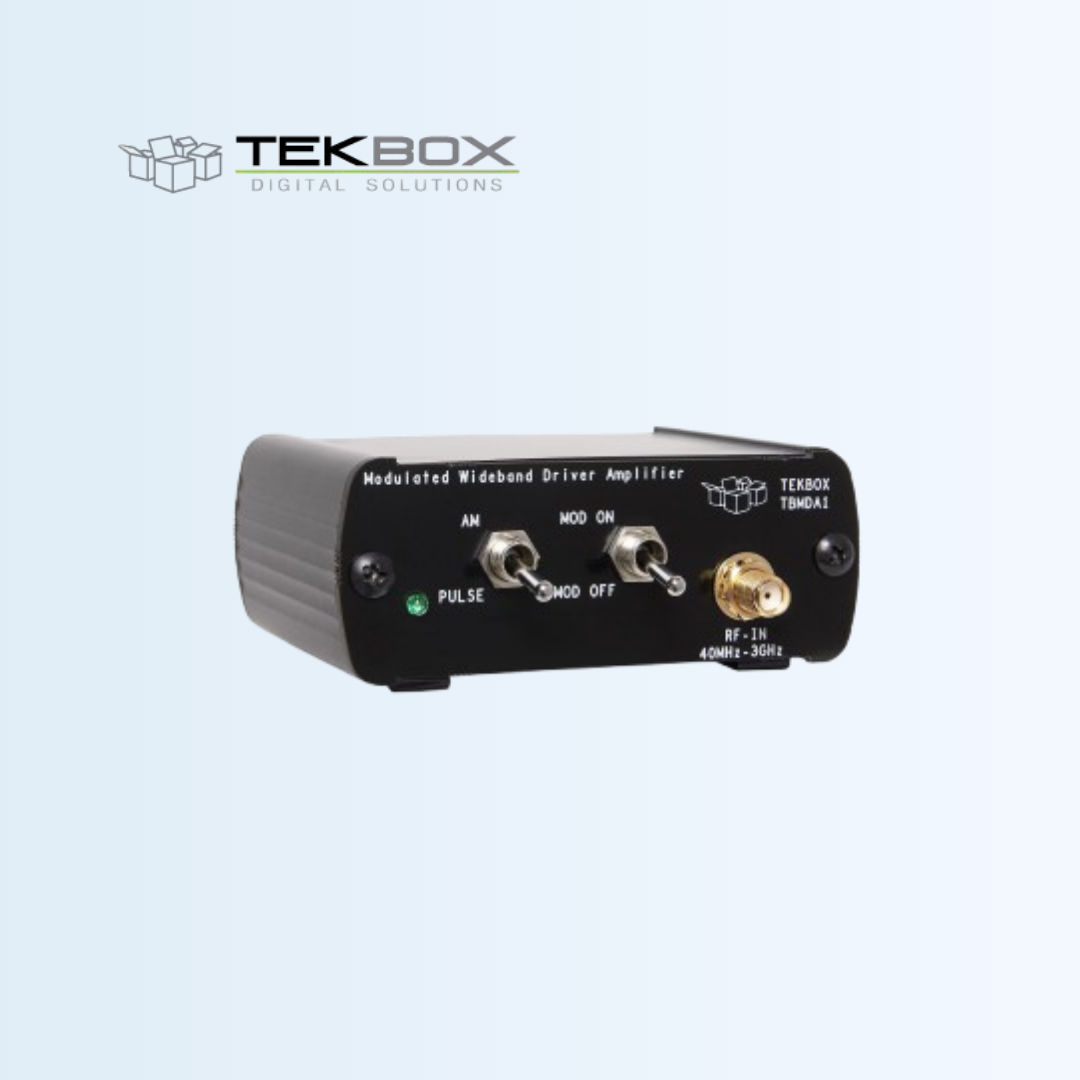

TBMDA1
Modulated Wideband Driver Amplifier
The Tekbox TBMDA1 is a modulated wideband driver amplifier designed to act as an inexpensive signal source for immunity testing of electronic circuits and products. It is intended to be driven by the tracking generator output of a spectrum analyzer and provides significant gain to boost low-power RF signals to usable test levels. With its built-in modulation features, it can generate CW, AM, and PM test signals for a wide range of EMC and RF testing applications.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters

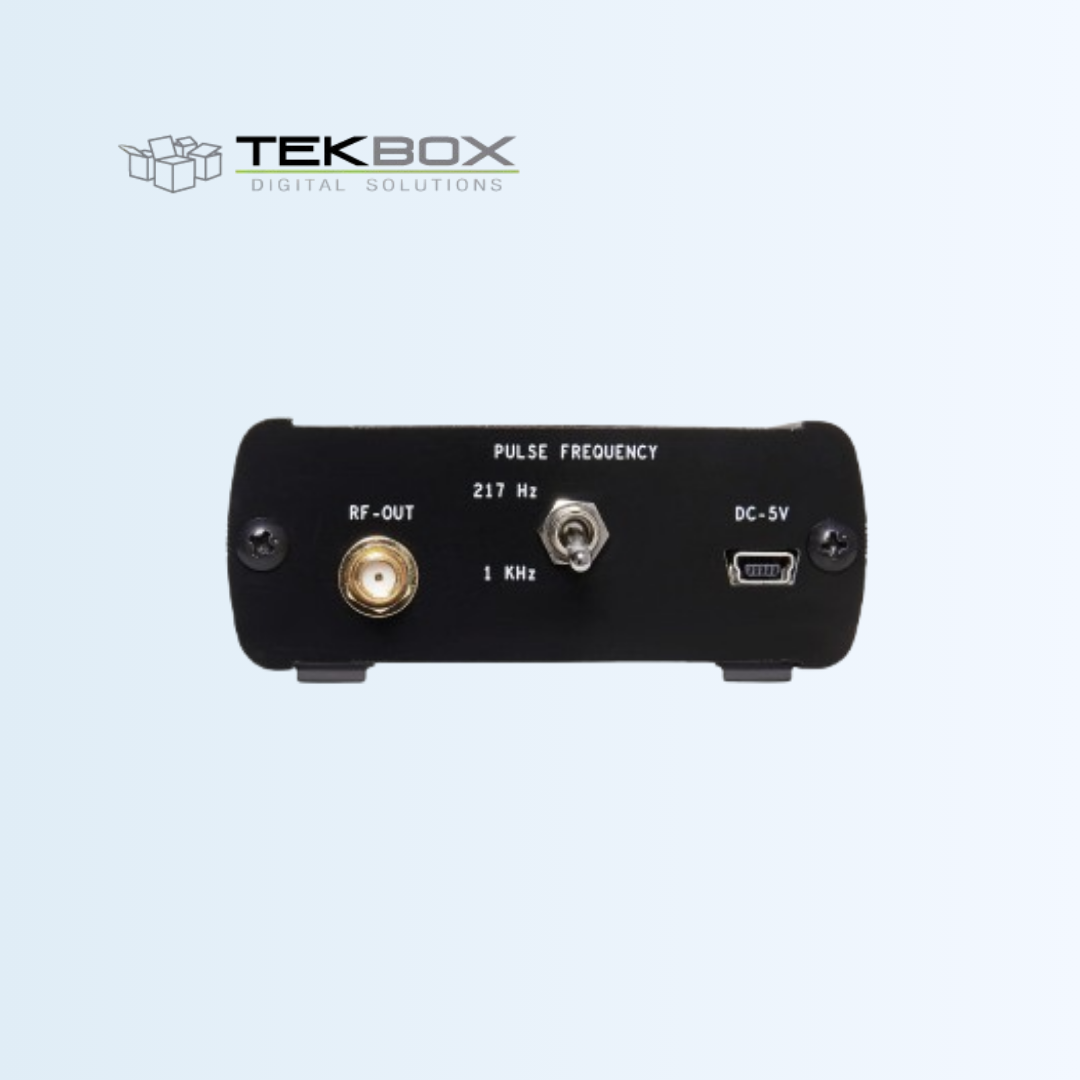

| Input | 50 Ohm, SMA female |
| Output | 50 Ohm, SMA female |
| Nominal supply Voltage | 5V, typ. 235mA, Mini-USB-B connector |
| Maximum supply voltage | 5.5V |
| Maximum input power | +9dBm |
| 1dB output compression point @ 40MHz | +21.5dBm |
| 1dB output compression point @ 2 GHz | +22.5dBm |
| 3rd order output intercept point @ 40 MHz | +39dBm |
| 3rd order output intercept point @ 2 GHz | +42dBm |
| Reverse isolation S12 | -45dB |
| Noise Figure | 3 … 4 dB |
| Internal modulation frequency AM | 1 kHz ±10% |
| Internal modulation frequencies PM | 1 kHz ±10%, 217 Hz ±20% |
| Duty cycle, PM | 50% ±10% @ 1 kHZ; 12.5% ±20% @ 217 Hz |
