- Standardized 50 Ω // 50 µH LISN design for reliable conducted noise testing.
- Supports both AC and DC supplied equipment measurements.
- Can be used in pairs or multiples for single-phase or three-phase tests.
- Includes BNC male to N male cable, mating connectors, and an individual calibration protocol.
- Compatible with Tekbox LSIN-Mate to separate common-mode and differential-mode noise.
TBL50100-1
Line Impedance Stabilisation Network LISN – CISPR 16

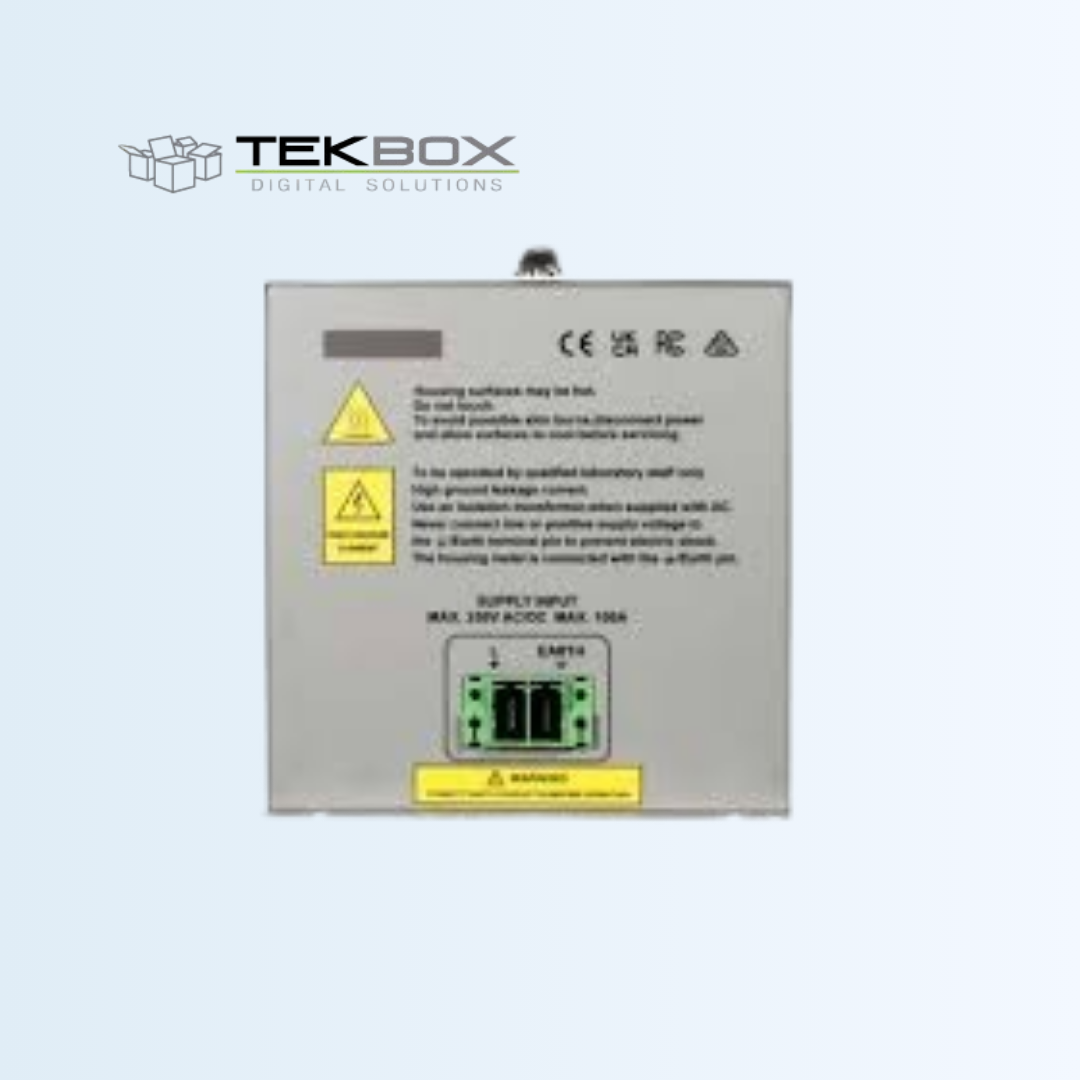

The Tekbox TBL50100-1 is a single-channel 50 Ω // 50 µH Line Impedance Stabilisation Network (LISN) designed for conducted noise measurements on AC or DC powered equipment according to CISPR 16-1-2 standards. It establishes a defined and stable impedance between the power source and the device under test (EUT), allowing accurate measurement of noise using a spectrum analyzer or EMI receiver.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| LISN type | V-AMN, 50 Ω // 50 µH; no 250 µH pre-filter |
| Specified frequency range | 150 kHz – 30 MHz |
| Characterized frequency range | 9 kHz -100 MHz |
| DC Resistance | < 45 mΩ |
| Maximum current | 70 A continuous, 100A for 10 minutes; see heat up characteristics plot |
| Operating voltage range | 0 – 250V DC; 0 – 250V AC (50/60 Hz) |
| High current plug / screw terminals; male | Phoenix Contact 1762741, female: Phoenix Contact 1762592 |
| RF connector | BNC female |
| Dimensions | 350 mm x 230 mm x 230 mm |
| Weight | 5.3 kg |
