- Designed for ESD system verification and calibration.
- Provides a defined discharge surface for repeatable ESD tests.
- Helps ensure reliable ESD immunity measurements.
- Rugged conductive construction for long-term use.
- Suitable for lab, pre-compliance, and production test environments.
- Easy to mount and use with standard ESD test setups.
TBESDT2
1 Ohm ESD Target

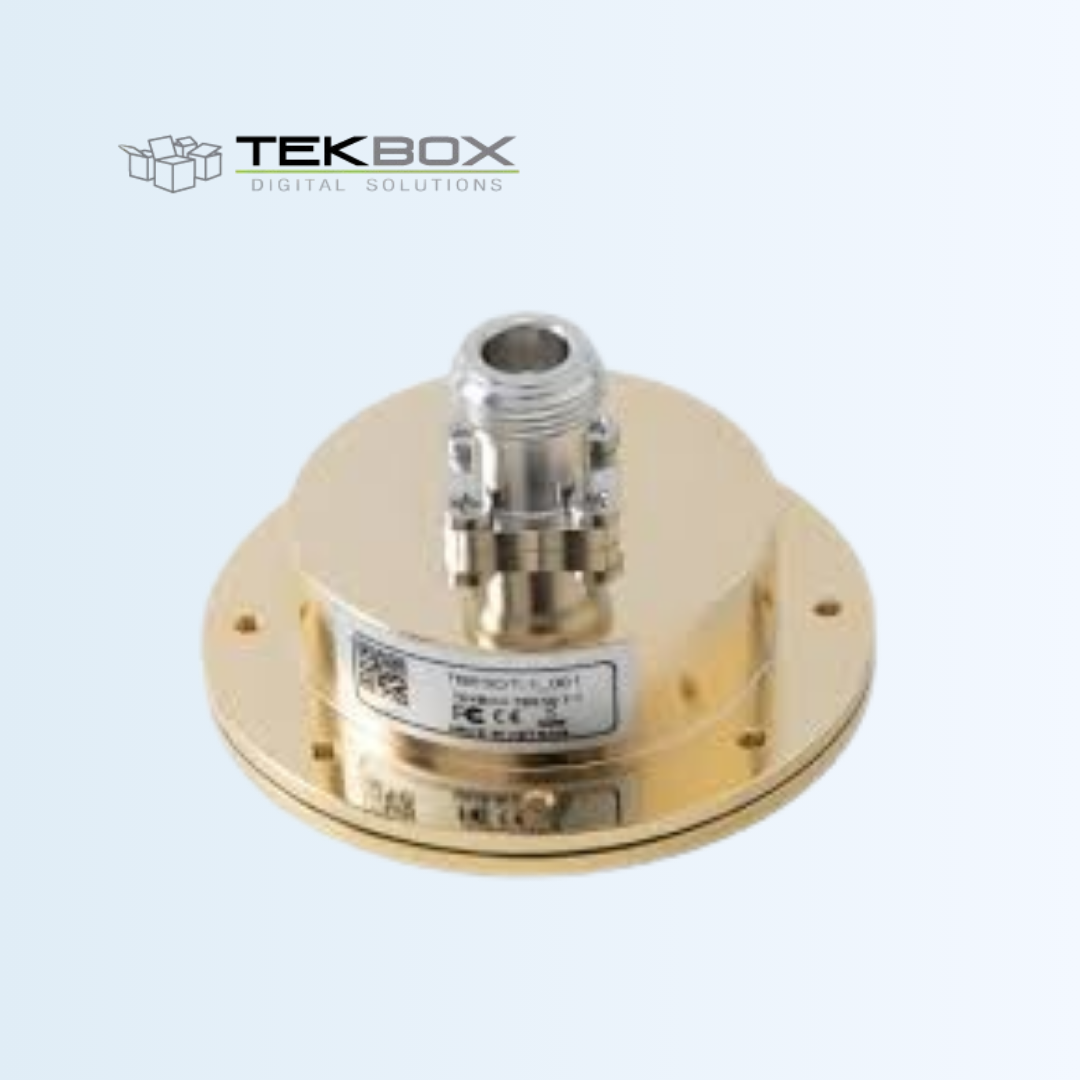

The TBESDT2 ESD Target is a conductive, precision-engineered target plate used to verify and calibrate Electrostatic Discharge (ESD) test systems. It provides a consistent and repeatable discharge surface for ESD immunity testing, helping engineers confirm that ESD guns and test setups are functioning correctly. The target is ruggedly built for repeated use in laboratories, EMC test facilities, and pre-compliance verification environments.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Compliance | IEC 61000-4-2 |
| Resistance | 1 Ω ± 1% |
| Transfer impedance | 1 V/A or 0.1 V/A with 20 dB attenuator |
| Frequency range | DC – 4 GHz |
| S21 flatness | ± 0.5 dB up to 1 GHz / ± 1.2 dB up to 4 GHz |
| Max. pulse amplitude | ± 30 kV |

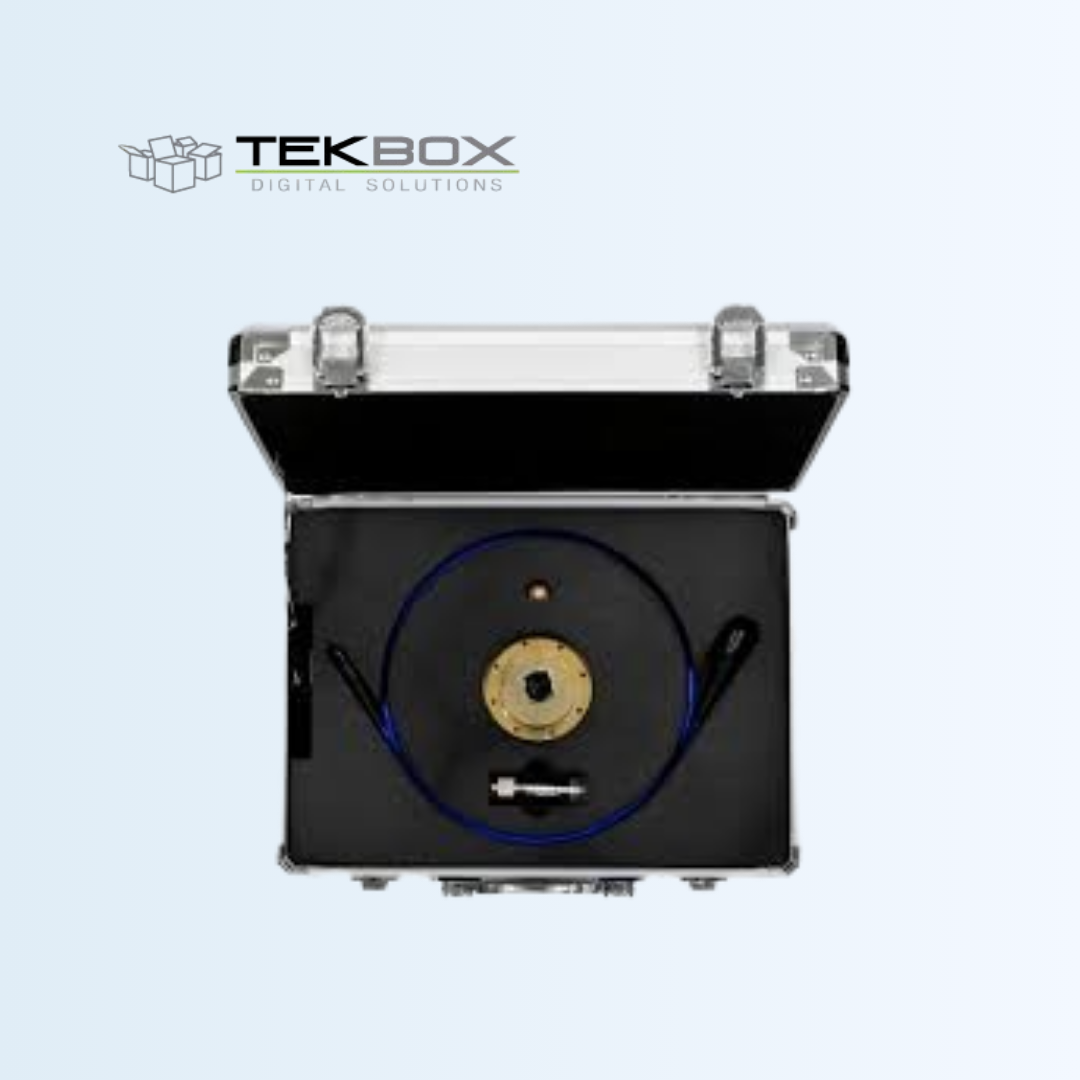

| Deliverables | TBESDT2 ESD-Target |
| Attenuator | 20 dB attenuator |
| Connector | N-Male to SMA-Male coaxial cable 100 cm, RM141 / SMA-Female to BNC-Male coaxial adapter |
| Material | Aluminium carrying case |
| ESD-Target weight | 0,5 kg |
| ESD-Target dimensions | D70 mm x H40 mm |
| Case weight | 2.1 kg |
| Case dimensions | 340 mm x 260 mm x 110 mm |
