- Designed for ESD system verification and calibration.
- Provides a defined discharge surface for ESD immunity testing.
- Helps ensure repeatable and reliable ESD test results.
- Rugged and conductive target construction.
- Suitable for lab and pre-compliance ESD setups.
- Easy to mount or position in standard ESD test environments.

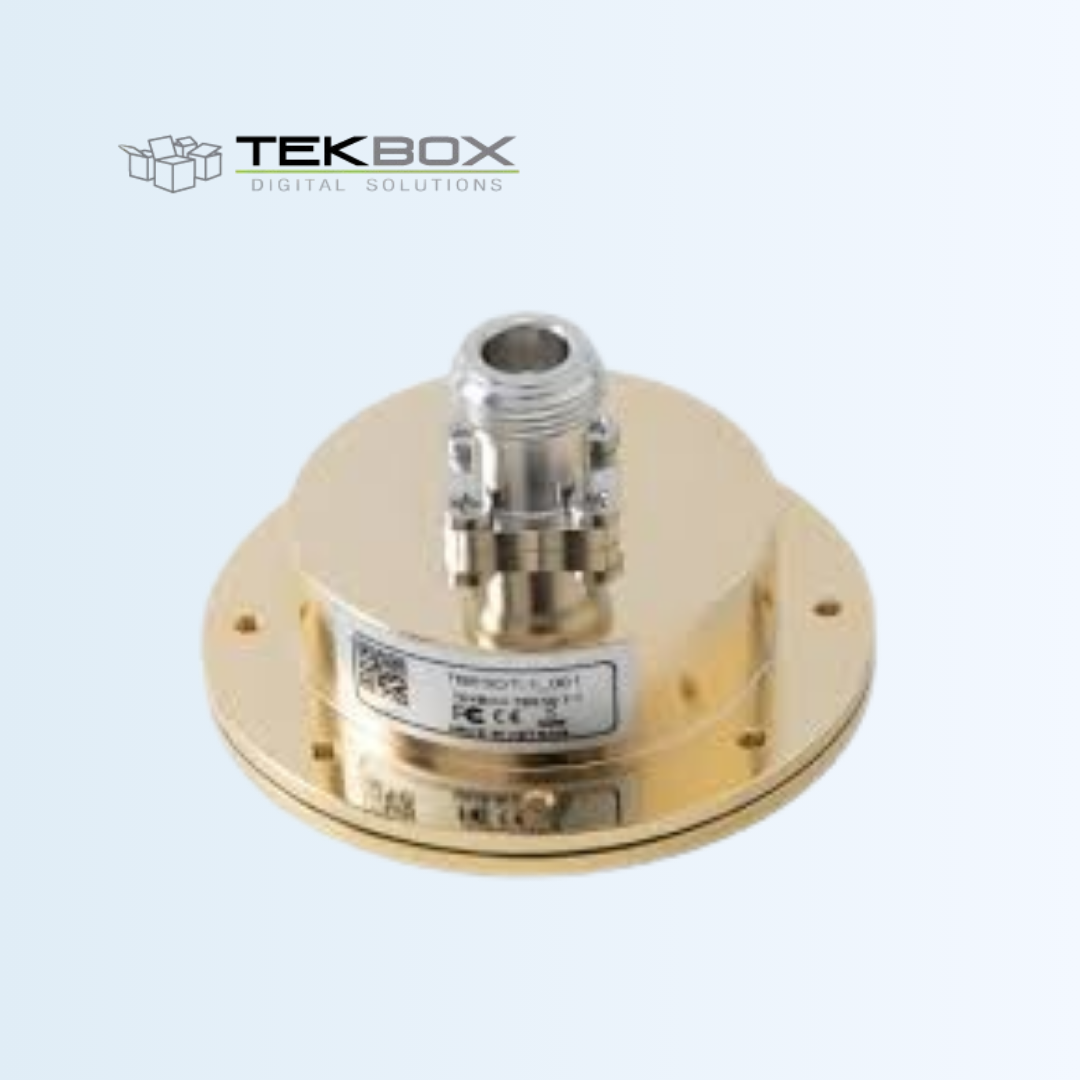

TBESDT1
2 Ohm ESD Target
The TBESDT1 ESD Target is a precision calibration target used to verify the performance and calibration of Electrostatic Discharge (ESD) test systems. It provides a defined, repeatable discharge point for ESD generators and test setups, ensuring consistent ESD immunity test results. The robust, conductive target surface and mounting provisions help facilitate reliable ESD coupling in laboratory and pre-compliance environments.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Compliance | IEC 61000-4-2 |
| Resistance | 2.08 Ω ± 1% |
| Transfer impedance | 2 V/A or 0.2 V/A with 20 dB attenuator |
| Frequency range | DC – 4 GHz |
| S21 flatness | < ± 0.5 dB up to 1 GHz / < ± 1.2 dB up to 4 GHz |
| Max. pulse amplitude | ± 30 kV |
| Deliverables | TBESDT1 ESD-Target |
| Attenuator | 20 dB attenuator |
| Connector | N-Male to SMA-Male coaxial cable, 100 cm, RM141 / SMA-Female to BNC-Male coaxial adapter |
| Material | Aluminium carrying case |
| ESD-Target weight | 0,5 kg |
| ESD-Target dimensions | D70 mm x H40 mm |
| Case weight | 2.1 kg |
| Case dimensions | 340 mm x 260 mm x 110 mm |
