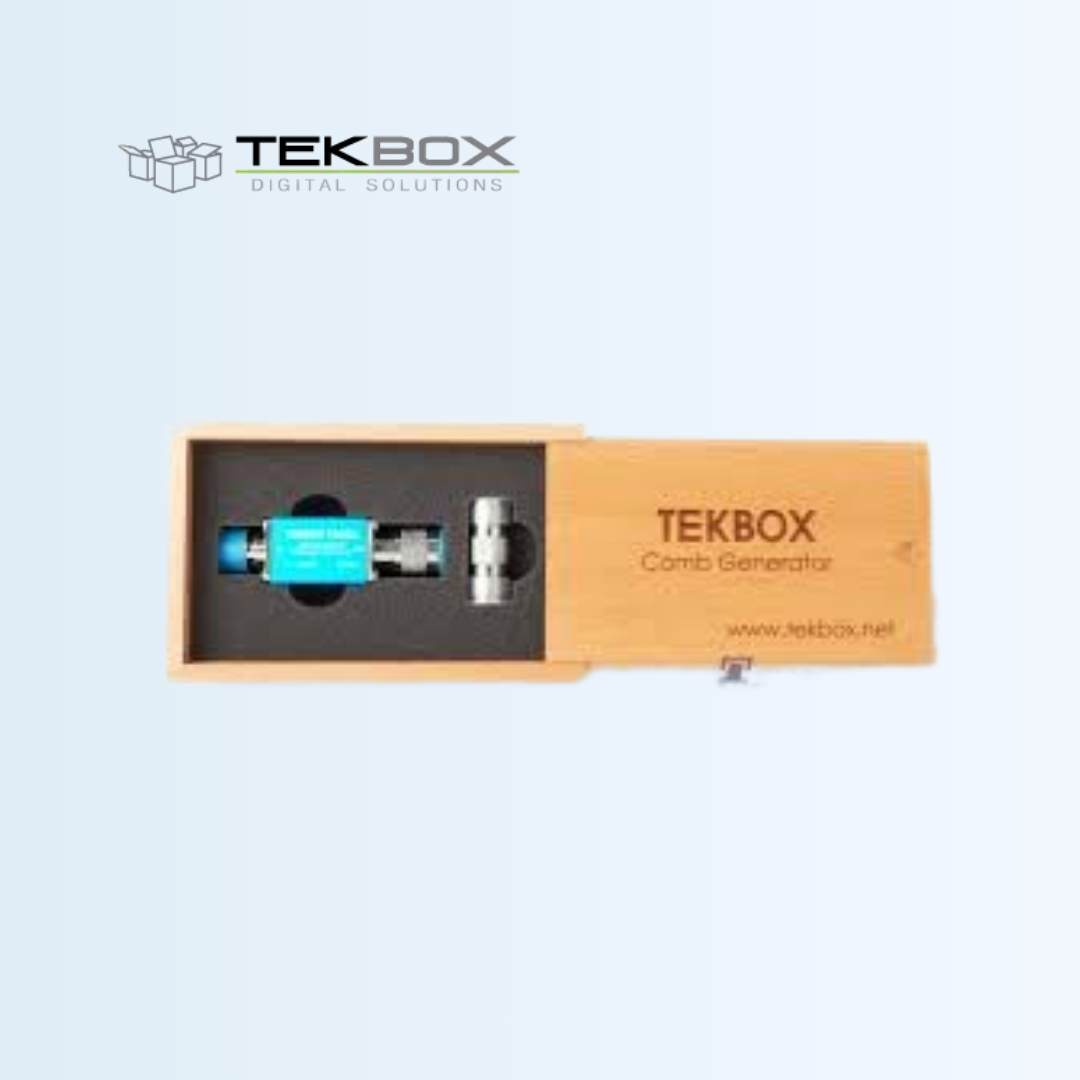

TBCG2

Comb Generator/Frequency Multiplier

The TBCG2 Comb Generator / Frequency Multiplier is a compact RF signal source designed to generate a wide spectrum comb by multiplying a lower base frequency input signal. It is typically used to create multiple harmonic components for testing broadband receivers, RF instrumentation, and measurement setups where multiple frequency tones are needed simultaneously. With a stable performance and broad frequency coverage, the TBCG2 helps engineers validate and exercise RF measurement chains, calibrate instruments, and troubleshoot frequency-dependent behaviors in systems ranging from pre-compliance environments to development labs.

Datasheet

Features

Key capabilities and advantages

▼

Generates a wide comb spectrum using frequency multiplication.
Accepts a low-frequency input signal and produces harmonics over a wide range.
Stable and repeatable output for RF testing and calibration.
Compact and rugged design suitable for lab and field use.
Useful for exercising broadband RF systems and verifying frequency responses.

Specification

Technical specifications and parameters

▼

Input Power	+10 dBm to +20 dBm; 25 dBm max.
Input Frequency	1 MHz to 350 MHz
Comb spectrum	1 MHz – 2.5 HGz
Input connector	N female
Output connector	N male
Dimensions	81 mm x 26 mm x 26 mm
Weight	96 g
