- Radiating comb generator with wide frequency coverage.
- Base comb starting frequency at 100 MHz.
- Built-in radiating antenna for reference emission field.
- Portable, battery-powered design.
- Improved spectral flatness for measurement checks.
- Compact and rugged enclosure.

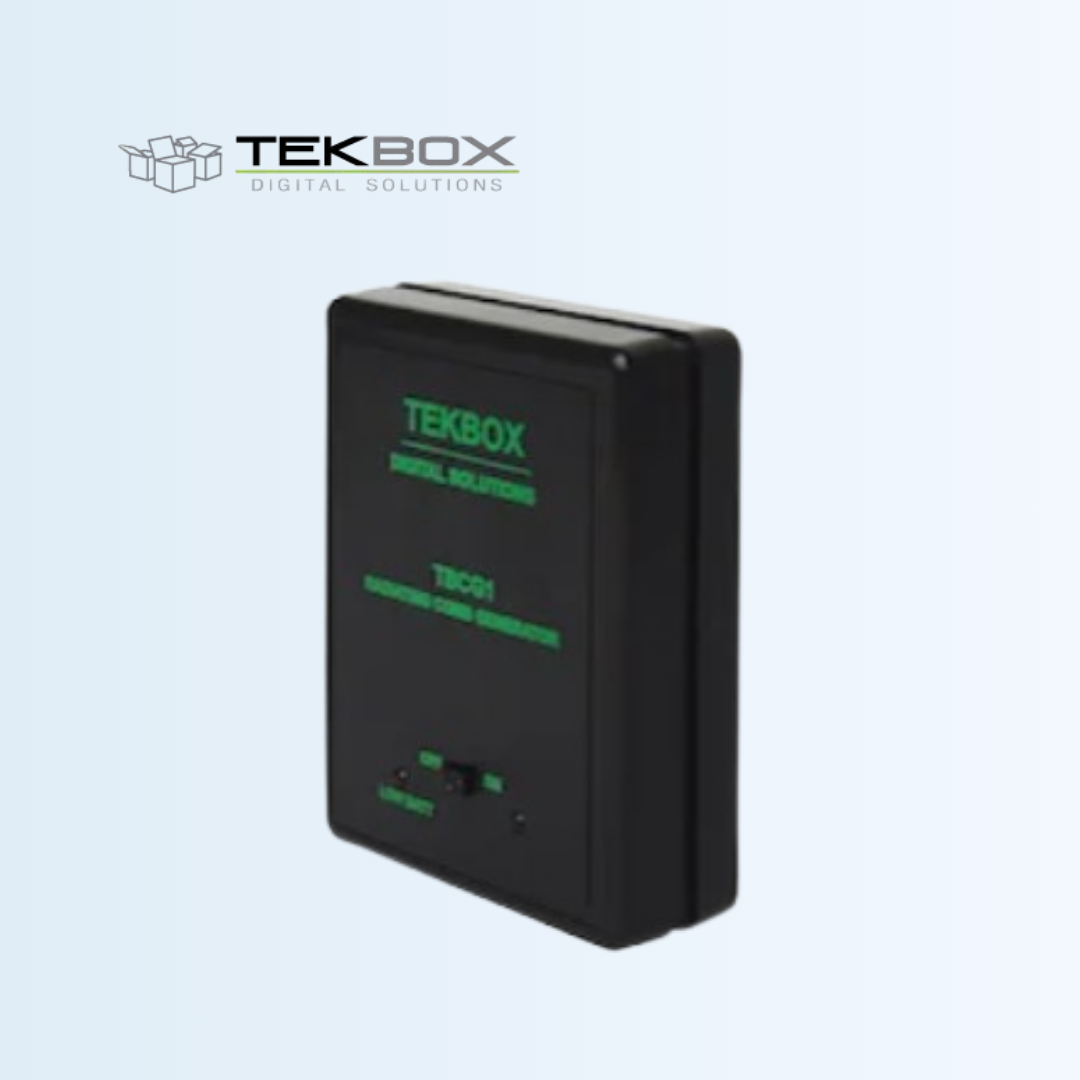

TBCG1-100MHz
Radiating Comb Generators
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Base frequency | 100 MHz |
| Characterized comb spectrum | 30 MHz – 6 GHz |
| Tolerance | +/- 2.5 dB |
| Power supply | 9V PP3 (E-block) alkaline battery |
| Current consumption | 175 mA |
| Dimensions | 80 mm x 61 mm x 27 mm |
| Weight including battery | 76 g |
