- Fixed-aperture RF current monitoring probe.
- Non-intrusive measurement of conducted RF currents.
- Wide frequency coverage for versatile EMC testing.
- Flat and stable response for reliable measurements.
- Robust design suitable for lab and field use.

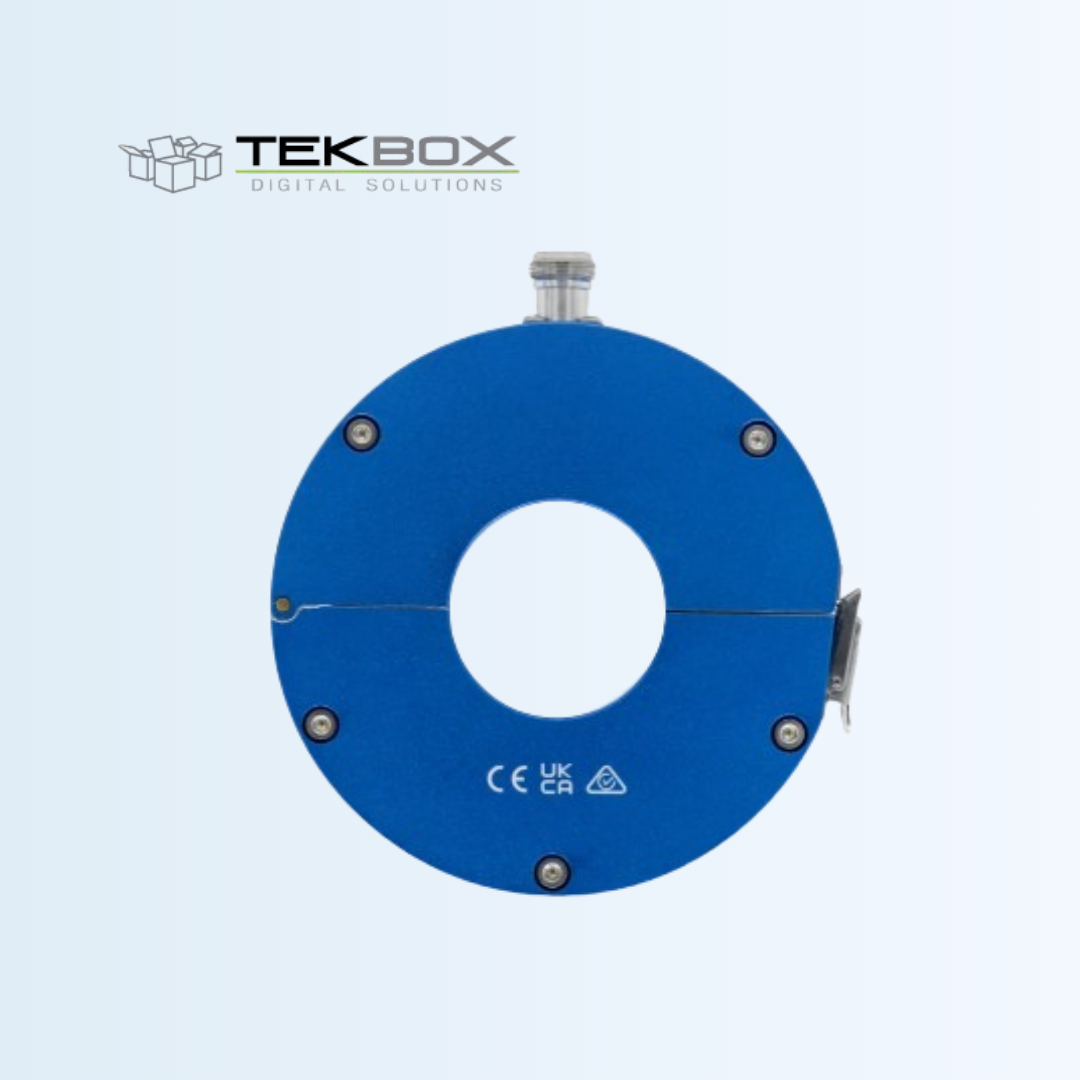

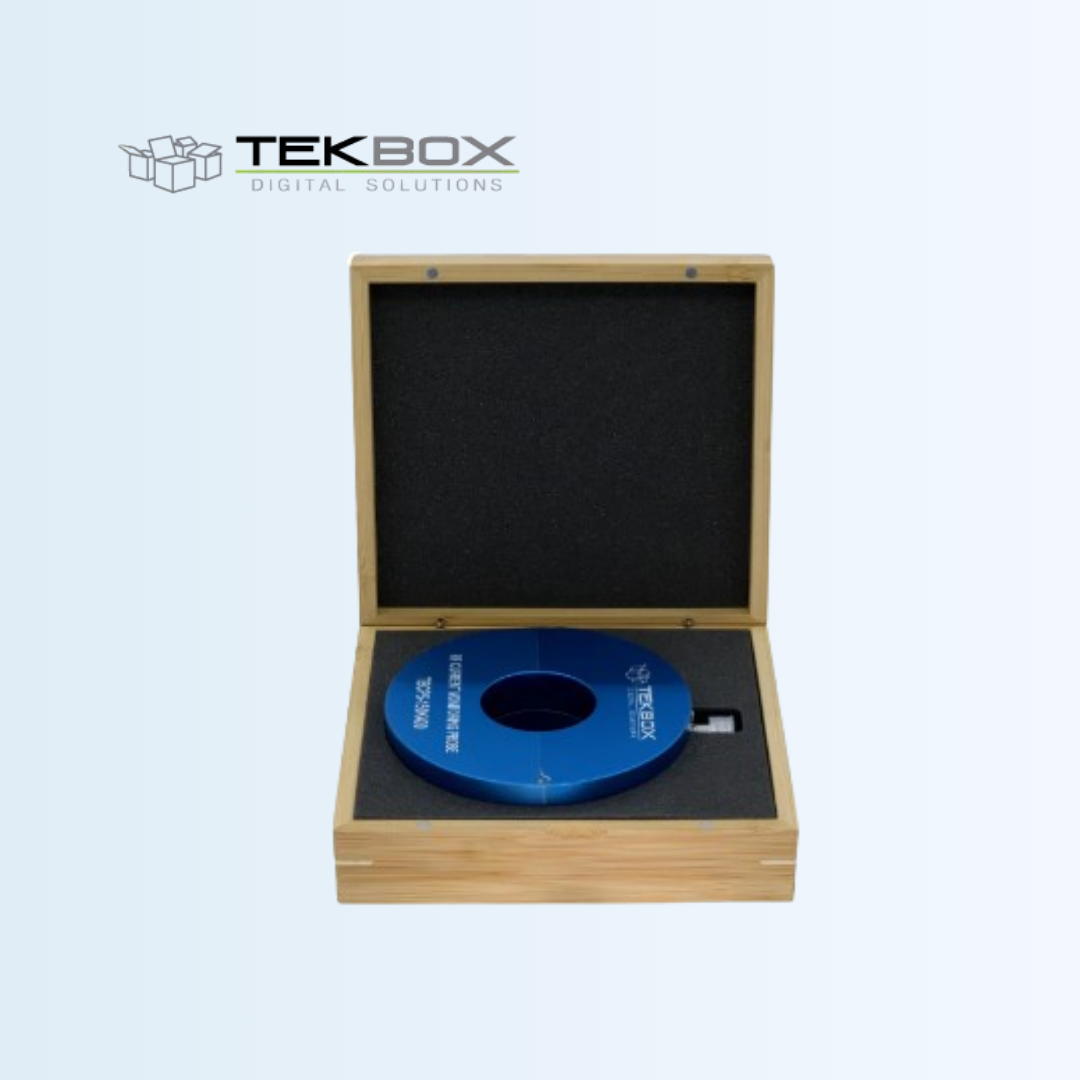

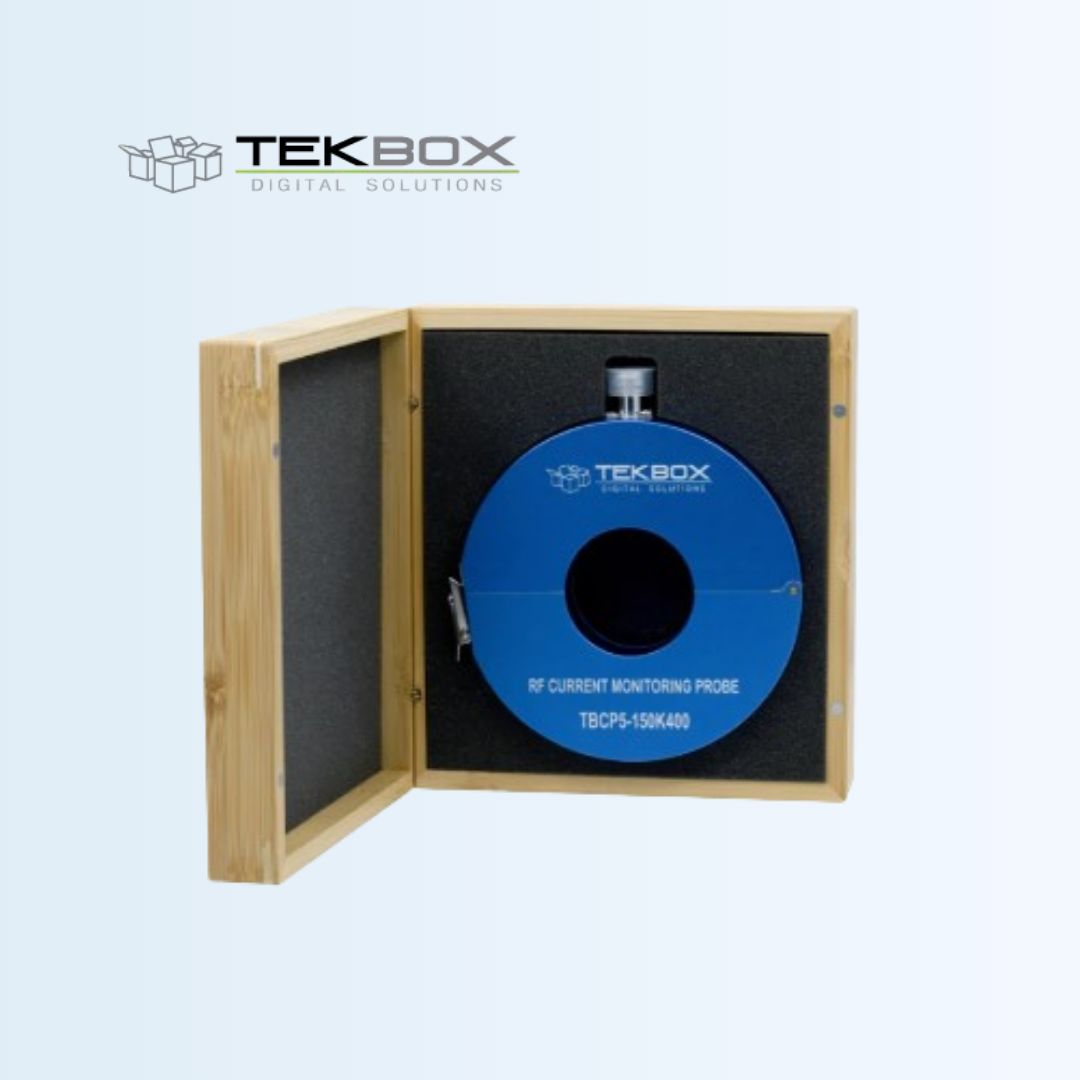

TBCP5-150K400
RF Current Monitoring Probe
The TBCP5-150K400 is a fixed-aperture RF current monitoring probe designed to measure conducted emissions by detecting the RF current flowing through a cable without disconnecting it. This probe covers a wide frequency range from very low to high frequencies, making it suitable for conducted emission testing, EMC troubleshooting, and signal analysis in both laboratory and field environments.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Characterized frequency range | 10 Hz to 500 MHz3 dB bandwidth: 150 kHz to 400 MHz, typ. |
| Transfer impedance | 11 dBΩ (3.5 Ω) in the flat region, typ. (50 Ω load impedance) |
| Insertion impedance | <400mΩ up to 400 MHz (series measurement method) |
| Shunt capacitance | <1 pF (concentric cable with ⌀ 10 mm) |
| Output impedance | 50 Ω (resistive matching) |
| Max. bias current (DC – 400 Hz) | 200 A (no influence on transimpedance) |
| Max. primary current (RF) | 2 A |
| Max. core temperature | 125 °C |
| Connector type | N female |
| Aperture diameter | 46 mm |
| Outside diameter | 124 mm |
| Height | 36 mm |
| Weight | 320 g |

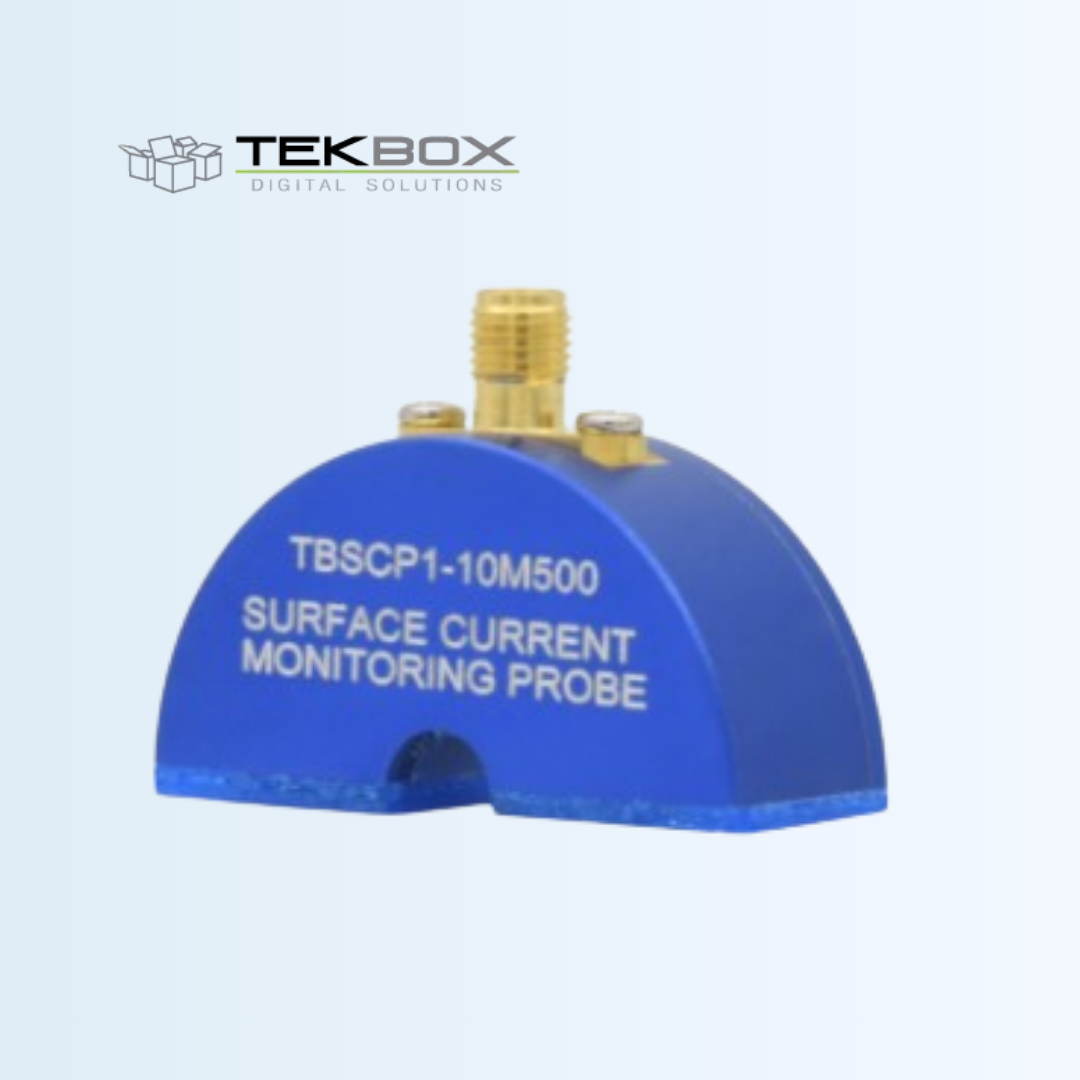

Other Products in RF Current Probes
