- 4 Parallel Measurement Channels
- Frequency Range: DC to 400 MHz
- Optional RF Input up to 24 GHz
- 7 ps Time Resolution
- Up to 13 Digits/s Frequency Resolution
- Up to 20 Msample/s Measurement Rate
- Gap-Free Zero Dead-Time Measurements
- Multi-Stop Time Interval Analysis
- Modulation Domain Analysis (MDA)
- Built-in Statistics & Allan Deviation
- 5" Color Touchscreen Display
- Ethernet, USB & WLAN Connectivity
- Remote Web & VNC Control

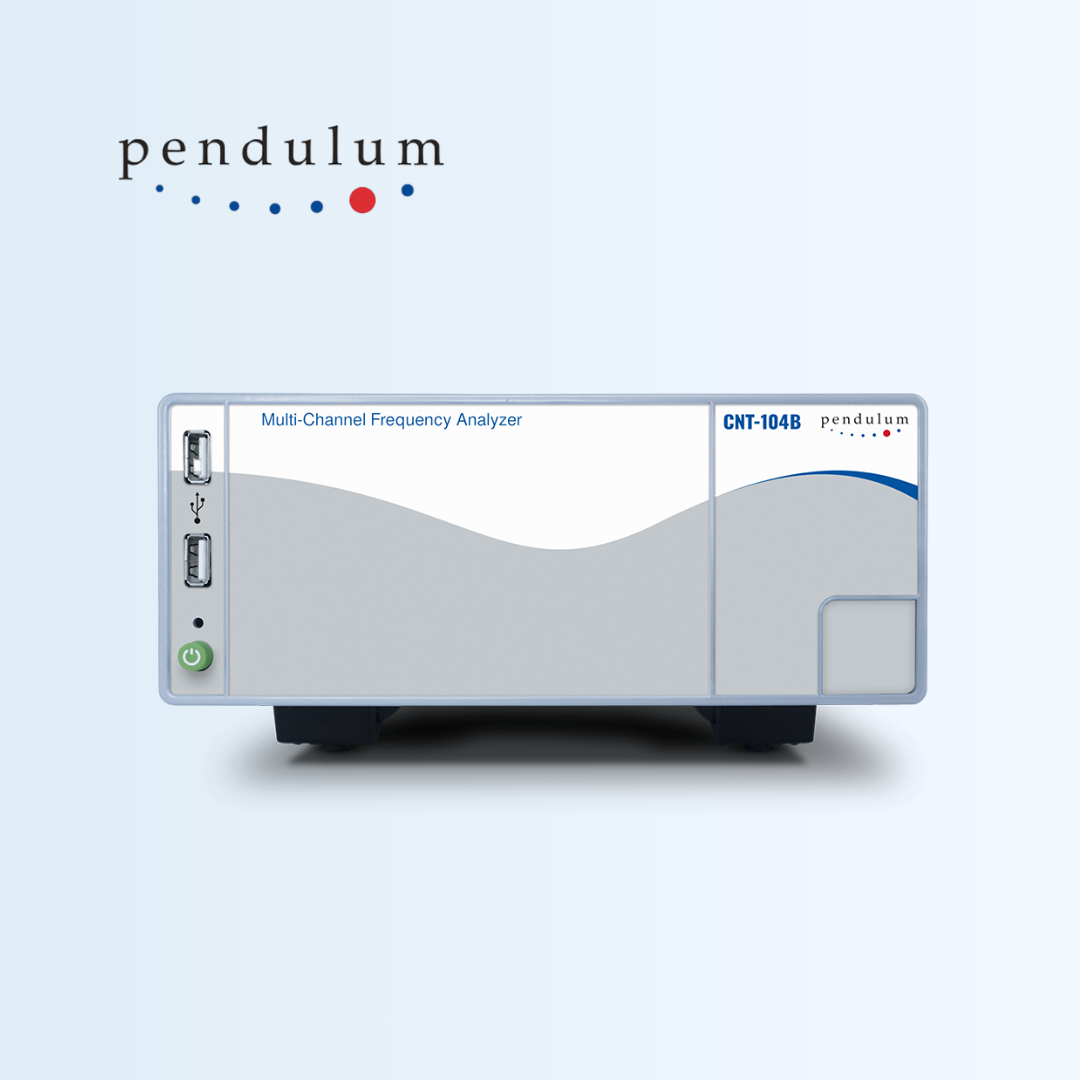

CNT-104B
Multi-Channel Frequency Analyzer
The Pendulum CNT-104B is a new affordable model optimized for test systems with blind panel and rear inputs. The multi-channel design enables simultaneous frequency measurements in parallel. One CNT-104B can replace four existing frequency counters in a test system at a lower cost per counter.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Channels | 4-channel Frequency Analyzer |
| Input Frequency Range | 400 MHz (standard) |
| Optional RF Input | 3 GHz or 10–24 GHz |
| Resolution | 7 ps |
| Measurement Speed | Up to 20 million measurements/s |
| Timestamping | Independent parallel gap-free timestamping on 4 channels |
| Control Interfaces | LAN, WLAN, USB, and GPIB |
| User Interface | Built-in web-based interface |
| Analysis Functions | Trend, Modulation, Distribution, Statistics, and ADEV |
| Timebase Options | High-stability OCXO oscillator |
| Design | Blind-panel with rear-panel inputs |
| Multi-Stop Capability | 1 Start + 3 Stop time interval measurements |
| Application | Automated test systems, metrology, calibration, telecommunications, aerospace, and defense applications. |
