- Low-noise and long-distance distribution of reference frequencies
- Drive up to 2 km of optical fiber
- Eliminate ground current loop problems
- Low-loss distribution
- No noise and interference pick-up
- Easy to install – flexible, lightweight and small-diameter cable
- EMP-proof Flexible solution
- Economical solution
- RF → FO conversion and FO → RF conversion

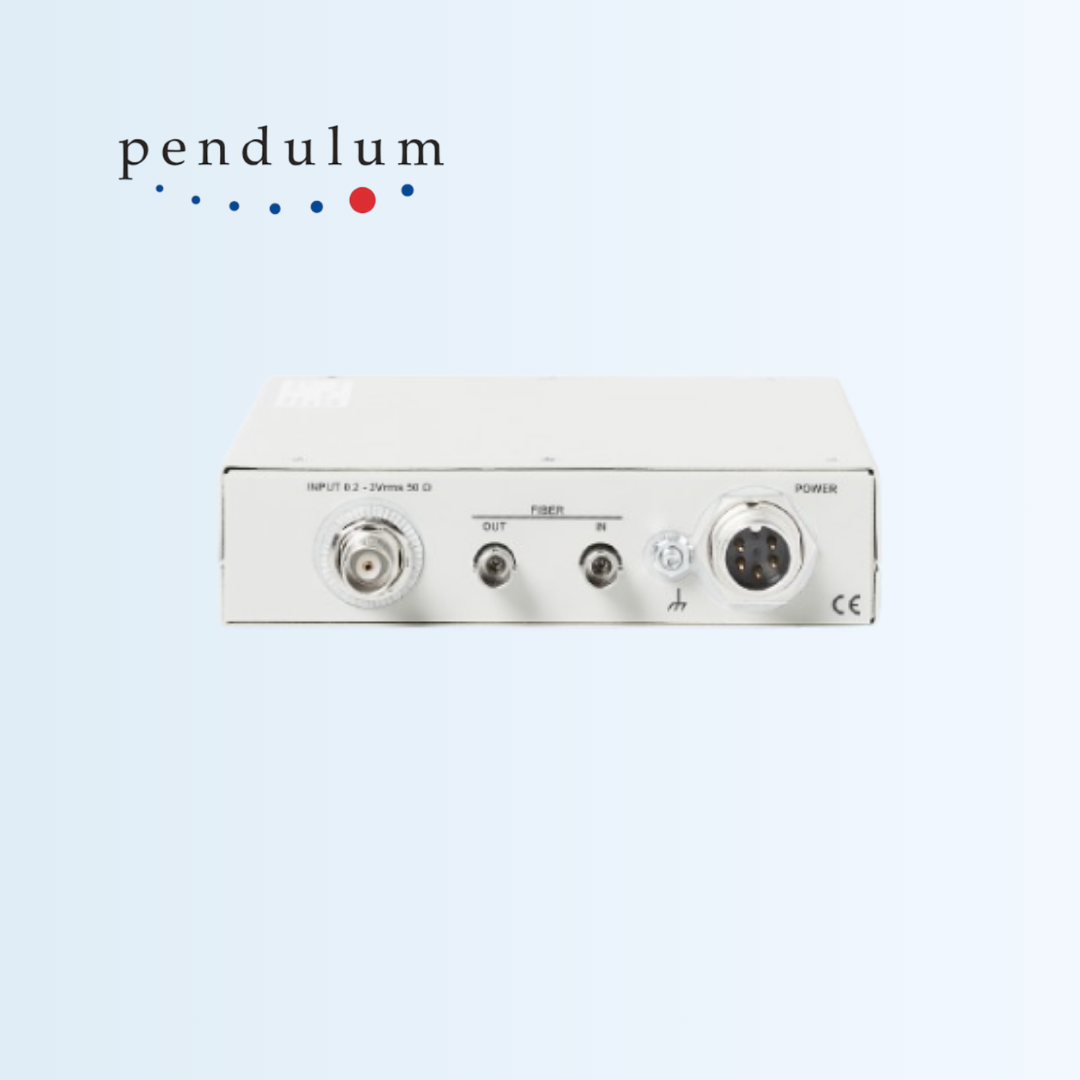

DA-36
Compact Point-to-Point Distribution Amplifier for reference frequency signals
The Pendulum DA-36 frequency Distribution Amplifi er offers an economical solution to the problem of low-jitter transfer of frequency reference signals over longer distance. Whether the need is to distribute between remote buildings, fl oors or rooms, or whether the need is a big point-to-multipoint system with thousand of receivers, or just one single point-to-point distribution, DA-36 will do the job.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Electrical | BNC coax connector |
| Optical | ST connector |
| Priority (DA-36) | Optical input signal has priority |
| Frequency | 10 MHz |
| Impedance | 50 Ω nominal |
| Amplitude (BNC input) | 200 mVrms to 2Vrms |
| Electrical | BNC coax connector |
| Optical | ST connector |
| Period-to-period Jitter | <(50 ps + optical jitter) |
| Amplitude (coax output) | 1Vrms nominal |
| Fiber type | Multimode fi ber |
| Connector type | ST |
| Max length | 2 km |
| Max optical attenuation | <3.5 dB |
