- Extract signals with high precision
- Measure signals obscured by noise with more than 120 dB dynamic reserve
- Select from advanced demodulation modes
- Internal or external demodulation modes including PLL (phase-locked loop)
- Dual-phase demodulation capability
- Extended functionality with built-in PID controller
- Custom configuration and data acquisition
- Built-in probe points for signal monitoring and data logging
- Choose your coordinate mode
- Toggle between rectangular (X/Y mode) or polar coordinates (R/θ mode)
- Integrated 2-channel oscilloscope
- Data logger up to 1 MSa/s
Lock-in Amplifier

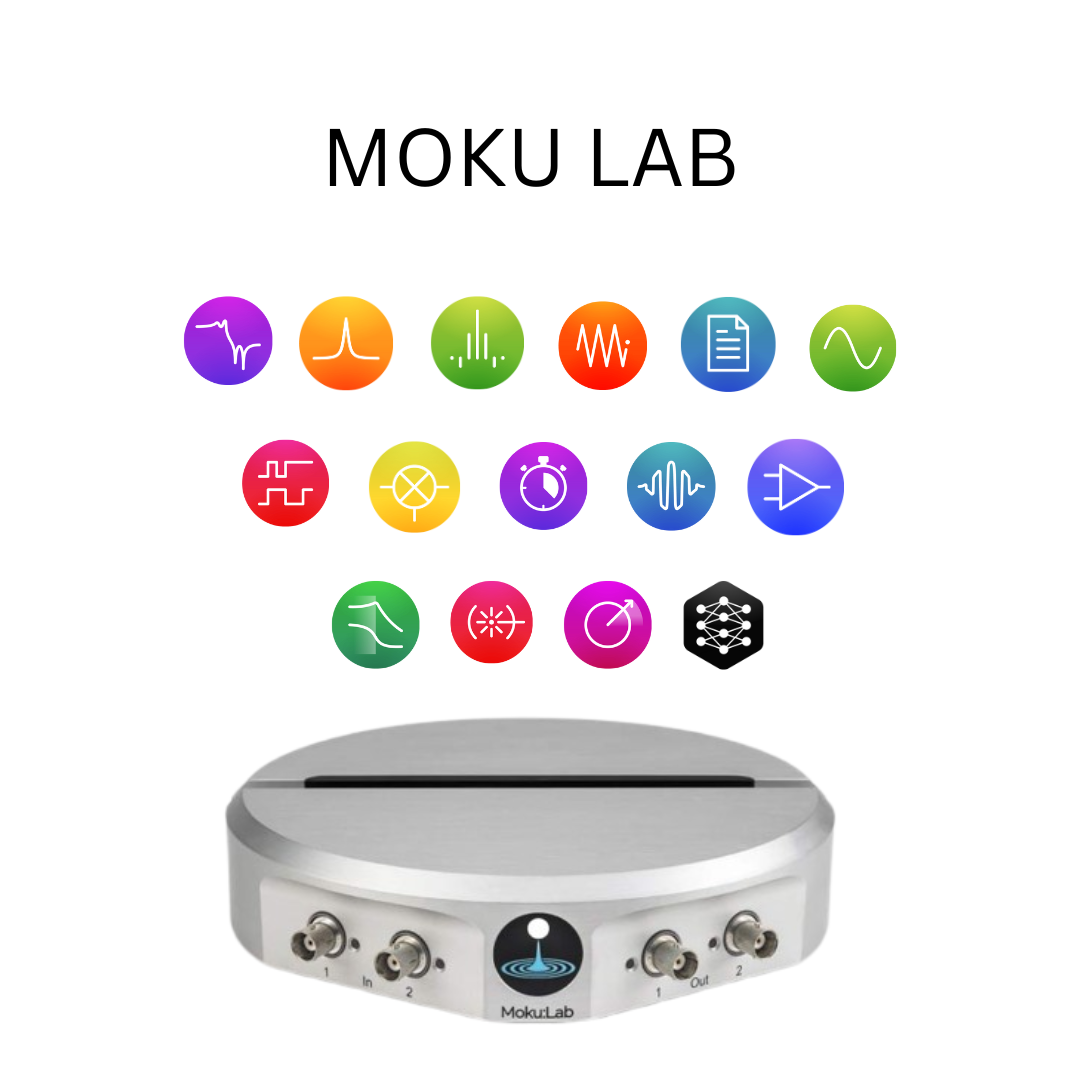

Moku:Lab''s digital Lock-in Amplifier supports dual-phase demodulation (XY/Rθ) from DC to 200 MHz, with more than 120 dB of dynamic reserve. It also features an integrated 2‑channel oscilloscope and data logger, enabling you to observe signals at up to 500 MSa/s and log data at up to 1 MSa/s.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Input Voltage Noise | 30 nV/√Hz |
| Dynamic Reserve | 120 dB |
| Demodulation | Frequencies ranging from 1 mHz to 200 MHz with 3.55 μHz resolution |
| Adjustable Time Constant | From 32 ns to 0.537 s |
| LO Output | Up to 200 MHz with variable amplitude |
| Output Gain Range | -80 to +160 dB |
| Preset Waveforms | Phase shift precision of 0.001° |
| Intuitive User Interface | Block diagram view of the digital signal processing chain |
| Input Impedance | 50 Ω / 1 MΩ |
| Filter Roll-off | 6, 12, 18, or 32 dB/octave |
| Ultra-fast Data Acquisition | Snapshot mode up to 500 MS/s, continuous mode up to 1 MS/s |
