- Three models with 2, 3 and 4 outputs.
- Each output is isolated.
- High setting resolution. (Voltage: 1 mV, Current: 0.1 mA).
- Tracking control in all channels.
- Simultaneous display of all channel statuses.
- ON/OFF delay of each output.
- Simple series/parallel connection between channels. (CH1 & CH2).
- LAN (LXI Compliant)/USB/RS232C standard interface.
- Turning output on and off using an external contact.
- Remote sensing function.
- Key lock, Preset memory function. (3 slots).
- High quality LCD panel for improved visibility.
- Delay Function.
.png)

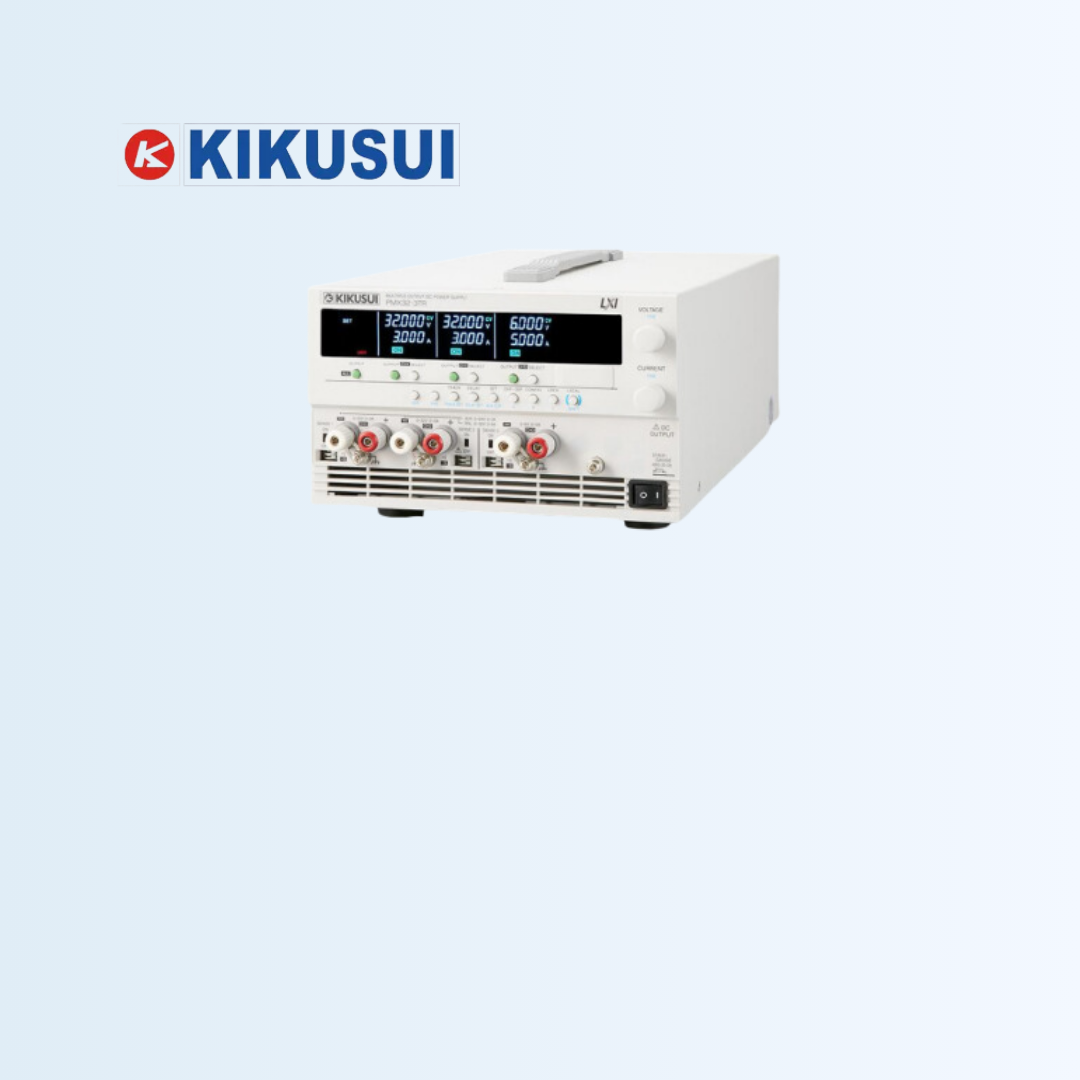

PMX-Multi Series
Compact Multi-Output DC Power Supply(CV/CC) 3 Models
The PMX-Multi series is a multi-channel DC power supply with isolated outputs on each channel. The PMX32-3DU (2ch), PMX32-3TR (3ch), and PMX32-2QU (4ch) are all capable of simultaneous output in all channels and come with an output tracking feature. Also, channels 1 & 2 of each model can be easily connected in either series or parallel to increase the output voltage/current at the press of a button. LAN (LXI Compliant), USB, and RS232C are included as standard digital interfaces for easy system integration. The PMX-Multi benefits from a low noise, series regulator design that makes this series the perfect choice for experiments involving transistors, IC circuits, and op amp circuits as well as R&D and production line applications.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| PMX32-3DU | 2ch, Rating: 32V/3A, 32V/3A |
| PMX32-3TR | 3ch, Rating: 32V/3A, 32V/3A, 6V/5A |
| PMX32-2QU | 4ch, Rating: 32V/2A, 32V/2A, 18V/2.5A, 18V/2.5A |
