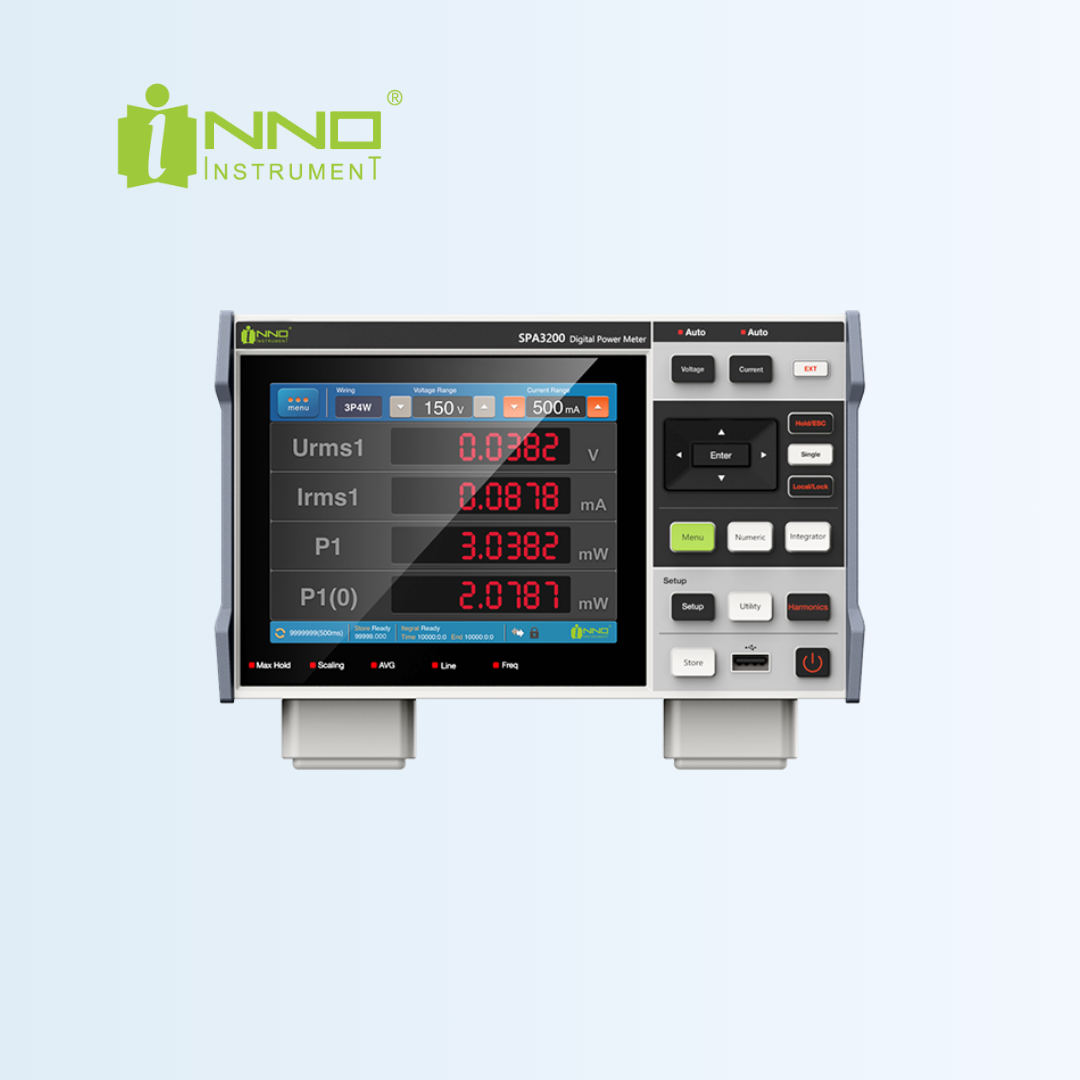

SPA3200 Digital Power Meter

3-channel Digital Power Meter with LCD Touchscreen

Features

Key capabilities and advantages

  • The LCD touchscreen ensures clear pixel representation, vibrant colors, and realistic images.
  • SPA3200 Digital Power Meter can measure all AC, DC parameters.
  • SPA3200 enables users to save configuration files, facilitating the swift loading of previously saved configurations.
  • SPA3200 supports a variety of computation functions, enabling the display of efficiency, peak factors, arithmetic operation results, and average active power.
  • INNO PA Viewer is a PC application software that allows users to connect their devices to a PC through a network interface, enabling remote control from the PC.

Specification

Technical specifications and parameters

Measurement Accuracy ± (0.1% of reading + 0.05% of range)
Voltage range 15V - 1500V
Current Range 1A - 50A
Measurement Bandwidth DC, 0.5Hz-100KHz
Resolution 16 bit
Channels 3
Internal Storage 4 GB
Programming and Interfaces USB, Ethernet, RS-232, GPIB (optional), D/A output
