- Provides accurate fiber characterization with trace analysis and event mapping to identify faults, splices, and connectors along the fiber link.
- Integrated Visual Fault Locator for quick fault detection and Optical Power Meter for measuring optical signal levels and ensuring network performance.
- Compact and portable, making it easy to carry and ideal for field operations.
- Intuitive menu system and display for efficient operation and quick access to testing functions.
- Supports multiple wavelengths for comprehensive fiber network evaluation.

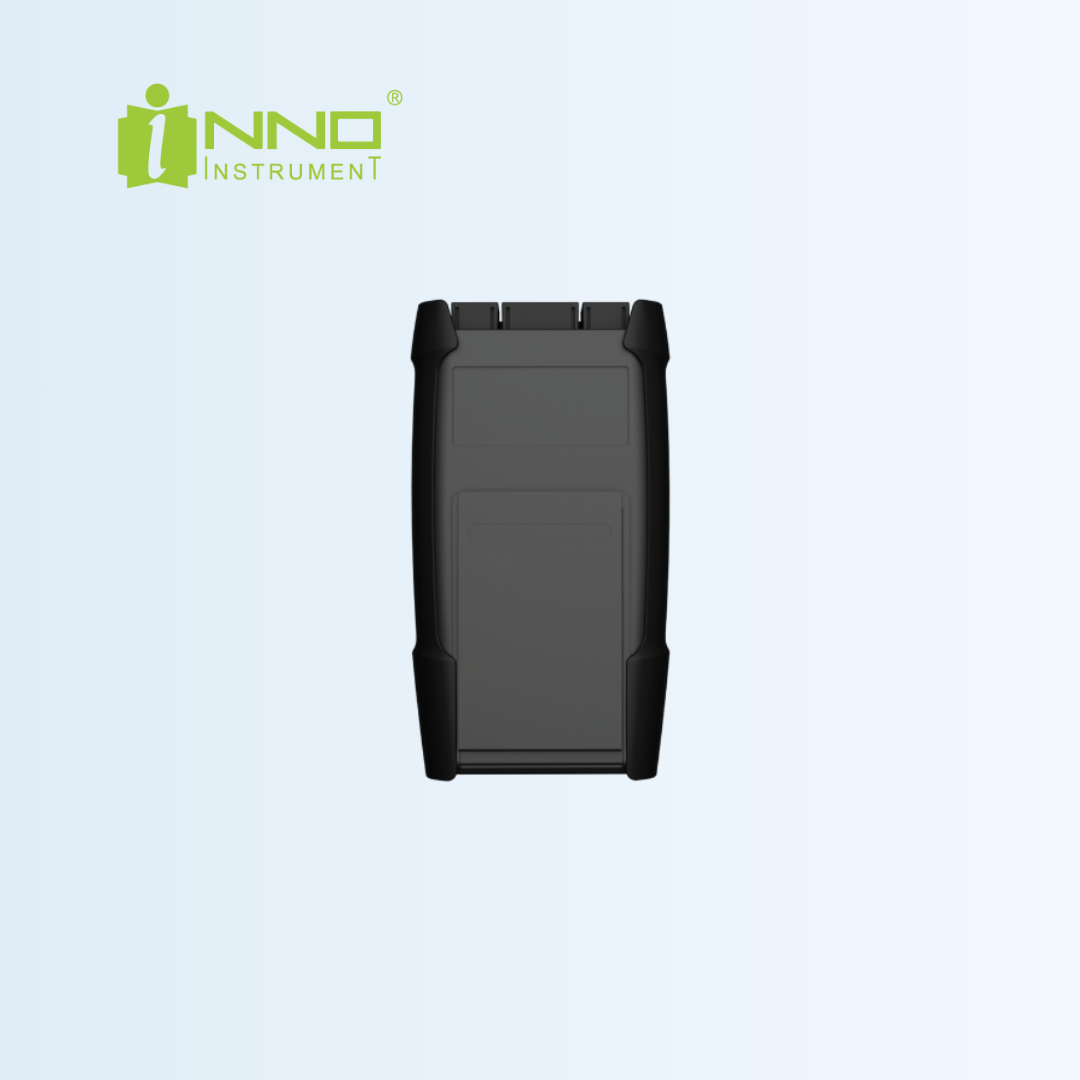

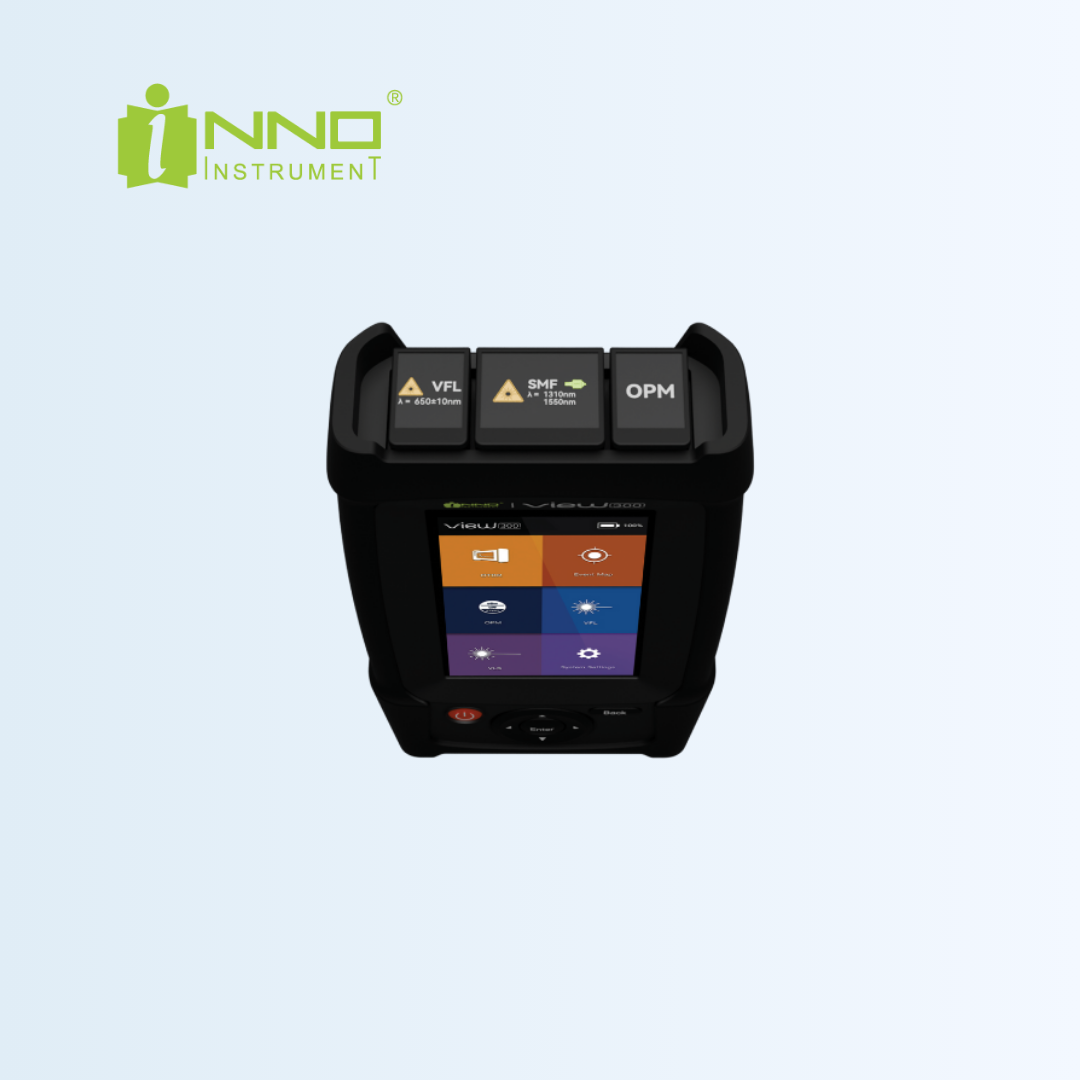

View 300
Lightweight, compact OTDR
The INNO Instrument View300 is a compact, all-in-one OTDR built for the demands of modern fiber deployment. With its 4.3-inch touchscreen, intuitive interface, and advanced Event Map, it simplifies testing by automating analysis and displaying results in a clear visual format. Built-in tools – including a visual fault locator, optical power meter, and light source – cover a wide range of tasks from troubleshooting to performance verification. Lightweight, precise, and field-ready, the View300 delivers fast, reliable results for technicians of any experience level.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Display Size | 4.3" |
| Distance Units | m / km / mile / ft |
| Range Settings | 28 / 26dB (1310 / 1550nm) |
| Pulse Widths | 3ns / 5ns / 10ns / 20ns / 30ns / 50ns / 80ns / 160ns / 320ns / 500ns / 800ns / 1us / 2us / 3us / 5us / 8us / 10us |
| Linearity | ±(1m + Sampling Resolution + 0.005% * Test Distance) |
| Resolution | 0.03m ~ 4m |
| Sampling Points | 64,000 points |
| Size (HWD) | 180 x 95 x 40mm |
| Weight | 472g |
