- Built in IoT & GPS, enables real-time tracking of the splicer, cloud data synchronization, and remote monitoring of splicing activities.
- High magnification, provides clear, detailed visualization of fiber cores, ensuring accurate alignment and low splice loss.
- Intuitive user interface, simple and user-friendly GUI reduces setup time and makes operation straightforward for both new and experienced users.
- Responsive color touch display allows quick access to functions, settings, and fiber inspection images for efficient workflow.

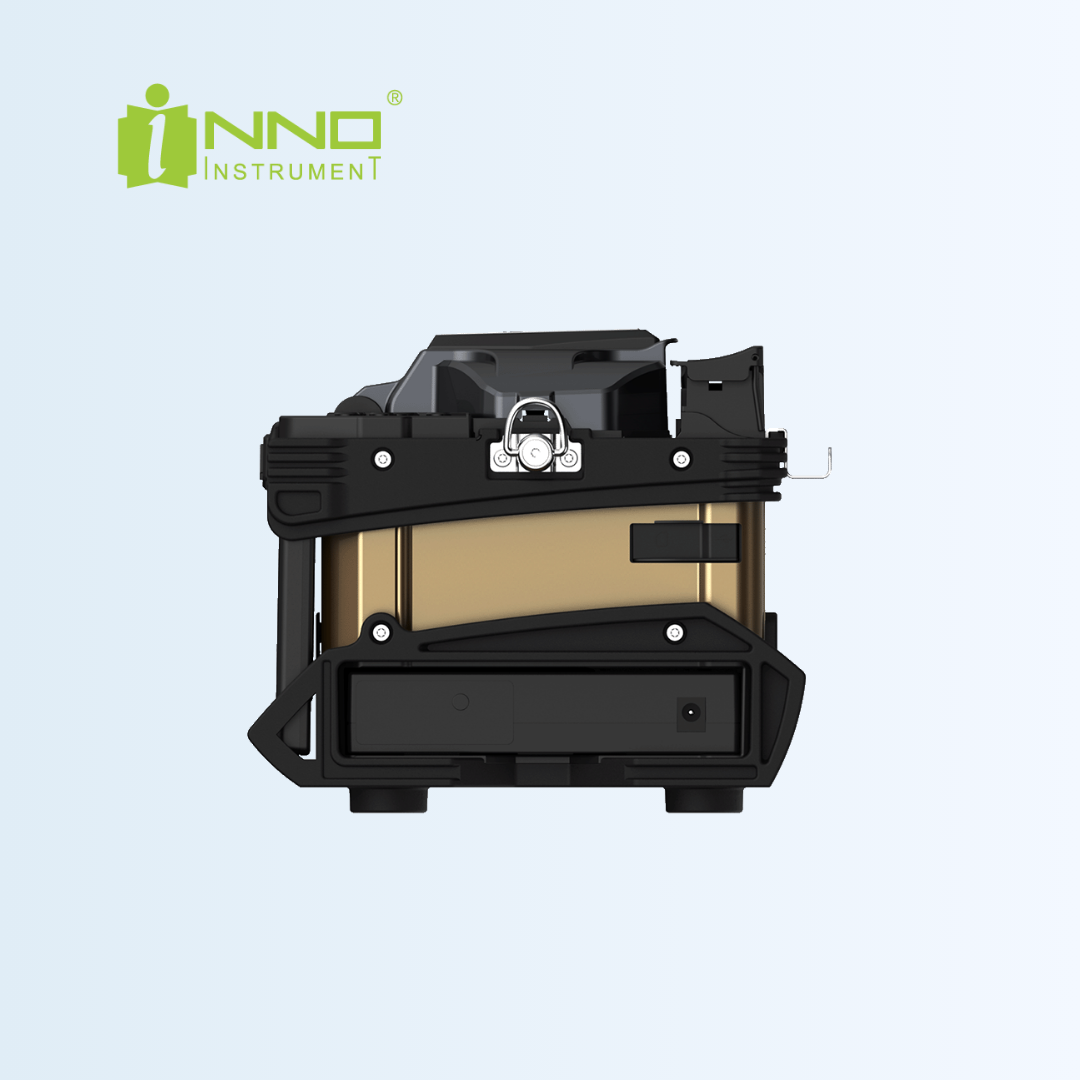

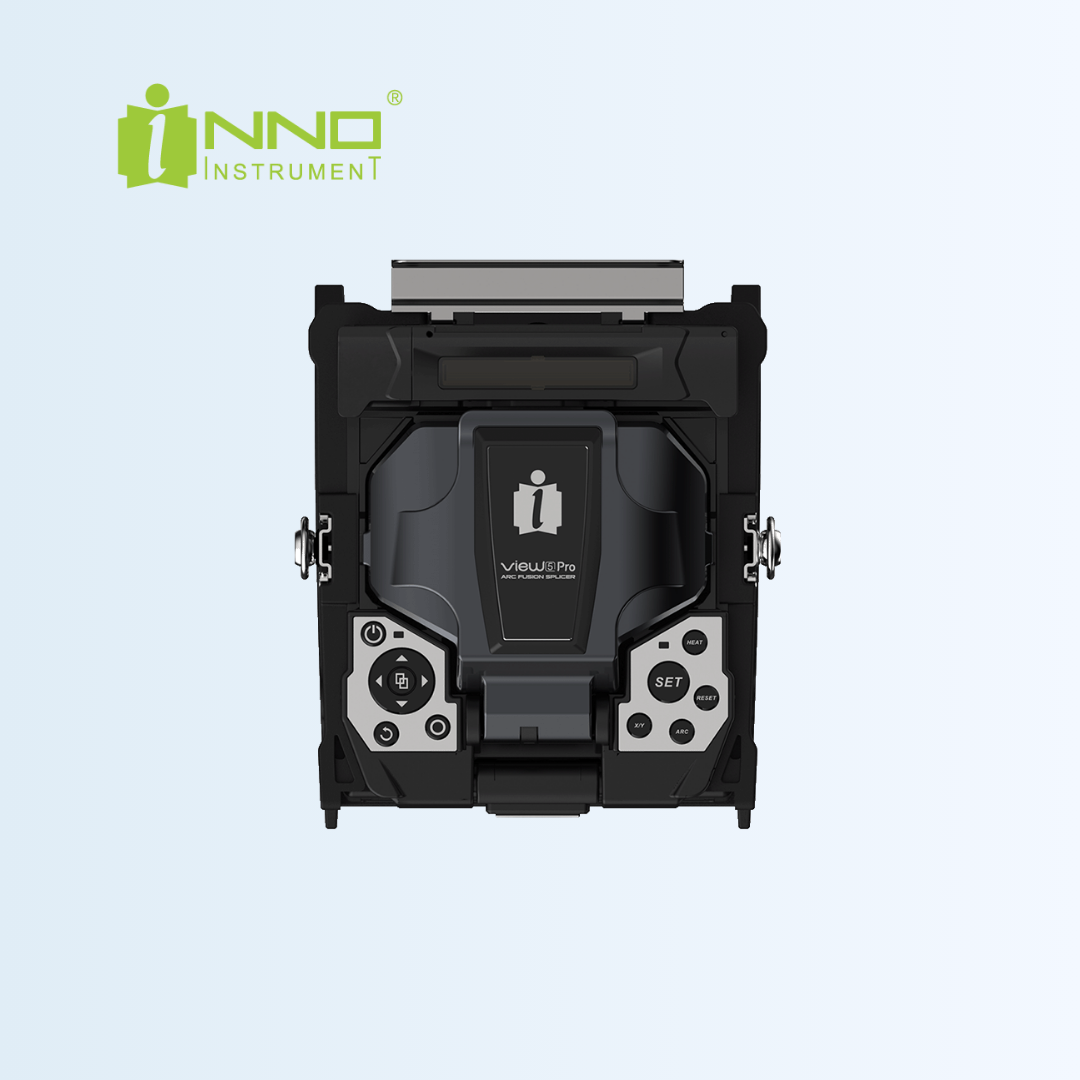

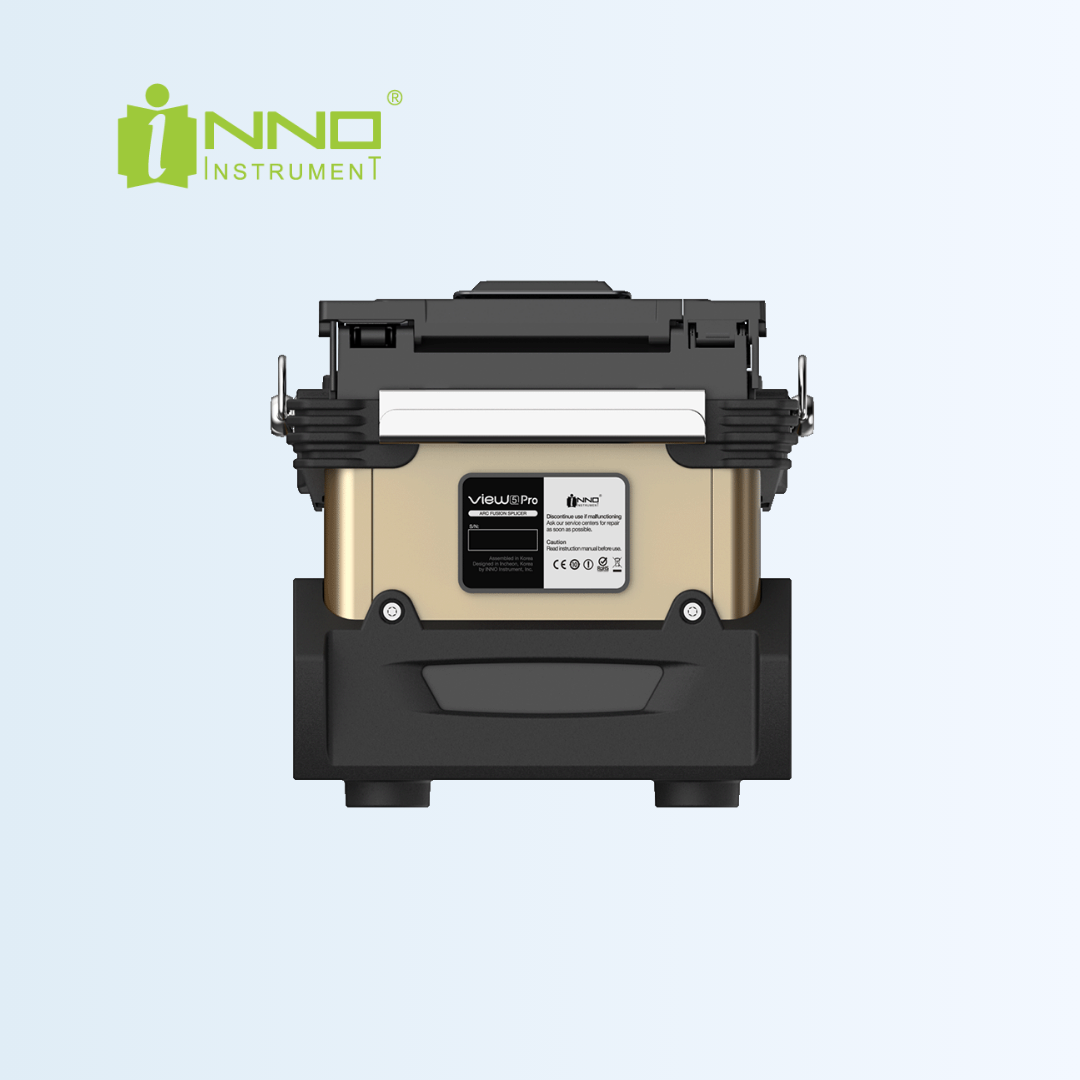

View5 Pro
A top-performing core-alignment splicer with the highest fiber image magnification
VIEW5 PRO’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world’s highest magnification of 520x. The fusion splicer is equipped with built-in IoT module that connects to the INNO’s View Pro Cloud Management System for real-time operation and management online. This innovative cloud-based solution is designed to create the most advanced and yet most simplistic splicing work experiences ever.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Splicing Technology | Core alignment |
| Splicing Time | 7 seconds |
| Heating Time | 15 seconds |
| Typical Loss | SM: 0.02dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.02dB |
| Size (HWD) | 151H x 149W x 177D |
| Weight | 2.21kg |
