- One step operation, simplifies the cleaving process with a single action, reducing setup time and increasing efficiency.
- Durable design allows for up to 60.000 cleaving cycles, making it ideal for high-volume use.
- Digital counter, tracks the number of cleaves performed, helping monitor tool usage and maintain performance.
- Designed for low maintenance, reducing the need for frequent servicing and enhancing reliability.

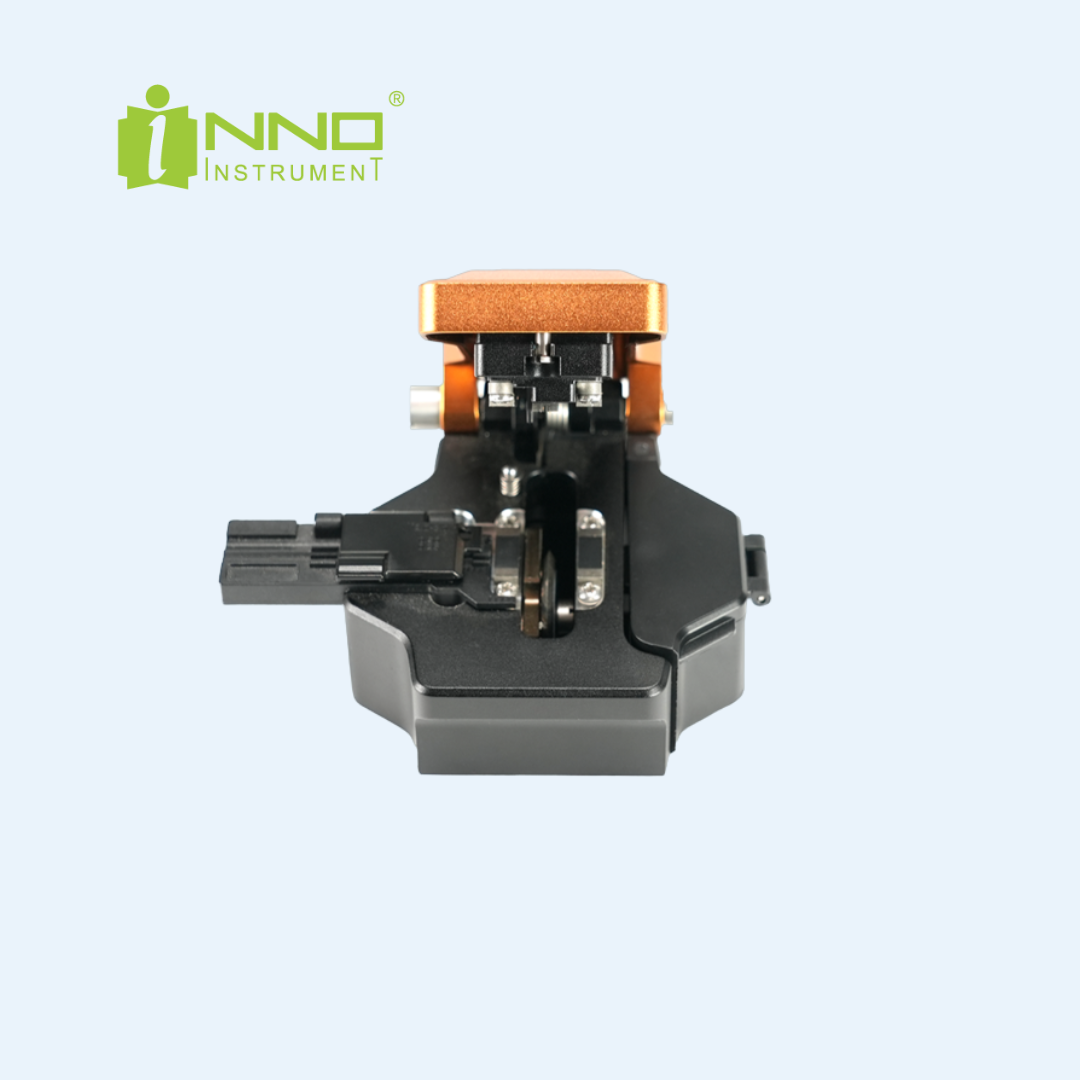

V10 Pro
FULLY AUTOMATIC, PRECISION OPTIC FIBER CLEAVER
V10 Pro aims to be the most accurate and advanced cleaver produced in the market. The cleaves are made in a single, swift action (One-step) with fully automatic blade rotation after each cleave to ensure the best cleave results are produced.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Type | Single fiber and Ribbon fiber |
| Cleave Length | 5mm ~ 24mm (coating diameter ≤ 250μm) screen / button 10mm ~ 20mm (coating diameter >250μm) ribbon (multi) |
| Typical Cleave Angle | Singl 0.5 degrees |
| Typical Blade Life Span | Total 60,000 fiber cleaves (2,500 cleaves per each point, total 24 points) |
| Fibre Holder | Universal holder, replaceable holder |
| Dimensions Size (HWD) | (Height) 63mm X (Width) 103mm X (Depth) 76mm |
| Weight | 300g (with Auto Trash bin)/ 250g (without Auto Trash bin) |
