- Broadband Antennas
- High Gain Preamplifiers
- Near Field Probe Kit
- Comb Generators
- Carrying Case
ANK-318
Antenna Kit

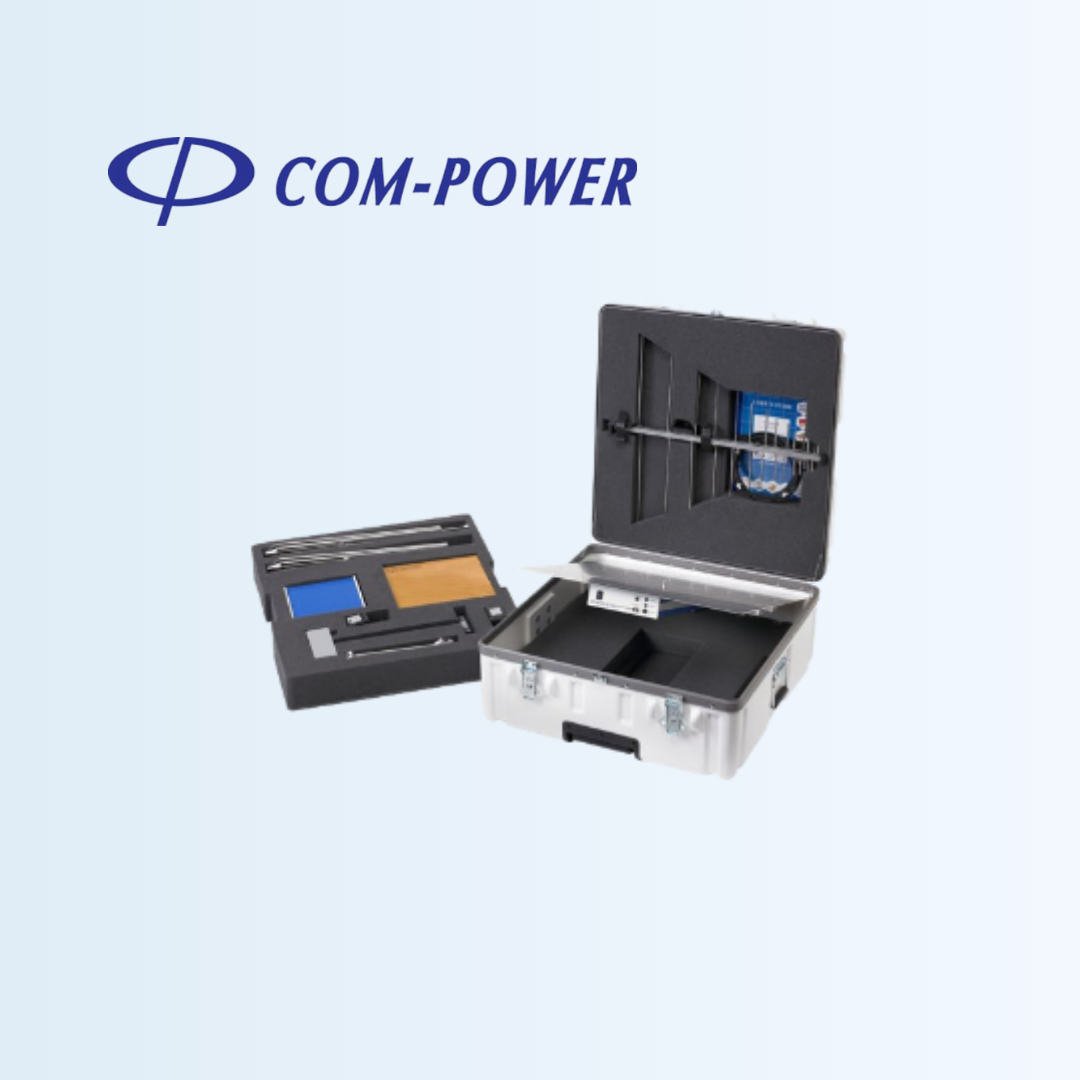

The ANK-318 is one of the five portable antenna kits offered by Com-Power. This kit includes the necessary antennas, preamplifiers and measurement cables for pre-compliance or qualification level radiated emissions testing in the 30 MHz to 18 GHz frequency range, as well as two Comb Generators for test site verifications and a near-field probe set for troubleshooting EMI problems. The entire kit is smartly arranged within a single, durable, compartmentalized carrying case with wheels for easy transport.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Frequency Range | 25 MHz to 18 GHz |
| AB-900A Biconical Antenna | 25 MHz to 300 MHz (Collapsible Elements) |
| ALC-100 Compact Log Periodic Antenna | 300 MHz to 1 GHz |
| AH-118 Double Ridge Horn Antenna | 700 MHz to 18 GHz |
| PAM-103 Preamplifier | 1 MHz to 1 GHz |
| PAM-118A Preamplifier | 500 MHz to 18 GHz |
| CGO-520 Comb Generator | 20 MHz Step Size |
| CGO-5100B Comb Generator | 100 MHz Step Size |
| PS-500 Near Field Probes | 400 Hz to 5 GHz |
| ACK-318 Cable Kit | Included |
| Calibration Data | Included |
| Optional Accessory | AT-812 Antenna Tripod with ATC-812 Carrying Case |
| Weight | 54 lbs / 24.5 kg |
| Dimensions | 27 × 27 × 12 inches (68.5 × 68.5 × 30.5 cm) |
