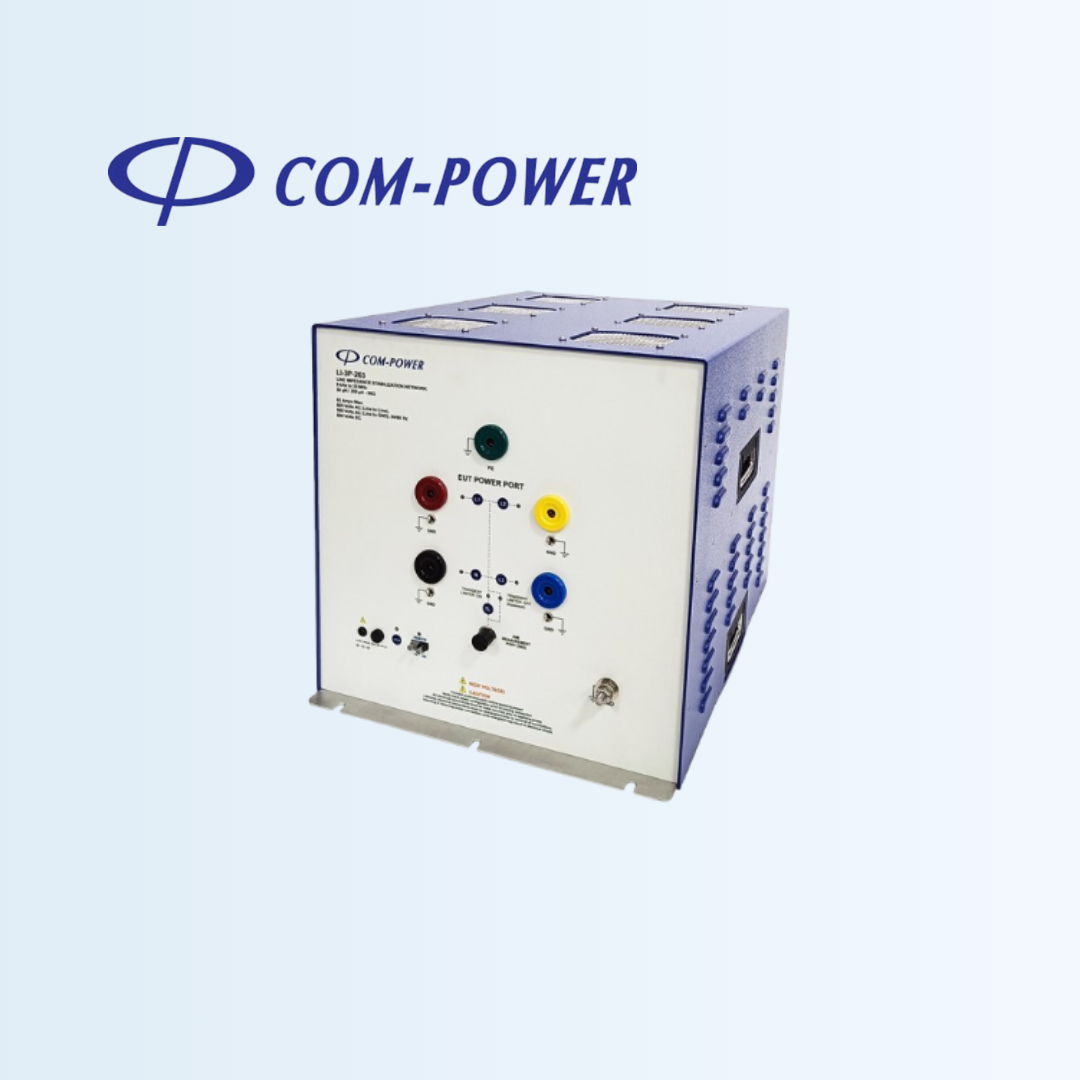

LI-3P-216

16 Amp Three-Phase Line Impedance Stabilization Network

The LI-3P-216 consists of four-conductor, 50Ω, 50/250 μH +5Ω Line Impedance Stabilization Networks (LISNs), also known as Artificial Mains V-Networks (V-AMNs). Measurements can be conducted using the RLI v2.0 Remote LISN Interface. LISN LI-3P-216 provides a reliable measurement platform for performing power line conducted emission compliance testing in accordance with most international commercial EMI/ EMC requirements, such as FCC (U.S.), CE (Europe), AS/ NZS (Australia/New Zealand), VCCI (Japan), Industry Canada, etc.

Datasheet

Features

Key capabilities and advantages

▼

Frequency range: 9 kHz to 30 MHz for conducted emissions testing
16 A maximum continuous current per line
Compliant with CISPR 16-1-2 (CE) and ANSI C63.4 (FCC)
50 Ω, 50/250 µH + 5 Ω four-conductor LISN network for 3-phase Delta & Wye systems
Remote or local line switching (L1, L2, L3, N) via RLI-100 interface
Integrated transient limiter with attenuation for receiver protection
Air-core inductors to prevent magnetic saturation
Unpainted mounting plates for proper earth-ground bonding
N-type 50 Ω RF measurement port
Three-year standard warranty

Specification

Technical specifications and parameters

▼

Product Type	Three-Phase Line Impedance Stabilization Network (LISN)
Application	Power-line conducted emissions (disturbance voltage) testing
Standards	CISPR 16-1-2, ANSI C63.4
Network Type	50 Ω, 50/250 µH + 5 Ω, 4-conductor
Frequency Range	9 kHz to 30 MHz
9 kHz–150 kHz	<17 dB to <11 dB (decreasing with log frequency)
150 kHz–30 MHz	<11 dB
9 kHz–50 kHz	>0 dB to >40 dB (increasing with log frequency)
50 kHz–30 MHz	>40 dB
Maximum Current	16 A continuous per line
AC Voltage	865 V rms line-to-line, 500 V rms line-to-ground
DC Voltage	600 V DC
Power Input Plug (attached)	16A receptacle pins (Red, Yellow, Blue, Black, Green)
Power Input Socket	16A plug sockets
Power Output Socket	16A receptacle sockets
Power Output Plug	16A plug pins
RF Measurement Port	50 Ω, N-type (female)
Fiber Optic Ports	Avago duplex POF jack (for RLI-100)
Remote Power Input	6 V DC, 500 mA (unregulated)
Operating Temperature	5 °C to 40 °C (40 °F to 104 °F)
Cooling	Passive (louvered side panels, no forced air)
Weight	45.9 lbs (20.8 kg)
