- Comprehensive evaluation kit for GHz coaxial components and systems using Anritsu V Connectors.
- Includes V120MM-25CM male-to-male cable assembly.
- Includes two V102F female sparkplug launcher connector assemblies.
- Contains two V103F female flange launcher connector assemblies.
- Comes with two V101M male in-line cable connector assemblies.
01-301

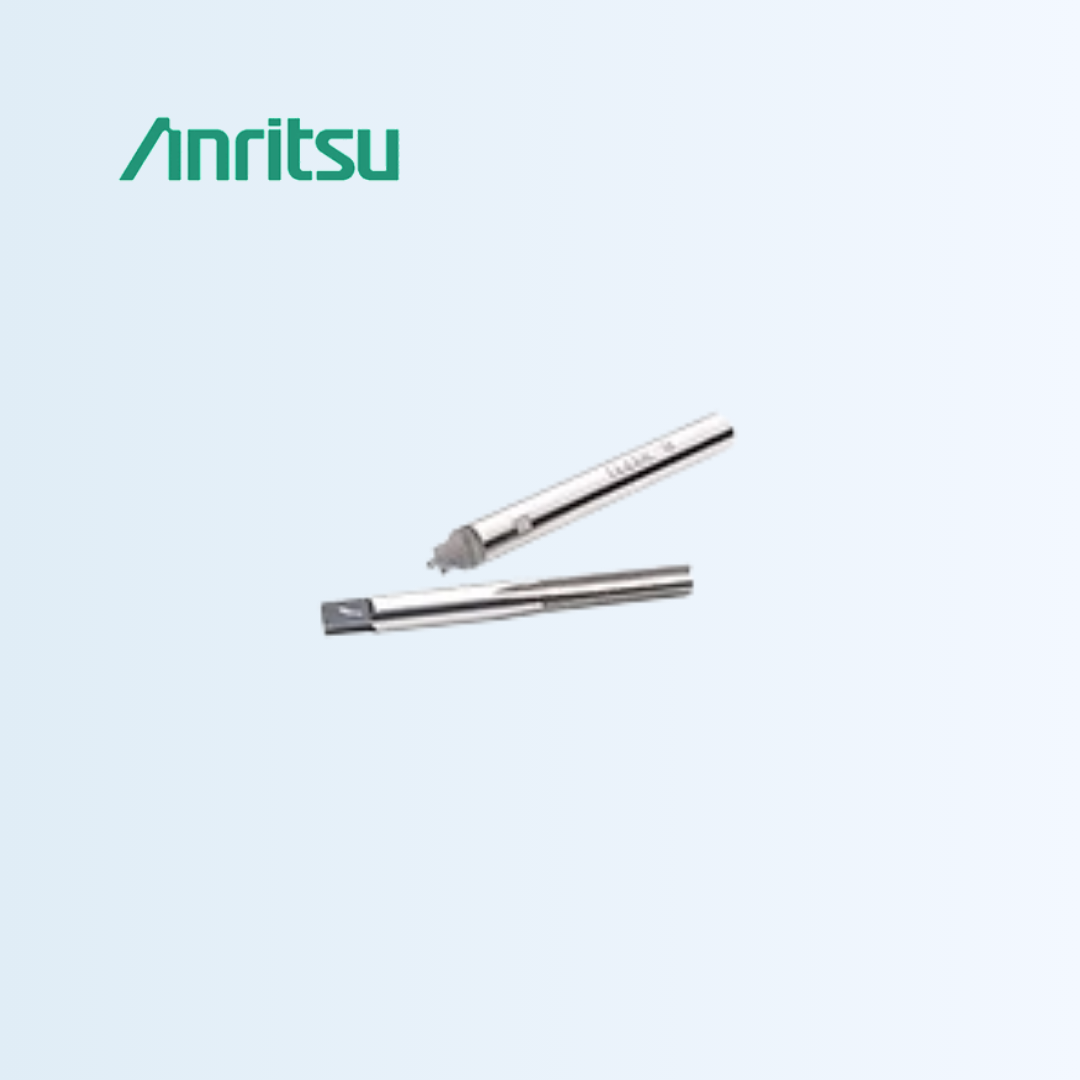

The 01-301 V Connector Evaluation Kit contains one V120MM -25CM 25 cm Male/Male Cable Assembly, two V102F Female Sparkplug Launcher Connector Assemblies, two V103F Female Flange Launcher Connector Assemblies, two V101M Male In-line Cable Connector Assemblies, five V100 Glass Beads, one 01-304 Drill and Tap Set, one 01-303 Soldering Fixture, one V-Connector Test Fixture.
Includes the solder needed to install beads in housings and connectors on cables.
If you are planning to use stress relief contacts, you will also need a 01-308 Drill and Tap Set or a 0.64 mm drill to correctly size the center hole.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Model | 01-301 |
| Frequency Range | DC to 65 GHz |
| Performance | Excellent performance up to 65 GHz with low VSWR and low loss |
| Reliability | Superior mechanical stability and repeatable connections |
| Includes | Full accessory set and soldering fixture for complete evaluation setup |
