- Model W1-105M
- Excellent RF Performance: DC to 110 GHz
- Impedance: 50 Ω
- Low VSWR
- Standard: 1 mm Interface
- Accurate Testing Capability

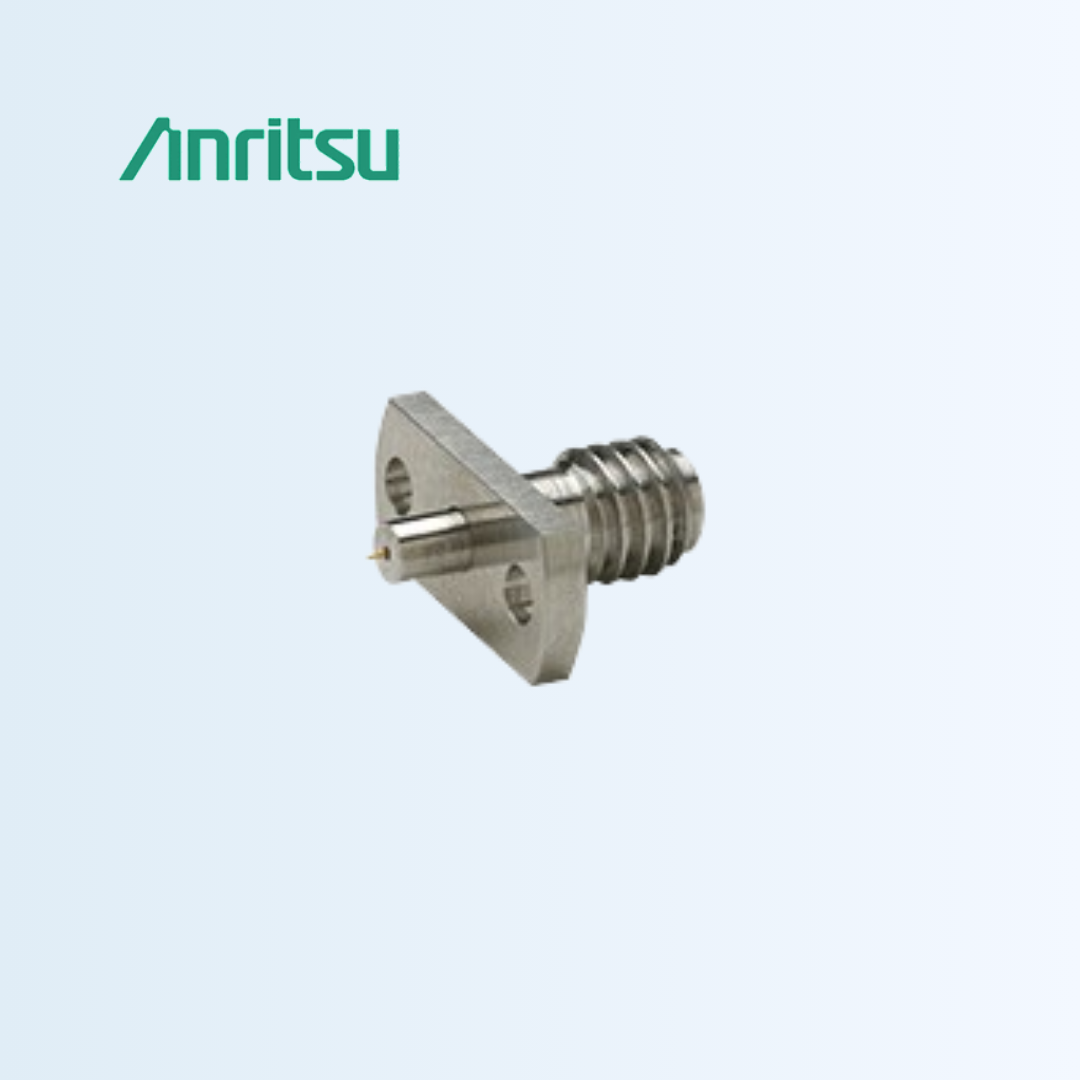

W1-105M
The W1 Connector launcher family includes both Male and Female screw-in type connectors.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Connector Type | W1 male screw-in launcher |
| Frequency Range | DC to 110 GHz |
| Impedance | 50 Ω |
| Outer and Center Conductor | Beryllium copper plated with gold over nickel |
| Coupling Nut | Passivated stainless steel |
| Standard | IEEE Std-287 compliant |
