- Customized built-in 4ch sampling oscilloscope and 4ch BERT
- Fast measurement and high performance shorten test times, improve yields, and cut capital infrastructure costs
- Fast: 250 ksamples/s to measure 1 Msamples in about 5 s
- High Sensitivity: 15 dBm (typ., SMF)
- Wide bandwidth: 35 GHz (optical, SMF), 25 GHz (optical, MMF), 40 GHz (electrical)
- Low Jitter: 200 fs rms (typ.)
- Both NRZ and PAM4 signal analysis, Supports 53-Gbaud analysis with PAM4
- Built-in 26/53 Gbaud Clock Recovery Unit (CRU) for both NRZ and PAM4
- NRZ Jitter component analysis
- Low-Jitter PPG: 600 fs rms (typ.)
- High-sensitivity ED: 25 mV (typ.)
- Built-in PC for stable fast performance
MP2110A
BERTWave

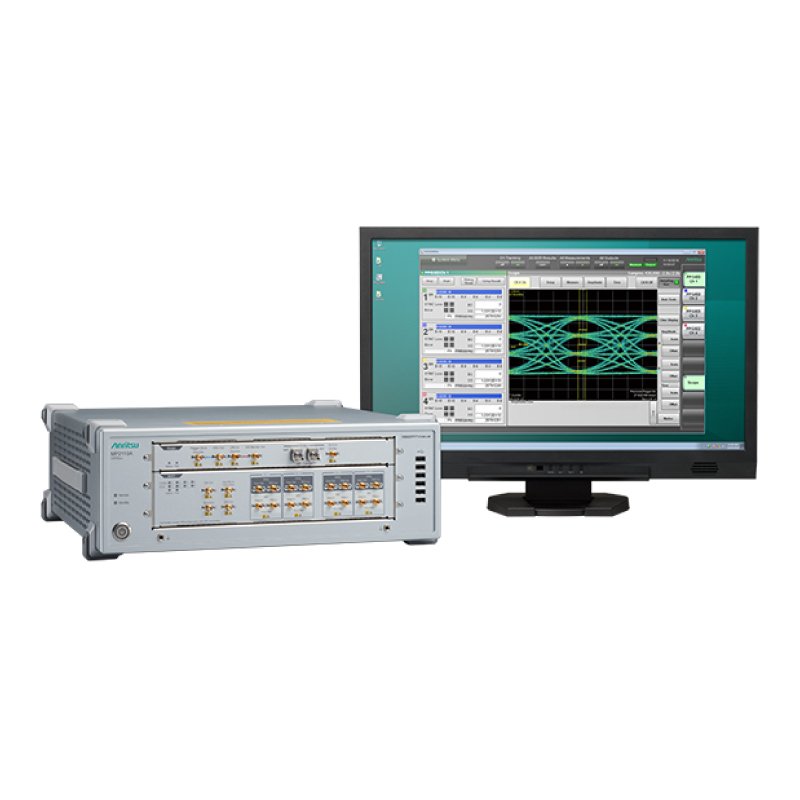

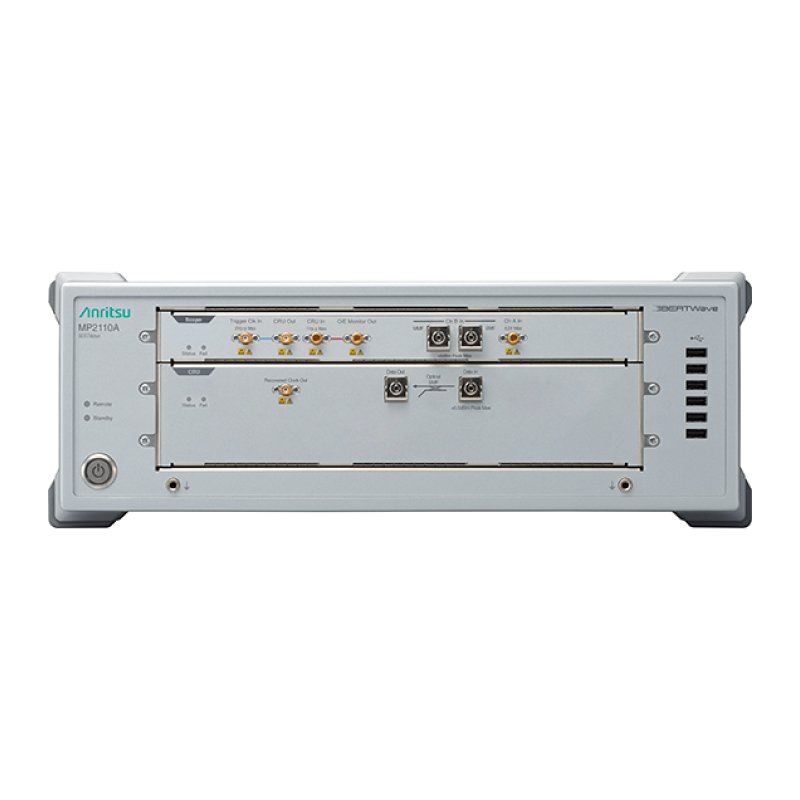

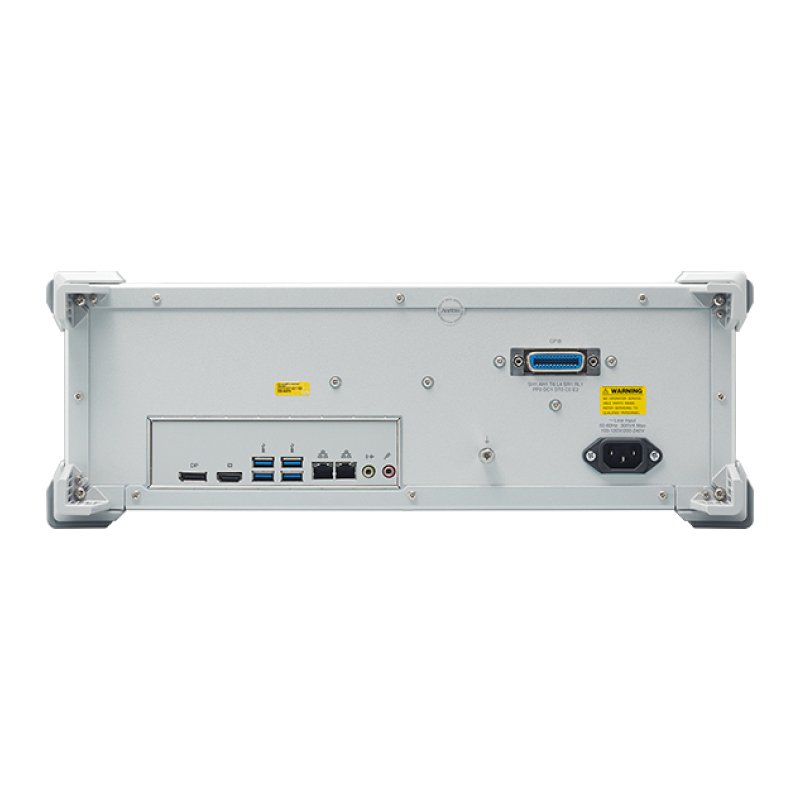

The Anritsu BERTWave MP2110A is an all-in-one measuring instrument with built-in bit error rate tester (BERT) and sampling oscilloscope, supporting evaluations such as bit error rate (BER) measurements, Eye pattern analyses, etc., of optical modules.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Product Type | BERTWave |
| Category | bit-error-rate-testers |
| Channels | Built-in 4-channel sampling oscilloscope and 4-channel BERT |
| Measurement Speed | 250 ksamples/s, capable of measuring 1 Msamples in about 5 seconds |
| Sensitivity | 15 dBm (typical, SMF) |
| Bandwidth | 35 GHz (optical, SMF), 25 GHz (optical, MMF), 40 GHz (electrical) |
| Jitter | Low jitter: 200 fs rms (typical) |
| Signal Analysis | Supports both NRZ and PAM4 signal formats, including 53-Gbaud PAM4 analysis |
| Clock Recovery Unit (CRU) | Built-in 26/53 Gbaud CRU for NRZ and PAM4 |
| Jitter Analysis | NRZ jitter component analysis |
| Pulse Pattern Generator (PPG) | Low-jitter PPG with 600 fs rms (typical) |
| Electrical Detector (ED) | High-sensitivity ED: 25 mV (typical) |
| Built-in PC | For stable and fast instrument performance |
| Applications | Bit Error Rate (BER) measurement, Eye pattern analysis, optical module evaluation |
