- With multiple protocols, the all-in-one Network Master Pro supports various network types.
- The full range of built-in versatile MT1040A functions make field testing easy.
- Intuitive operation using large 9-inch color touch panel.
- 400G Dual Ports Measurements (Option).
- SEEK function supporting fast, automated, on-site installation and maintenance test procedures.
- Remote-controlled, long-term continuity testing using VNC.
- Wireless control over WLAN*1.
- Optical fiber end-face condition inspection using dedicated Fiberscope.
- Stable Linux OS based test environment＊2.
- User measurement module retrofitting.
- Supported Interfaces : Ethernet: 10M/100M/1000M, 10G/25G/40G/100G, 400G, OTN/SDH/SONET: 2.5G/10G/40G/100G, Mobile back/fronthaul: eCPRI/RoE/CPRI/OBSAI, Fibre Channel: 1GFC to 16GFC.

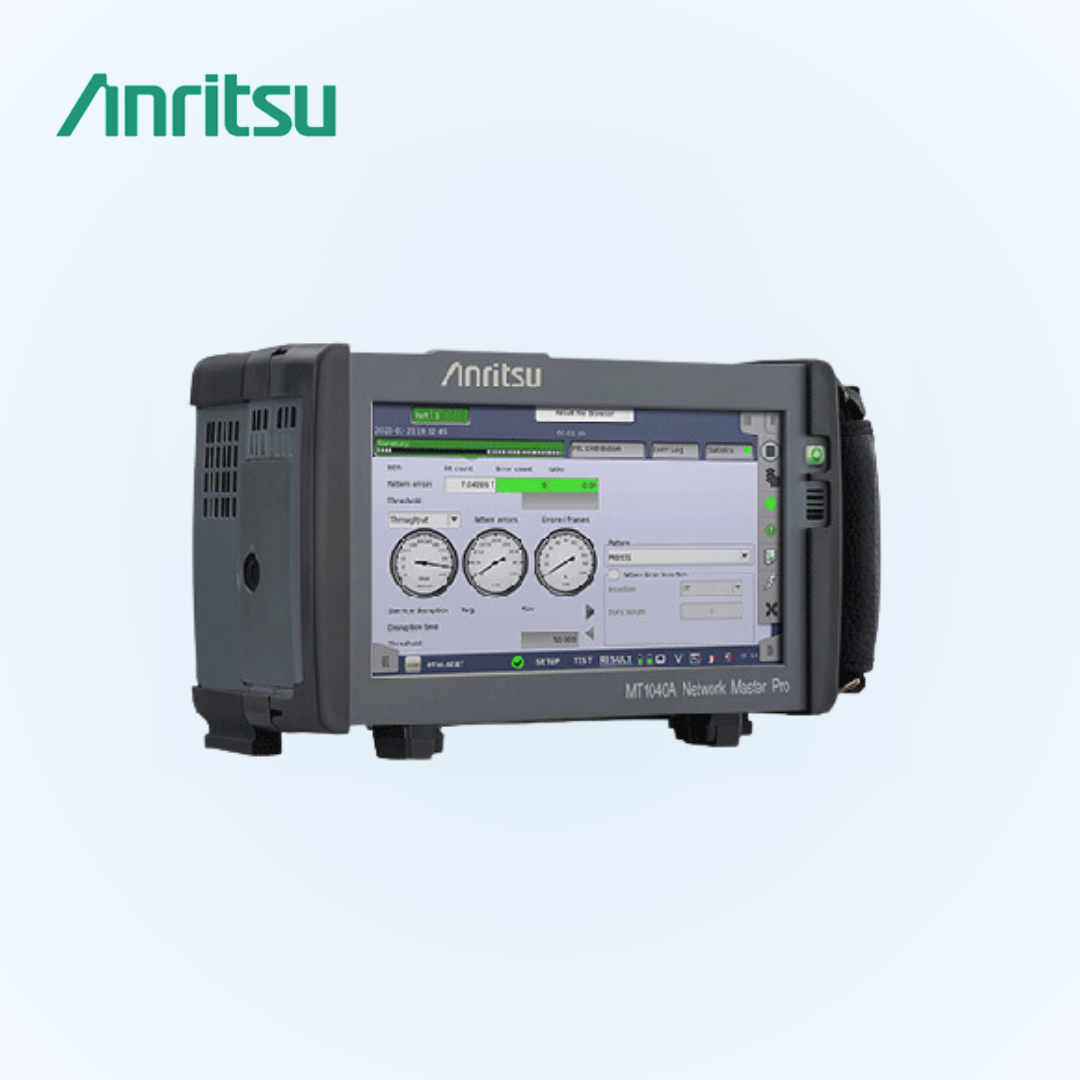

MT1040A
Network Master Pro (400G Tester)
The MT1040A has a wide 9-inch touchscreen built-into the wide B5-size case. At on-site testing with no available AC supply, the battery secures 1 hour (average) of continuous, problem-free 400G interface measurements. The GUI is designed for efficient on-site network I&M evaluation work, and fast troubleshooting if a problem occurs. The intuitive user interface also helps shorten operator training times.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Battery Life | 1 Hour |
| Battery Type | Rechargeable Li-ion |
| Features | Bluetooth (BT2.1+EDR/3.0/4.2 (BLE)) (File access only) IEEE802.11a/b/g/n (2.4 GHz/5 GHz) |
| MT1040A operates as device | USB 2.0 type Mini-B (1 port) |
| MT1040A operates as host | USB 2.0 type A (2 Ports)Touchscreen |
| Weight | 17.00 |
