- Integrated tri-axis isotropic antenna for EMF measurements
- Covers 700 MHz to 6 GHz for wireless and RF exposure testing
- Wide dynamic range and fast axis-switching time
- Automatic antenna factor download and calibration storage
- Supports advanced demodulation options
2000-1791-R

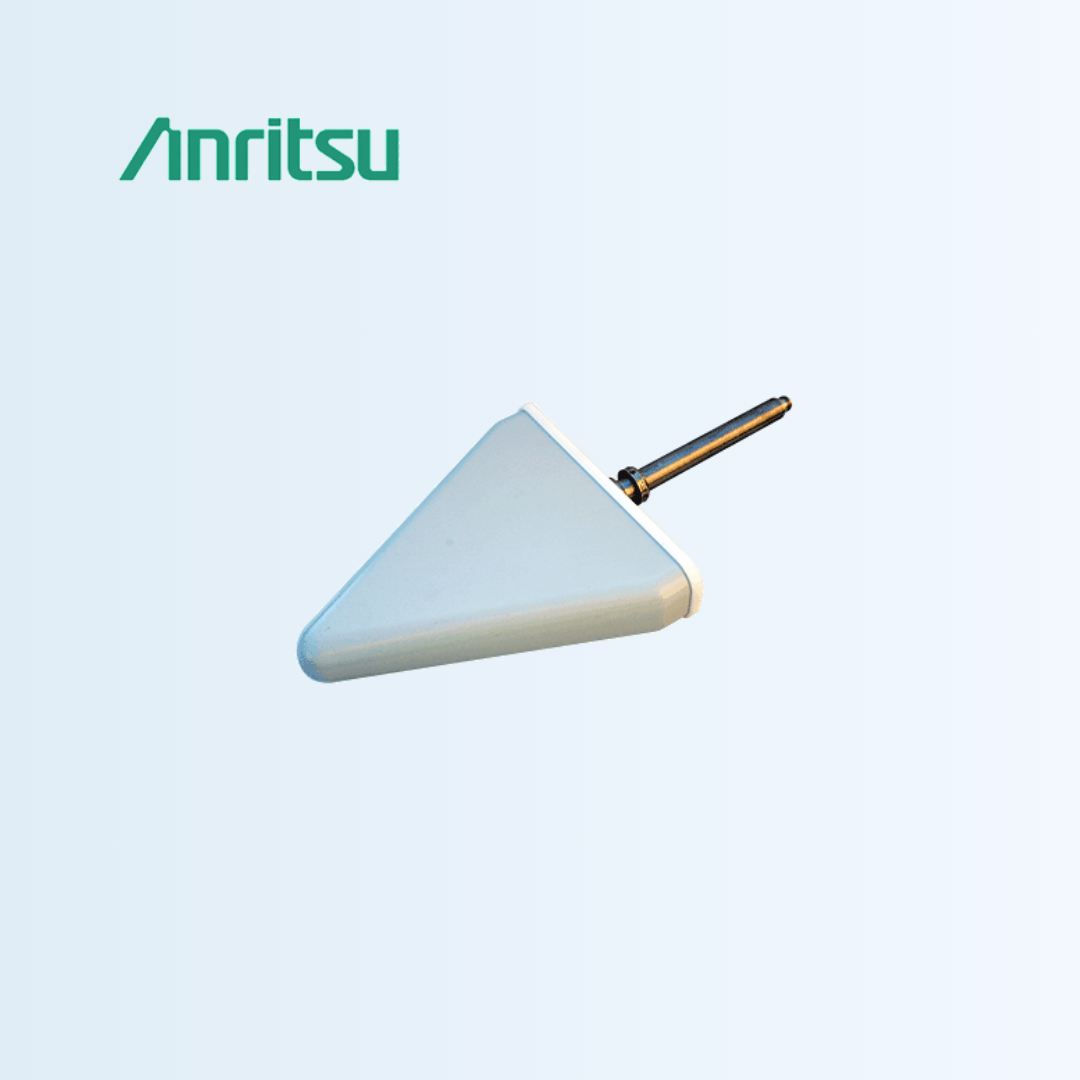

Anritsu isotropic antenna for EMF measurements, model 2000-1791-R, tri-axis E-field sensor with integrated RF switch, microcontroller, and memory.
Measures all radiation at the antenna’s position regardless of direction of arrival.
Features
Key capabilities and advantages
Specification
Technical specifications and parameters
| Model | 2000-1791-R Isotropic E-Field Antenna |
| Type | Tri-axis E-field sensor with integrated RF switch, microcontroller, and memory |
| Frequency Range | 700 MHz – 6 GHz |
| Isotropy | ≤ ±2 dB (0.7–2 GHz), ≤ ±3.5 dB (3.6–6 GHz) |
| Dynamic Range | 0.2 mV/m – 200 V/m (1 kHz RBW) |
| Max Field Strength | 500 V/m (destruction limit) |
| Switch Time | < 10 µs |
