Bandwidth :

200 MHZ

Dual-phase :

XY / Rθ

Input voltage noise :

30 nV/√Hz

Dynamic reserve :

120 dB

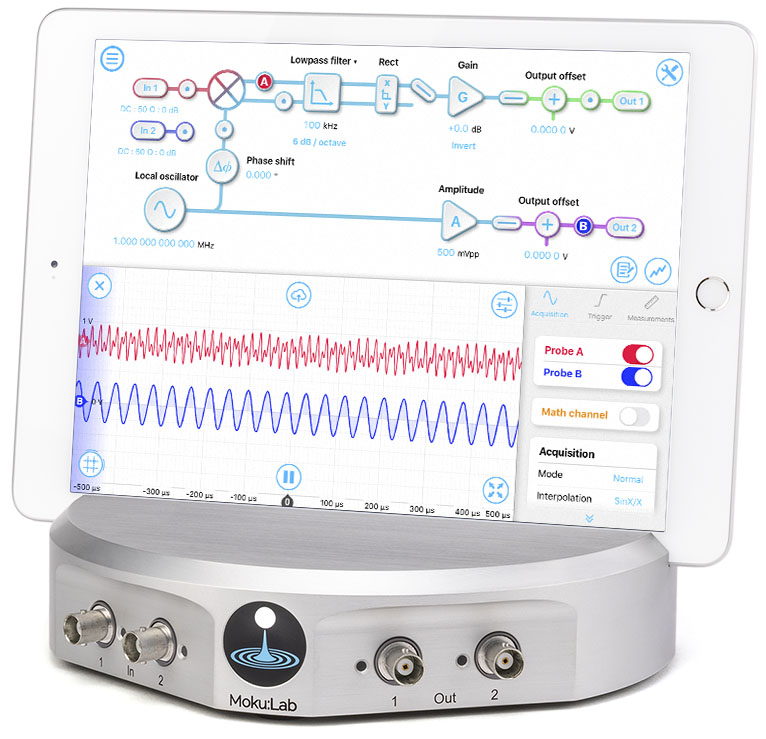

Moku:Lab’s digital Lock-in Amplifier supports dual-phase demodulation (XY/Rθ) from DC to 200 MHz, with more than 120 dB of dynamic reserve. It also features an integrated 2‑channel oscilloscope and data logger, enabling you to observe signals at up to 500 MSa/s and log data at up to 1 MSa/s.

Extract Signals with High Precision : Measure signals obscured by noise with more than 120 dB dynamic reserve.
Select from Advanced Demodulation Modes : Internal or external demodulation modes including a PLL (phase-locked loop).
Demodulation : Dual-phase demodulation.
Extended Functionality : Built-in PID Controller.
Custom Configuration and Data Acquisition : Built-in probe points for signal monitoring and data logging.
Choose Your Coordinate Mode : Toggle between rectangular (X/Y mode) or polar coordinates (R/θ mode).

Input Voltage Noise : 30 nV/√Hz
Dynamic Reserve : 120 dB
Demodulation : With frequencies ranging from 1 mHz to 200 MHz with 3.55 μHz resolution
Adjustable Time Constant : From 32 ns to 0.537 s
LO Output : Up to 200 MHz with variable amplitude
Output Gain Range : -80 to +160 dB
Preset Waveforms : Phase shift precision of 0.001°
Intuitive User Interface : Block diagram view of the digital signal processing chain
Input Impedance : 50 Ω / 1 MΩ
Filter Roll-off : 6, 12, 18, or 32 dB/octave
Ultra-fast Data Acquisition : Snapshot mode up to 500 MS/s, continuous mode up to 1 MS/s
