The cost effective node to distribute synchronization

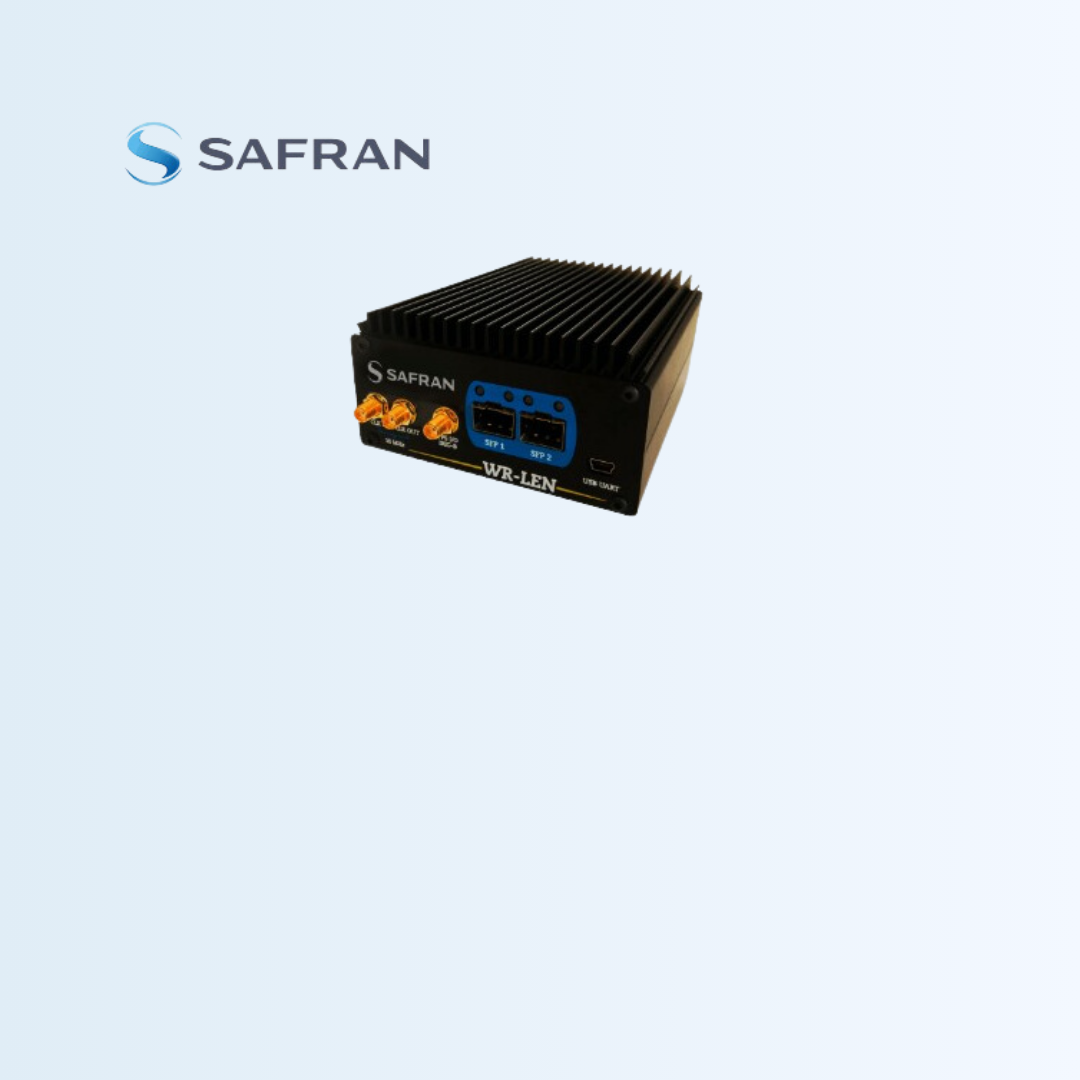

WR LEN is the competitive White Rabbit alternative capable of supporting daisy chain configurations. It allows a cost effective solution to distribute PPS/10MHz signals or IRIG-B protocol to your equipment. Optional: 2xฮผ-DB9 connector for PPSs & 10MHz fan-out or configurable output triggers.
| Size | 54 x 105 x 135 mm. |
|---|---|
| Power | 5V DC, 1.5 A โ 7.5W max. |
| Environmental Conditions Temperature | -10ยบC ~ +50ยบC. |
| Humidity | 0% ~ 90% RH. |
| Timing Protocols / Interfaces | White Rabbit โ Dual optical fiber Ethernet 1G interfaces. IRIG-B / PPS I/O โ Digital LVTTL (3.3V) Selectable operation. |
| Frequency I/O | 10 MHz programmable input/output. |
