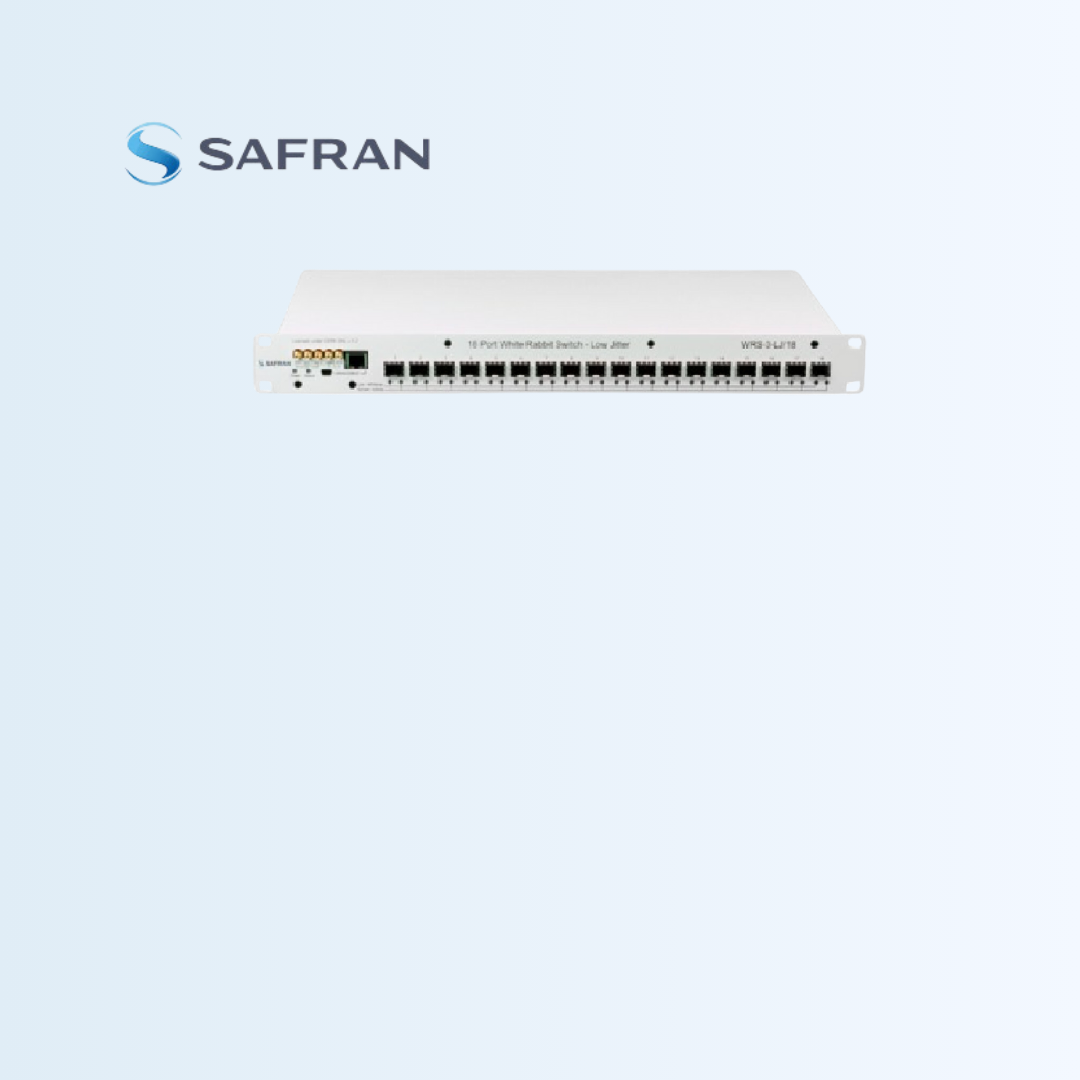

White Rabbit Switch – Low Jitter

White Rabbit Switch – Low Jitter

For demanding time and frequency distribution applications

The newest White Rabbit Switch – Low Jitter contains a series of improvements that enable its use in more demanding time and frequency distribution applications. The WRS-LJ distributes Time and Frequency within sub-nanosecond accuracy to thousands of nodes through standard optical fiber, providing very low noise and accurate timing outputs.

  • Sub-nanosecond time accuracy.
  • 18 SFP 1GbE ports.
  • Time and frequency distribution.
  • Distance range over 100km in 1-hop.
  • Remote monitoring.
  • Improved clocking design in HW and FPGA.
  • Cleaner and more accurate 1PPS output.
  • Improved clock jitter and phase noise.
  • Lower power consumption and better thermic dissipation.
  • High reliability and improved MTFB.
Size 447 mm x 44 mm x 223 mm.
Power Input 100-240VAC, 2.0A 50-60 Hz.
Power Output 12V DC, 6.66A – 80W max.
Certifications ISO-9001, ISO-14001, CE, RoHS,FCC,SE.
Environmental Conditions Temperature -10ºC ~ +50ºC.
Humidity 0% ~ 90% RH.
Timing Protocols / Interfaces White Rabbit Supported on 18xSFP ports IEEE1588-2008 (PTP): Default profile (layer 2) supported on 18xSFP ports
NTP v2, v3 & v4 supported in Ethernet interfaces.
