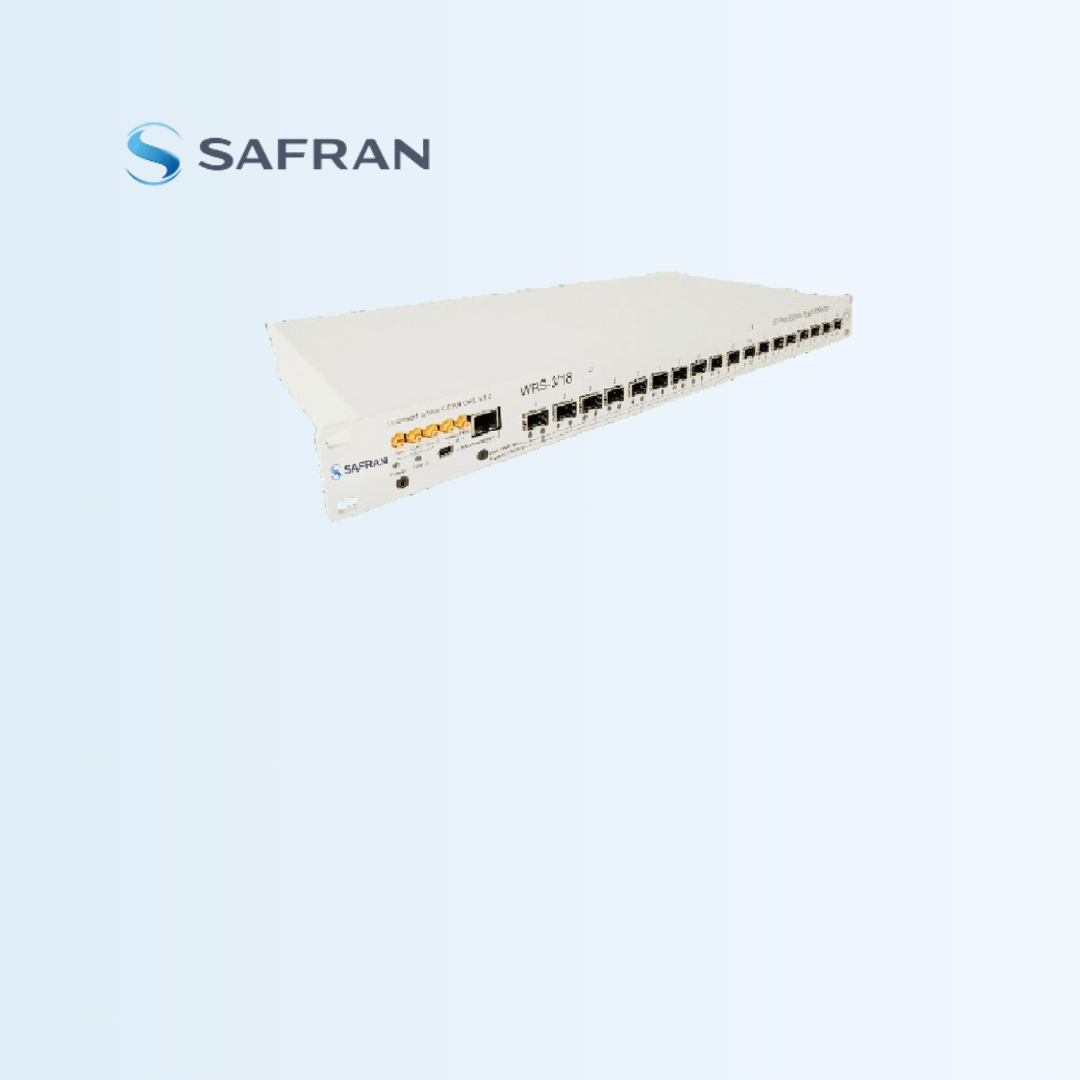

The key element of the White Rabbit network
It is the first commercial available device developed with the White Rabbit (WR) Technology. It distributes Time and Frequency within a sub-nanosecond accuracy to thousands of nodes through standard optical fiber over Metro Area network distances. It also works as a basic data switch. It is the basic element for scientists and technologists looking for experimenting with WR technology and to evaluate features like deterministic time transfer or dynamical self-calibration of optical fiber links.
| Size | 447 mm x 44 mm x 223 mm. |
|---|---|
| Power Input | 100-240VAC, 2.0A 50-60 Hz. |
| Power Output | 12V DC, 6.66A – 80W max. |
| Certifications | ISO-9001, ISO-14001, CE, RoHS,FCC,SE. |
| Environmental Conditions Temperature | -10ºC ~ +50ºC. |
| Humidity | 0% ~ 90% RH. |
| Timing Protocols and Front Panel Clocks I/O | 5 SMC coaxial connectors, 10 MHz reference clock input (GPS/Cesium), 10MHz & 62.5 MHz output reference clock, 1xPPS Input & 1xPPS Output. |
| Ports | 18 x SFP cages. SFP transceivers are not included in all packages. Recommendation – 1.25Gbps, 1490/1310 nm, Single Fiber Bi-directional SFP. |
| Management | 100Base-T Ethernet (Remote) / USB Mini-B (Local) |
