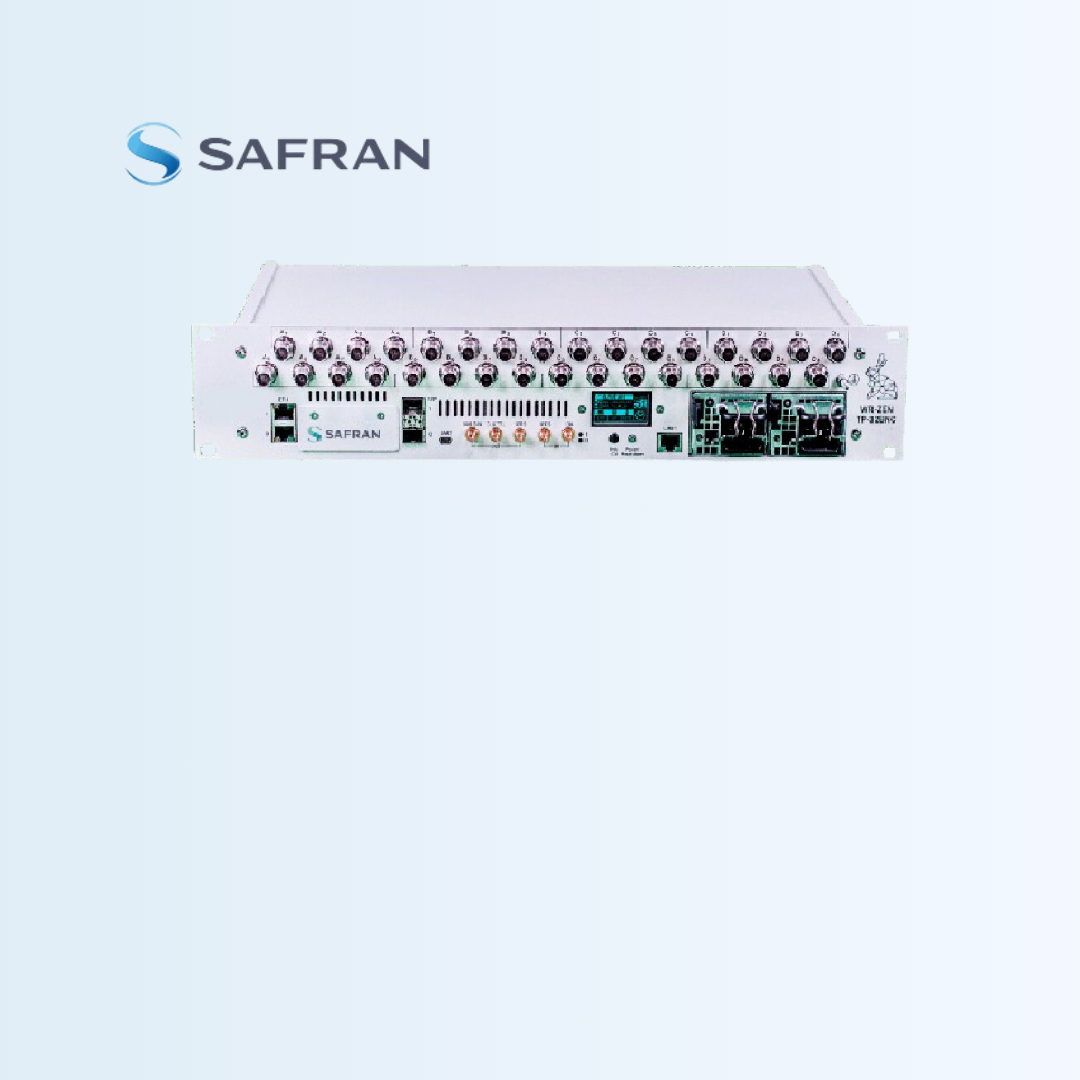

White Rabbit ZEN TP-32BNC

White Rabbit ZEN TP-32BNC

The reliable node that provides multiple legacy 10MHz/xPPS timing outputs.

It is the versatile standalone node that provides the White Rabbit features to a wide range of applications making use of its redundant connections. The WR-ZEN TP-32BNC easily distributes time and frequency to other equipment by implementing standard timing protocols such as PTP, NTP, IRIG-B, etc.

  • Sub-nanosecond time accuracy.
  • WR, PTPv2 and NTP over optical interfaces.
  • Extended management and monitoring.
  • Distance range over 80 km using fiber.
  • Failover mechanisms & Holdover.
  • Robustness & Redundancy.
  • Low jitter/phase noise frequency dissemination.
  • Precise timing sources monitoring capability.
  • 32 BNC configurable outputs xPPS/10MHz/IRIG-B with selectable 50Ω .termination.
  • Ethernet : 2x 10/100/1000 Base-T RJ45 (Management, NTP)
  • Clocks I/O : 5xSMA coaxial connectors (3V/50Ω): 10 MHz SIN OUT, CLK OUT(LVTTL), PPS OUT/IRIG-B (LVTTL), PPS IN (LVTTL), 10MHz IN (TTL/CMOS/ ECL/clippedsine).
  • Fanout : 32x BNC configurable outputs divided in 2 blocks:(1.7V/50Ω): A&B: 10MHz/xPPS/IRIG-B (LVTTL, with selectable 50Ω termination) C&D: xPPS/IRIG-B (LVTTL, with selectable 50Ω termination).
  • LCD : Information panel for alerts & network configuration.
Size 428 x 88 x 220 mm
Environmental Conditions Temperature -10ºC ~ +50ºC
Humidity 0% ~ 90% RH
