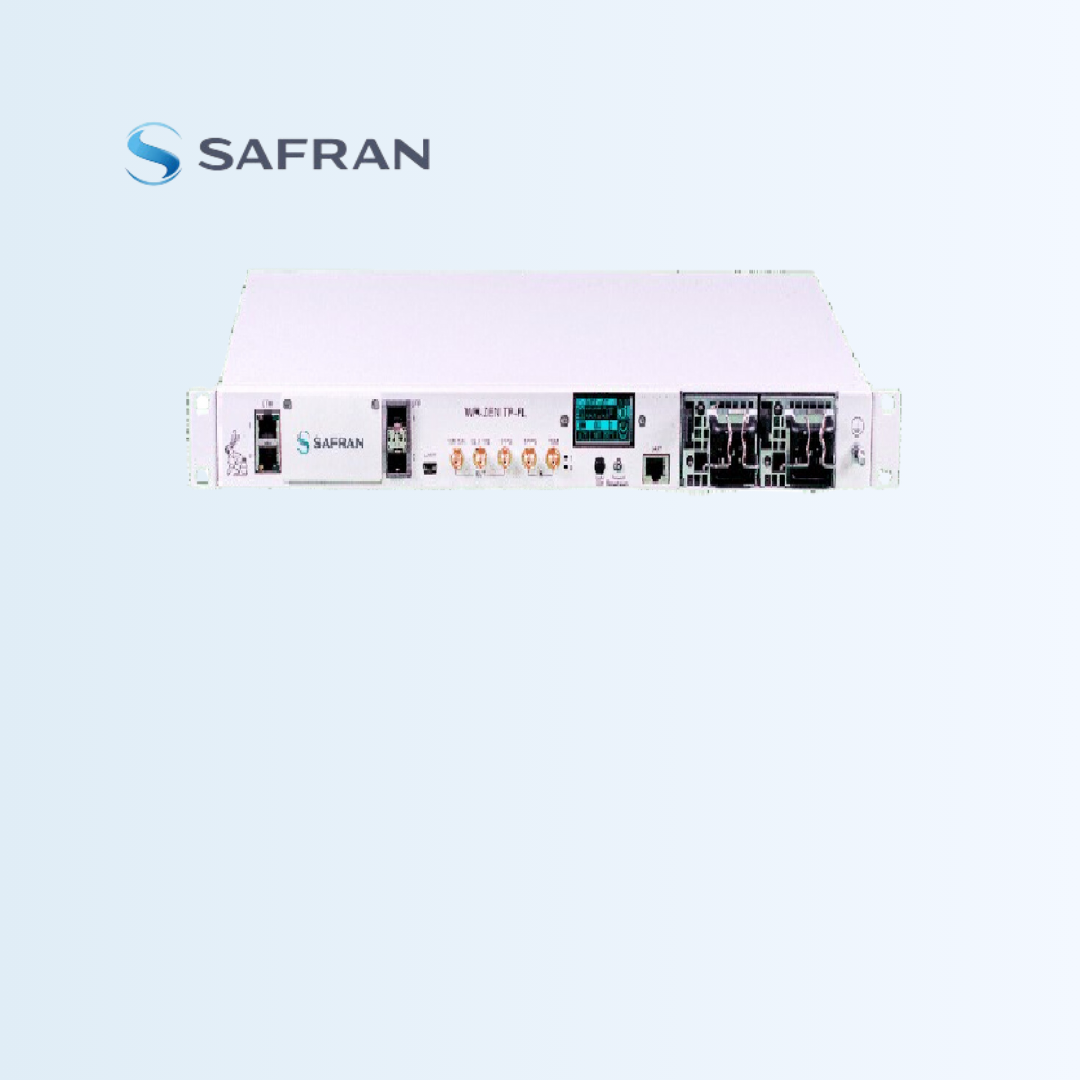

White Rabbit ZEN TP-FL

The fundamental standalone node

The WR-ZEN TP-FL is the fundamental standalone node that provides White Rabbit features to a wide range of applications making use of its redundant connections. The WR-ZEN TP-FL easily distributes time and frequency to other equipment by implementing widely available timing protocols: PTP, NTP, 10MHz/PPS.

Sub-nanosecond time accuracy.
WR, PTPv2, and NTP over optical interfaces.
Extended management and monitoring.
Distance range over 80 km using fiber.
Failover mechanisms & Holdover.
Robustness & Redundancy.
Low jitter/phase noise frequency dissemination.
Precise timing sources monitoring capability.
Configurable timing outputs via expansion modules.

Size	444 x 43 x 221 mm.
Environmental Conditions	Temperature: -10ºC ~ +50ºC.
Humidity	0% ~ 90% RH.
Ethernet	2x 10/100/1000 Base-T RJ45 (Management, NTP).
Clocks I/O	5xSMA coaxial connectors (3V/50Ω): 10 MHz SIN OUT, CLK OUT(LVTTL), PPS OUT (LVTTL), PPS IN (LVTTL), 10MHz IN (TTL/CMOS/ ECL/clipped sine).
SFP Ports	2x 1GbE (WR, PTP, NTP).
LCD	Information panel for alerts & network configuration.
Expansion	4/8x SMA connectors(3.3V/50Ω): 1PPS/10MHz/IRIG-B (LVTTL).
