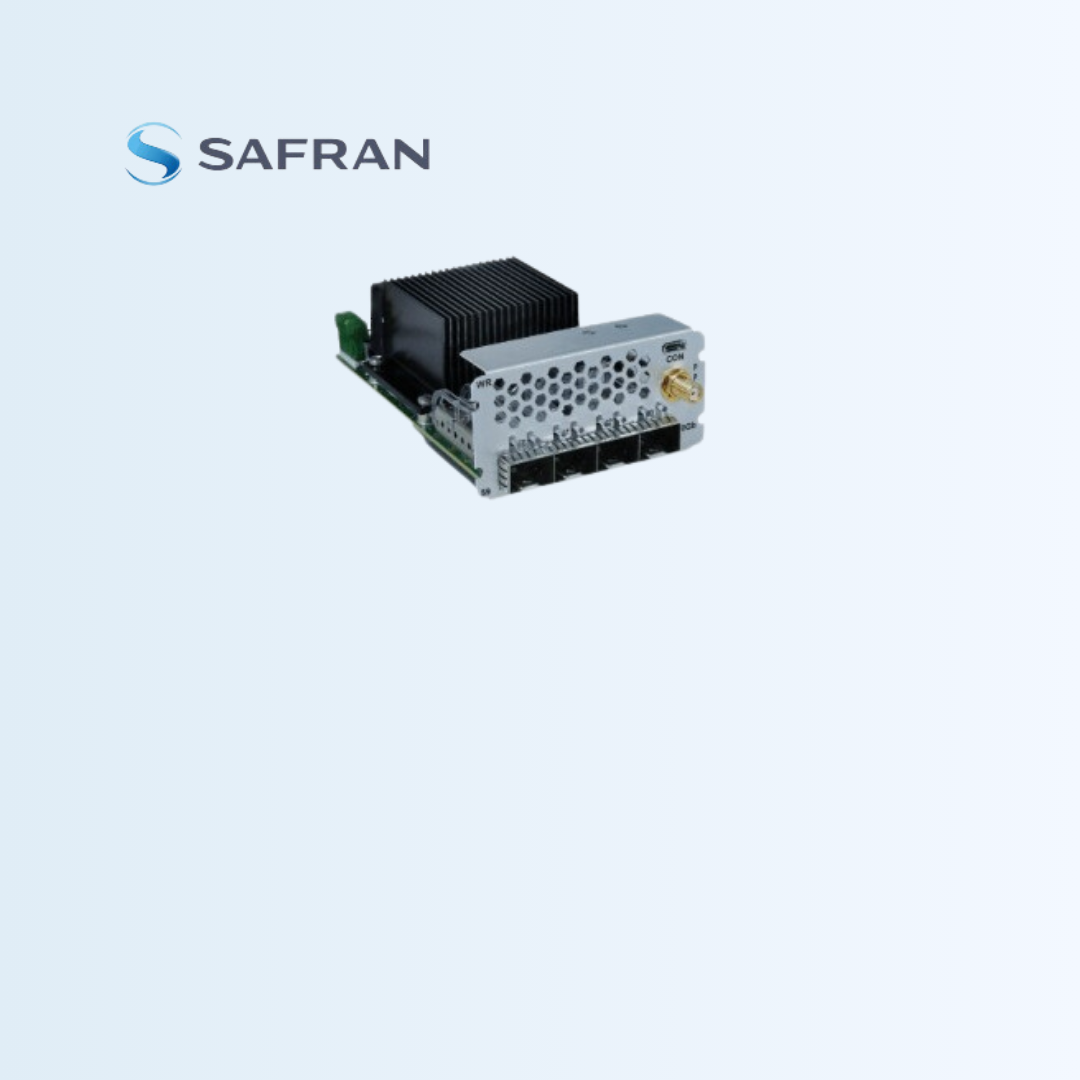

White Rabbit Option Card for SecureSync 2400
Operations in Critical Infrastructures rely more and more on assured and accurate time distribution. Precise time-stamping of high frequency events or transactions is a key enabler for monitoring, security and performance measurement of all kind of transaction-based operations. Time and Frequency synchronization quality has a direct impact on reliability and performances of multiple civilian and governmental communication systems.
| Physical | Two-slots high Option Card for SecureSync ; two modules max per SecureSync base unit. (requires 6-slot capable base unit – 2406-xyz) |
|---|---|
| Interfaces 4 Ethernet ports | 10 GbE (SFP+), 1 pps output (LVTTL +3.3V), Console port (micro-USB) |
| Interoperability | Support E2E & P2P delay mechanism, Layer 2 & Layer 3, Unicast & Multicast. Support for default, G9265.1, power profiles. Modes NTP Server. PTP Master. White Rabbit Master. |
| Security | Configurable Password Policy, RADIUS, TACACS+, authentication, Enable/Block protocols, SSH v2 (Open SSH 8.1), SFTP/SCP secure file transfer over SSH session, Firewall configuration, Signed Software Updates, Monitoring SNMPv3 + traps with enterprise, MIB, RSyslog. |
| Environmental | Temperature envelop of SecureSync 2400 with WROX. |
| Option Card installed is limited to | +55°C for TCXO and OCXO configurations, and+50°C with Rubidium oscillator. |
| Power | per Option Card, overall power consumption from SecureSync is increased by 10 W, plus 1 to 2 W per SFP. |
| Regulatory Approvals | CE and UK mark, FCC part 15 class A, RoHS, REACH, WEEE. |
| Ordering Information | 1204-58 : WROX Option Card 1 Gb. |
| 1204-59 | WROX Option Card 10 Gb. |
| Product Ecosystem | White Rabbit dedicated fiber SFPs ( 1 Gb / 10 Gb, OLT/ONU). |
| General purpose SFPs (1 Gb / 10 Gb, ) for PTP. |
