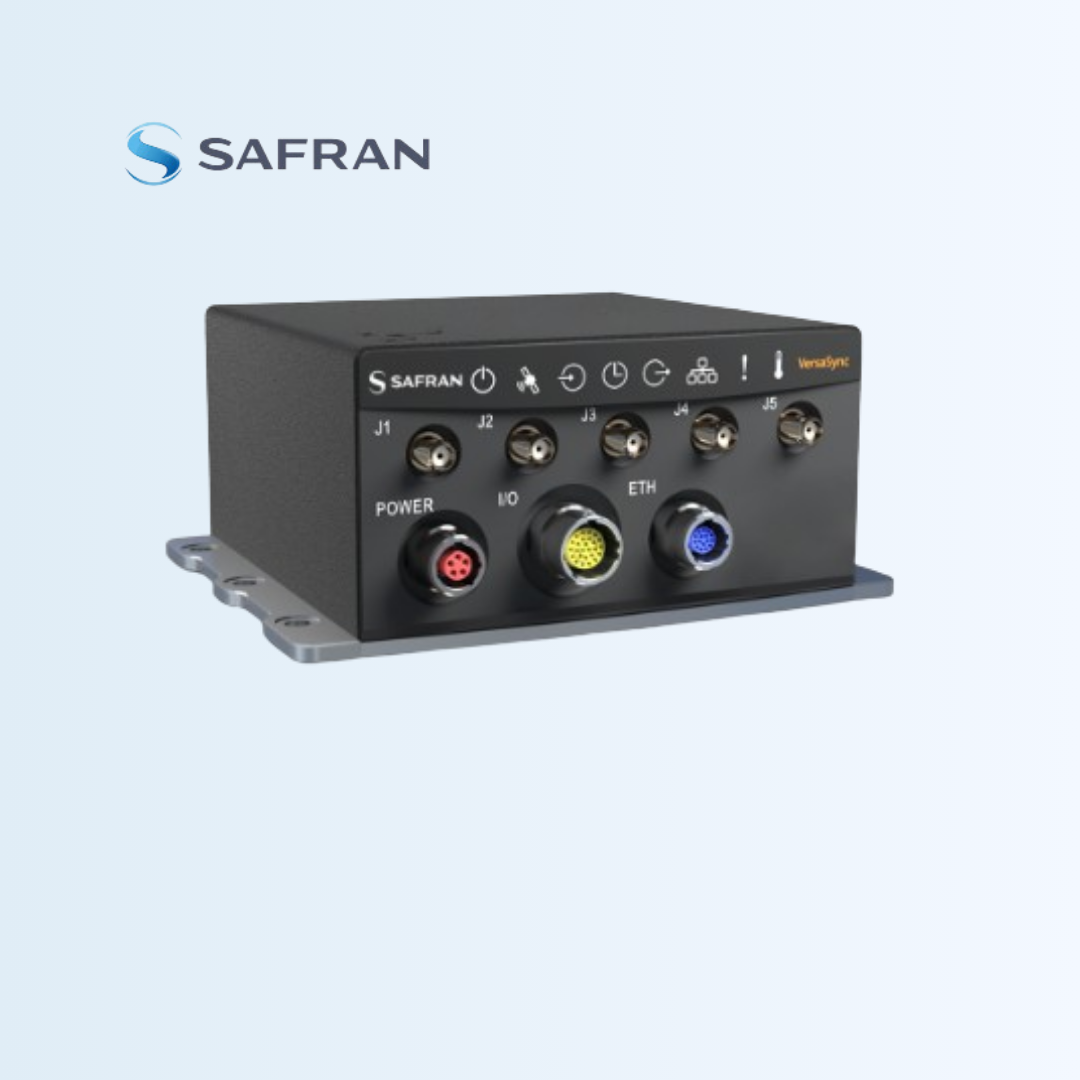

Rugged GPS Master Clock

Rugged GPS Master Clock

All-in-One Mobile Master Clock

VersaSync is a high performance GPS master clock and network time server that delivers accurate, software configurable time and frequency signals under all circumstances, including GNSS-denied environments. Its compact size and high level of ruggedization make VersaSync suitable for mobile applications in harsh environments. Its small footprint allows for easy integration of the time and frequency functionality into systems architecture.

  • GNSS master clock and NTP/PTP time server.
  • Low size, weight and power.
  • Ruggedized (MIL-STD-810G).
  • High versatility with software configurable inputs/outputs.
  • Design can be efficiently customized to match specific customer requirements.
  • Easy integration due to small footprint and low power consumption.
Operational Readiness 1PPS time of day available (hot start), 60 s: 1ms accuracy to UTC, 200 s: 1µs accuracy to UTC.
Physical Size (WxHxD) 5.8” x 2.5” x 5.0” (147.3 x 127.5 x 63.0 mm), Weight 0.91 kg (2.0 lbs), Mounting On a plate, optimized for conduction cooling, 6 through holes.
Power Input Voltage 10-32 VDC, Typical Power Draw 25 W (with OCXO), Standby mode 0.4 W, DC power supply must be within 10 – 32 VDC
Environmental Tested to MIL-STD-810G CH1, Temperature, in operation: -40°C to +71°C with OCXO (-10°C to +45°C with mRO-50), Mounting plate temperature, in storage: -45°C to +85°C, Humidity: 95% RH, non-condensing, Altitude: 45,000 ft, Environmental Protection: IP 65, Vibration, MIL-STD-810G CH1 Method 514.7, Categories 12,13,14,20,21,24, Shock: 20 g, 11 ms, sawtoot.
