Ultra-high performance, Miniaturized, Space-qualified

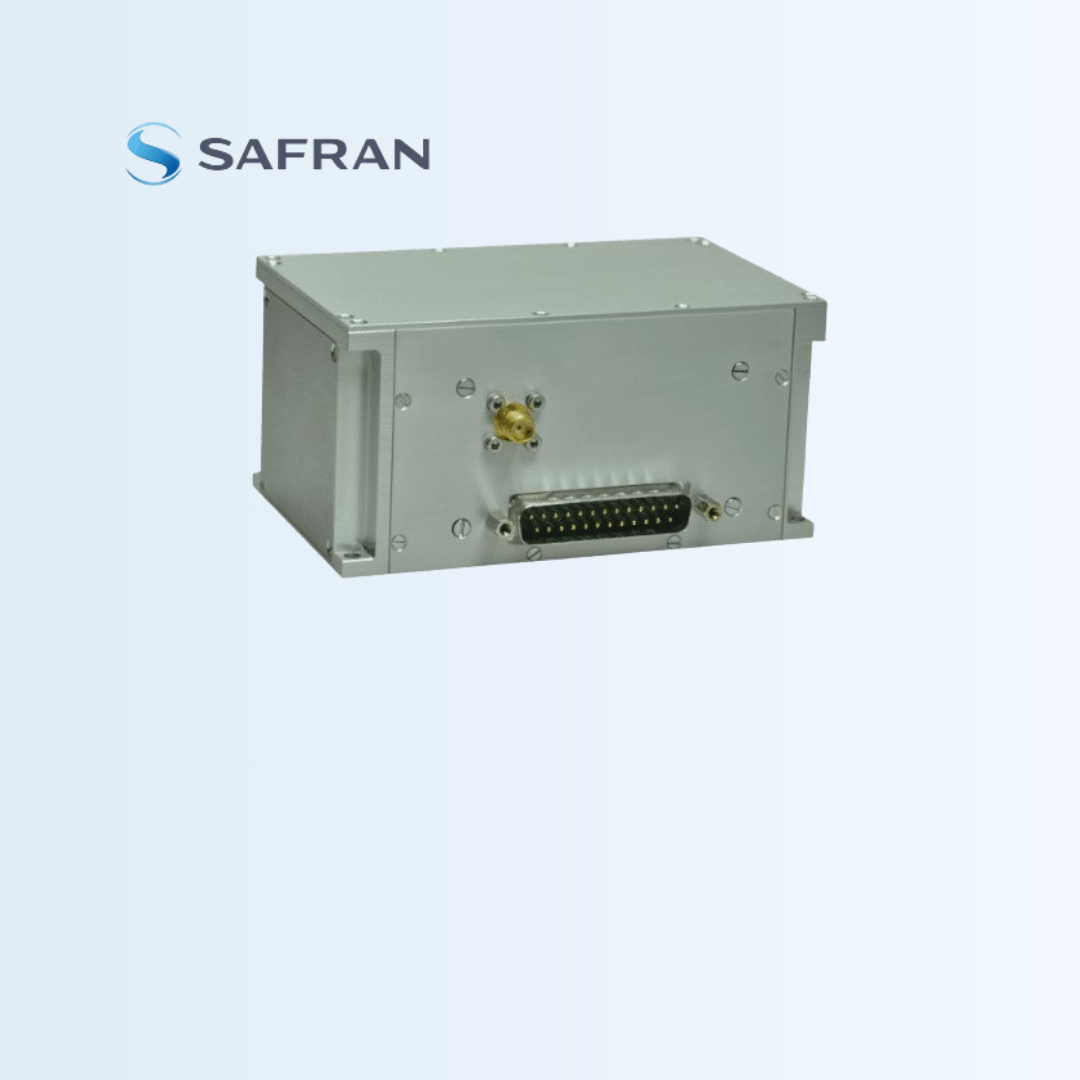

The MiniRAFS is a cost-effective, ultra-high performance, miniaturized, space-qualified rubidium frequency standard. It’s designed with the latest technologies, providing advanced features, such as long lifetime, high reliability, ultra light-weight and ultra low phase noise, for next-generation space applications.
| Size | 107.5×67.5×53.5mm | 423×2.65×2.1″ |
|---|---|
| Weight | 0.45 Kg | 0.99 lbs |
| Power (operating) | < 10W |
| Voltage | 15.5-16.5V digital, 3.5-5V |
| Output | 60 MHz and 10 MHz auxiliary |
| Accuracy | < 2E-10 after launch & commissioning, < 1E-10 under vacuum at delivery |
| Lifetime/MTBF | > 20 yrs / < 1000 fit –1200–> |
