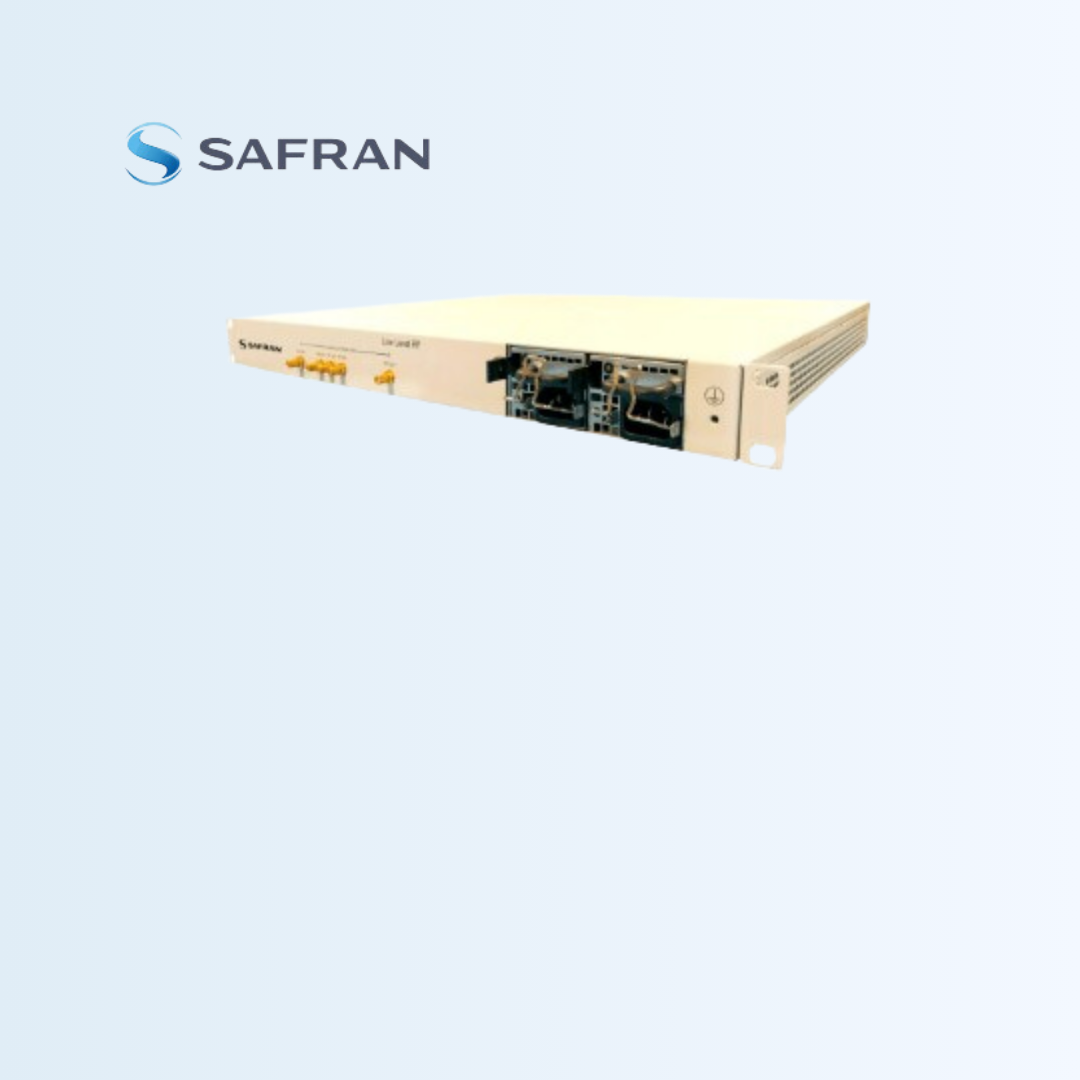

uTCA / Stand-alone LLRF

uTCA / Stand-alone LLRF

Digital RF stabilization system

Our digital RF stabilization system is available in uTCA and stand-alone form-factors for best in-class LLRF solutions. Our fully digital RF systems are designed to offer accurate control of electromagnetic fields inside any accelerating cavity and play a key role in the longitudinal beam performance of any particle accelerator.

  • Amplitude and phase control in continuous wave (CW) or pulsed.
  • Real-time monitoring of RF signals, with live computation of detune frequency for resonance controls.
  • Opened loop or closed loop mode control of amplitude and frequency or phase.
  • Pulse shaping feature for smoothing RF pulses
  • Feedforward for beam loading compensation
  • Real-time monitoring of RF signals (Incident, reflected, cavity field)
  • Provides information for step tuner motors.
  • Fast output interlock system (Machine protection).
  • EPICS/TANGO control system support and easy user interface.
  • Postmortem analysis with selectable event triggers and configurable capture parameters.
  • Compatible with White-Rabbit and IEEE-1588 protocols.
Up to 2 LLRF Channels on the same box.
Up to 2 Configurable RF output.
Up to 7 Configurable RF inputs.
One Frequency Reference input.
7 configurable input/outputs TTL connectors.
It can be mounted on two different configurations according to user needs Fits into a stand-alone 19 inch rack, Fits into a 19 inch rack using 2U height and integrated into a uTCA backplane.
