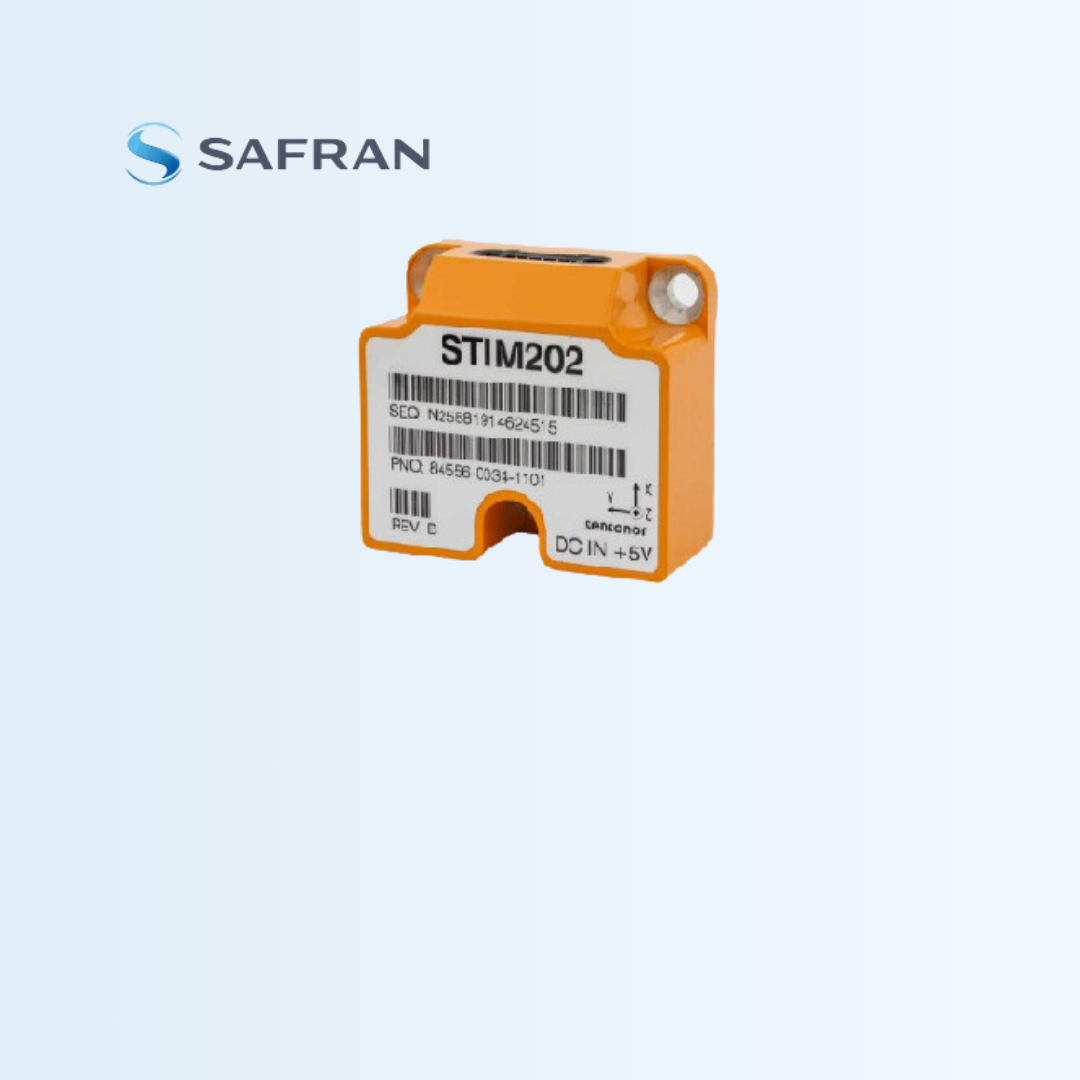

STIM202 MEMS Gyroscope

STIM202 MEMS Gyroscope

MEMS Gyroscope

STIM202 is a 3-axis shock capable, tactical grade, affordable, robust and reliable, ultra high performance (Bias Stability 0.4 °/h, ARW 0.17 °/√h) MEMS gyro module. An integrated 32-bit microcontroller enables flexible user configuration.

  • Miniature package.
  • ITAR free.
  • Excellent performance in vibration and shock.
  • Excellent environmental robustness.
  • 3 axes offered in same package.
  • Electronically calibrated axis alignment.
  • RS422 interface.
  • 24 bits resolution.
  • Single-crystal silicon technology.
  • Low bias drift.
  • Low noise.
  • 5 different sampling rates available.
  • 5 different bandwidths available.
  • LP filter -3dB frequency can be set individually for each axis.
  • RS422 protocol, bit rate and line termination.
  • Selectable output unit: angular rate [deg/s] or incremental angle [deg].
  • Continuous self-diagnostics.
Weight 55 g
Input Range +/- 400 °/s
Power Supply 5.0 V
Operating Power Consumption 1.5 W
Operating Temperature -40°C to +85°C
RS422 bit rate 921600 bit/s
Time to valid data 3 s
Sample rate 1000 SPS
Mechanical shock 1500 g
