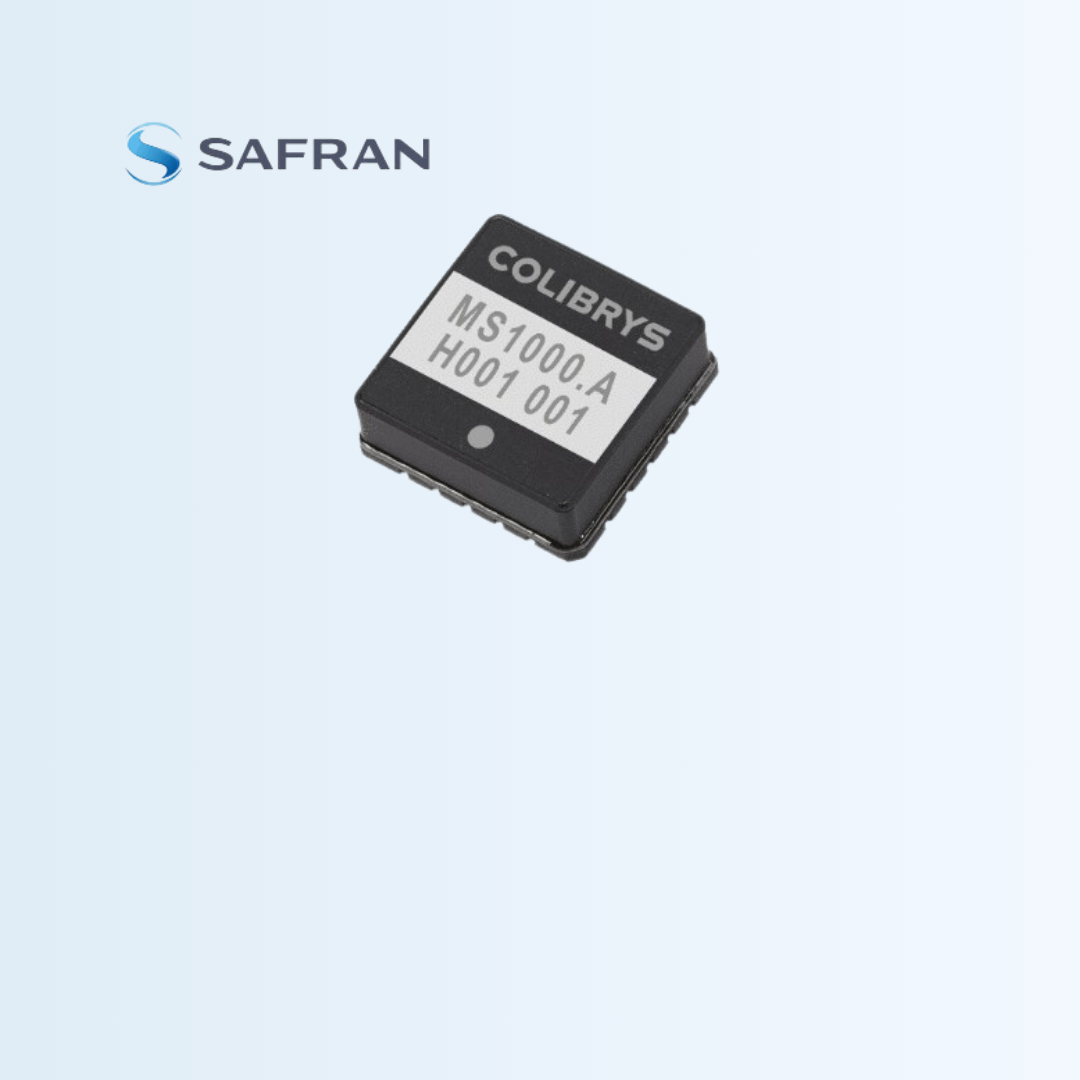

Tactical Grade MEMS Accelerometer MS1000

Tactical Grade MEMS Accelerometer MS1000

Best In Class For Inertial Applications

MS1000 implements an innovative microelectromechanical design and electronics which unleash unbeatable performances with regard to the long term bias and scale factor repeatability, in-run bias and vibration rectification error (VRE).

  • Long Term Bias Repeatability: 1.9 mg (+/16g, typ).
  • Residual Bias Modeling error: 1.1 mg (+/16g, typ).
  • In-run bias stability (Allan Variance @ 10 s): 24 Ī¼g (+/16g, typ).
  • Non Linearity (IEEE Norm, % of full scale) : 0.3 %.
Size 9Ɨ9 mm2g
Operating Temperature -40Ā°C to +125Ā°C
Full-Scale Acceleration up to +/- 100g
Power Supply 5.0 V
Operating Power Consumption 10mW
Misalignment 10 mrad
Residual Bias Modeling Error 70 ppm of full scale
Long-Term Bias repeatability 120 ppm of full scale
In-run bias stability 1.5ppm of full scale
Noise in band 3.5ppm/āˆšHz of full scale
