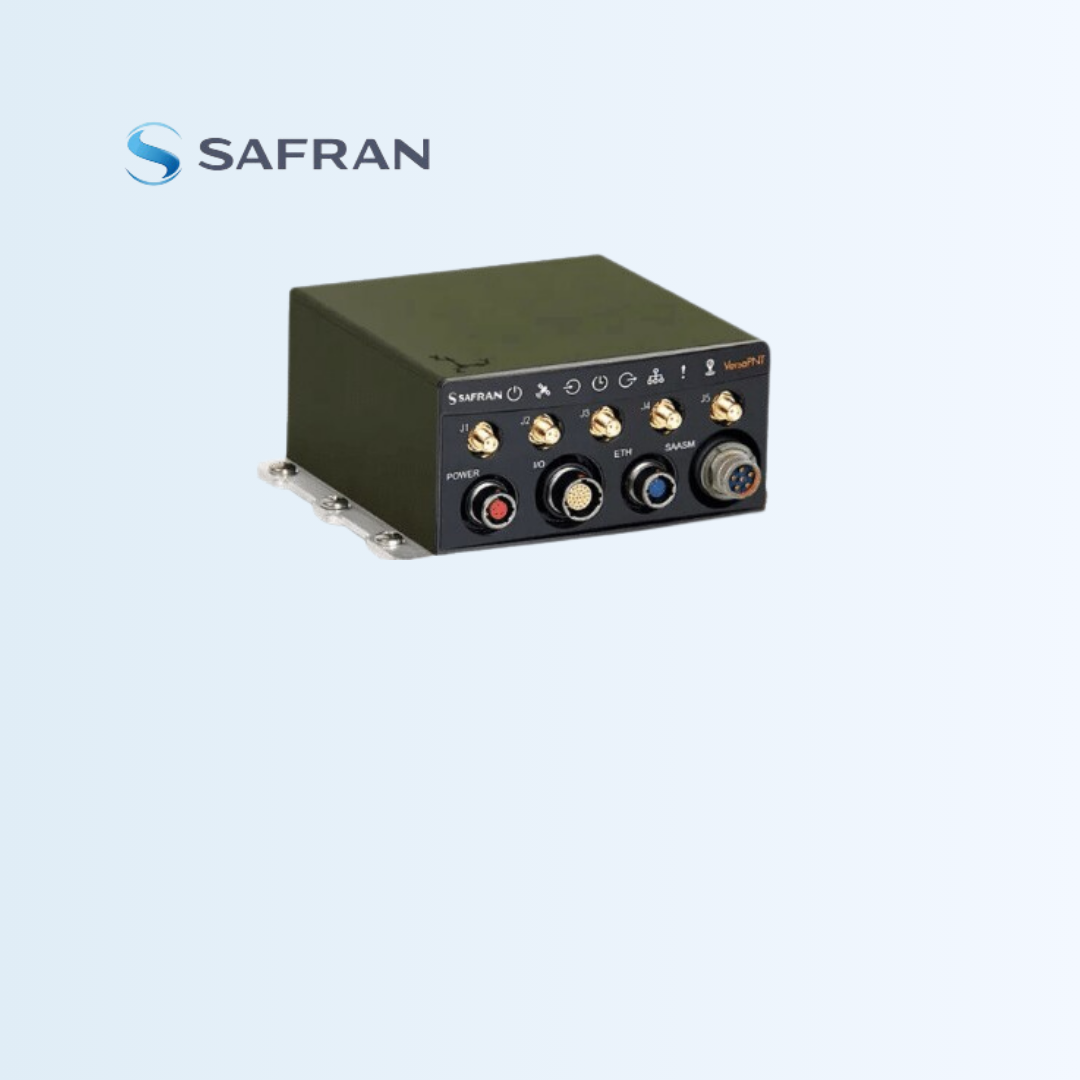

VersaPNT

The First Compact, All-in-One Resilient Positioning, Navigation and Timing System

The VersaPNT combines a GNSS receiver, inertial measurement technology and high-performance timing oscillators to provide Assured PNT in GNSS-degraded and denied environments. This rugged and highly customizable device serves as a navigation system, master clock and network time server for mobile applications in harsh environmental conditions.

GNSS-aided inertial navigation and timing.
Embedded jamming and spoofing detection.
Configurable for multiple vehicle and airframe platforms.
High performance internal time base and inertial sensor to manage potential GNSS loss.
GNSS time and frequency source with NTP/PTP time server.
Ability to integrate future PNT signal sources such as CAN Bus.
High versatility with software-configurable inputs/outputs.
Network sync, set up and management.
Easy integration, with small footprint and low power consumption.
Compatible with external IMUs.
Victory compatible.
Ruggedized (MIL-STD-810G) low size, weight and power.
Easy integration, with small footprint and low power consumption.
Conduction-cooled.
Mil-performance connectors.
Standby power mode.

Operational Readiness	1PPS time of day available (hot start), 60 s: 1ms accuracy to UTC, 200 s: 1µs accuracy to UTC.
Physical	Size (WxHxD): 5.8” x 2.5” x 5.0” (147.3 x 127.5 x 63.0 mm) VITA 75 compliant.
Weight	1.0 kg (2.2 lbs).
Mounting	On a plate, optimized for conduction cooling, 6 through holes
Power	Input Voltage: 10-32 VDC.
Typical Power Draw	< 25 W (with OCXO).
Standby mode (only oscillator is powered)	0.4 W, DC power supply must be within 10 – 32 VDC.
Environmental	Tested to MIL-STD-810G CH1.
Temperature, in operation	-40°C to +71°C with OCXO (-10°C to +45°C with mRO-50).
Mounting plate temperature, in storage	-45°C to +85°C.
Humidity	95% RH, non-condensing.
Altitude	45,000 ft.
Environmental Protection	IP 65, Vibration MIL-STD-810G CH1 Method 514.7, Categories 12,13,14,20,21,24.
Shock	20 g, 11 ms, sawtoot.
