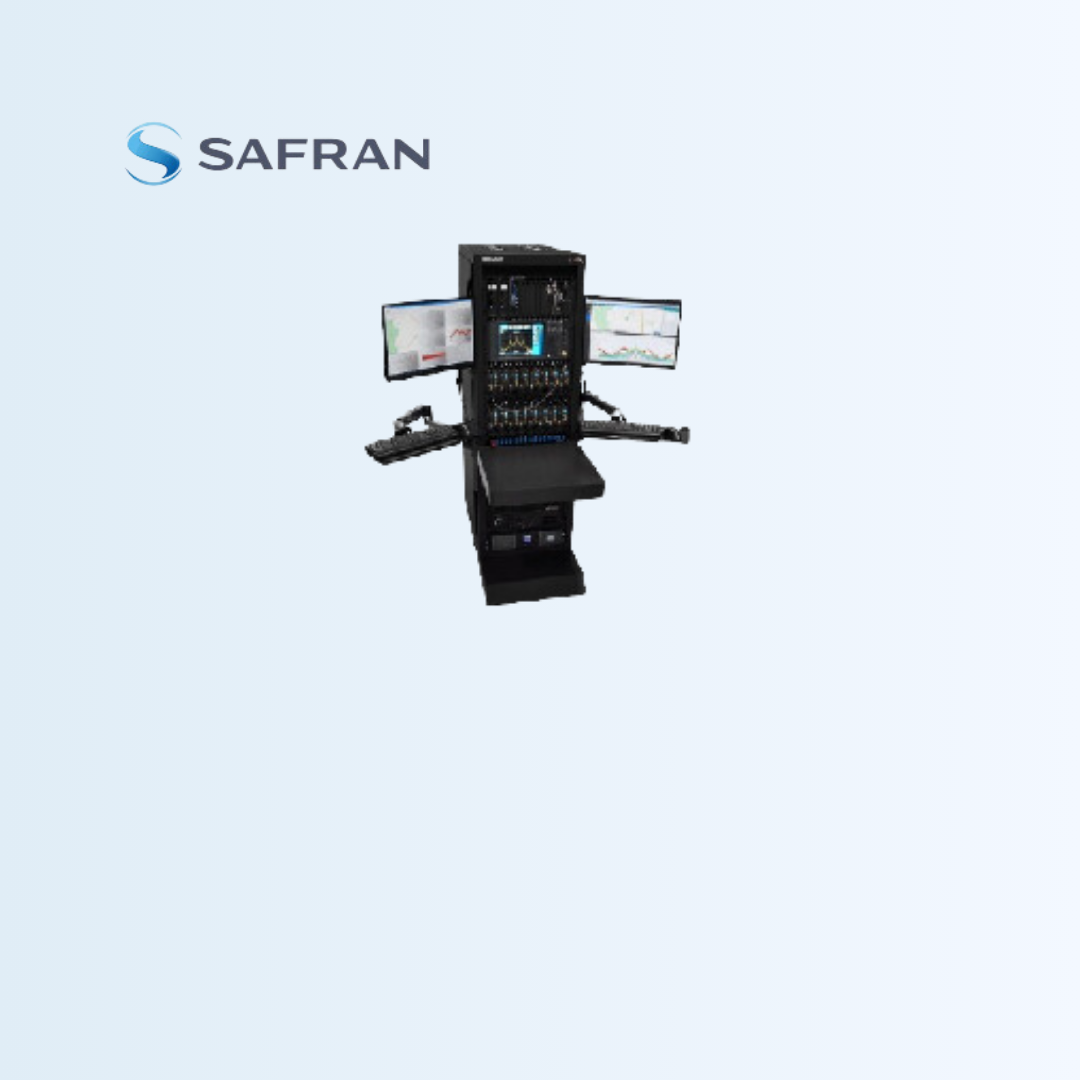

Skydel Anechoic

Skydel Anechoic

Anechoic Chamber Simulator System

Skydel Anechoic GNSS Simulator allows users to accurately simulate real-world GNSS environments in their Anechoic Chambers. Skydel Anechoic has 32 individual RF outputs enabling the system to drive 16 dual-frequency antennas. Revolutionary features like automatic antenna mapping, automatic time delay calibration, and automatic power loss calibration are what make Skydel Anechoic the most advanced Anechoic Chamber simulator on the market today.

  • Automatic antenna mapping.
  • Automatic time delay calibrations.
  • Automatic power loss calibration.
  • 1000Hz Simulation Rate.
  • Advanced Spoofing.
  • Advanced Jamming.
  • Scalable architecture using software-defined radios.
  • IQ file generation and playback.
16 Transmit Chains 48 dB amplifier, 80 dB variable attenuator, -18 dB monitor port.
RF Outputs/Signals GPS Open Codes: L1-C/A, L1C, L1-P, L2-P, L2C, L5, Galileo: E1, E5a, E5b, E6 HAS, BeiDou: B1, B2, GLONASS: G1, G2, NavIC, QZSS, SBAS: L1, L5, Custom Signals, 16 bit IQ, 50 MHz bandwidth.
