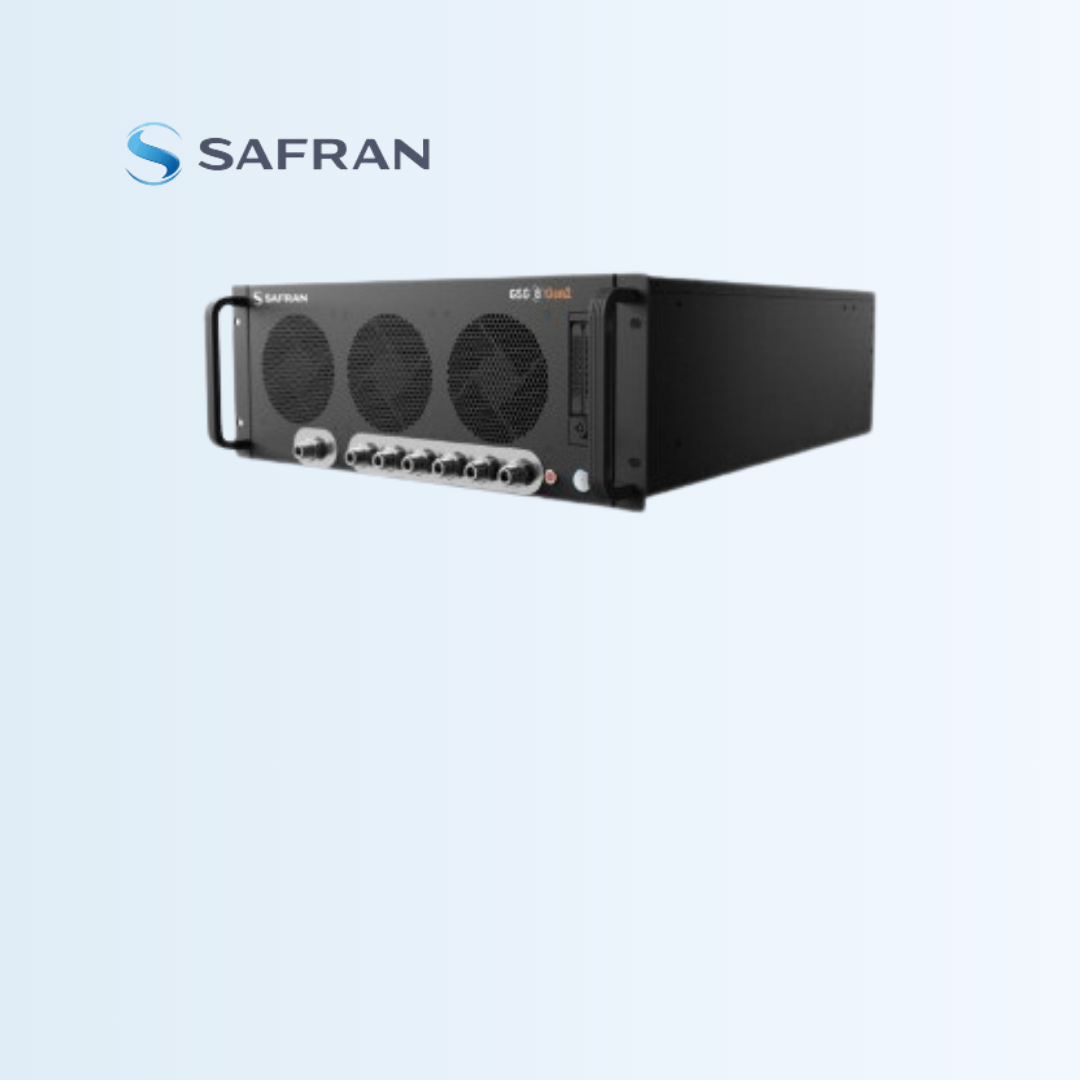

Skydel GSG-8 Gen2 GNSS Simulator

Skydel GSG-8 Gen2 GNSS Simulator

The Next Evolution of GNSS Simulation

Safran’s GSG-8 Gen2 is an evolution of the popular GSG-8. An expert-level positioning, navigation, and timing test solution offered through Safran’s family of Skydel-based simulators.

  • 2000+ signals.
  • All MF/MC Signals via Individual or Composite Port.
  • Up to 6 vehicle or antennas in a simulation.
  • Simulate jamming, spoofing, meaconing, interference of all kind.
  • Unlimited number of jammers.
  • 1000 Hz simulation iteration rate.
  • Available in three configurations with up to 6 SDRs.
  • Sub-nanosecond-level synchronization between RF bands.
  • High-end RF quality.
  • Simulate hundreds of satellites in real time.
  • Multi-vehicle simulation and API (Python, C#, C++).
  • IQ file generation and playback.
Power Consumption 1600W.
Compatible bands L1, L2, L5, E6, S-band.
CDM-7 Timing Module.
High-end GPUs.
Signals GPS L1-C/A, L1C, L1-P(Y), L2-P(Y), L2C, L5, Galileo: E1, E5a, E5b, E5, AltBOC, E6 HAS, PRS (Restricted Signals), GLONASS: G1, G2, BeiDou: BeiDou-2 (BDS-2): B1, B2, BeiDou-3 (BDS-3): B1C, B2a, B3I, QZSS: L1 C/A, L1 C/B, L1S, L2C, L5, L5S, NavIC (IRNSS): L1, L5, SBAS (Satellite-Based Augmentation Systems): L1, L5, Xona: PULSAR XL, Custom Signals: User-defined signals.
