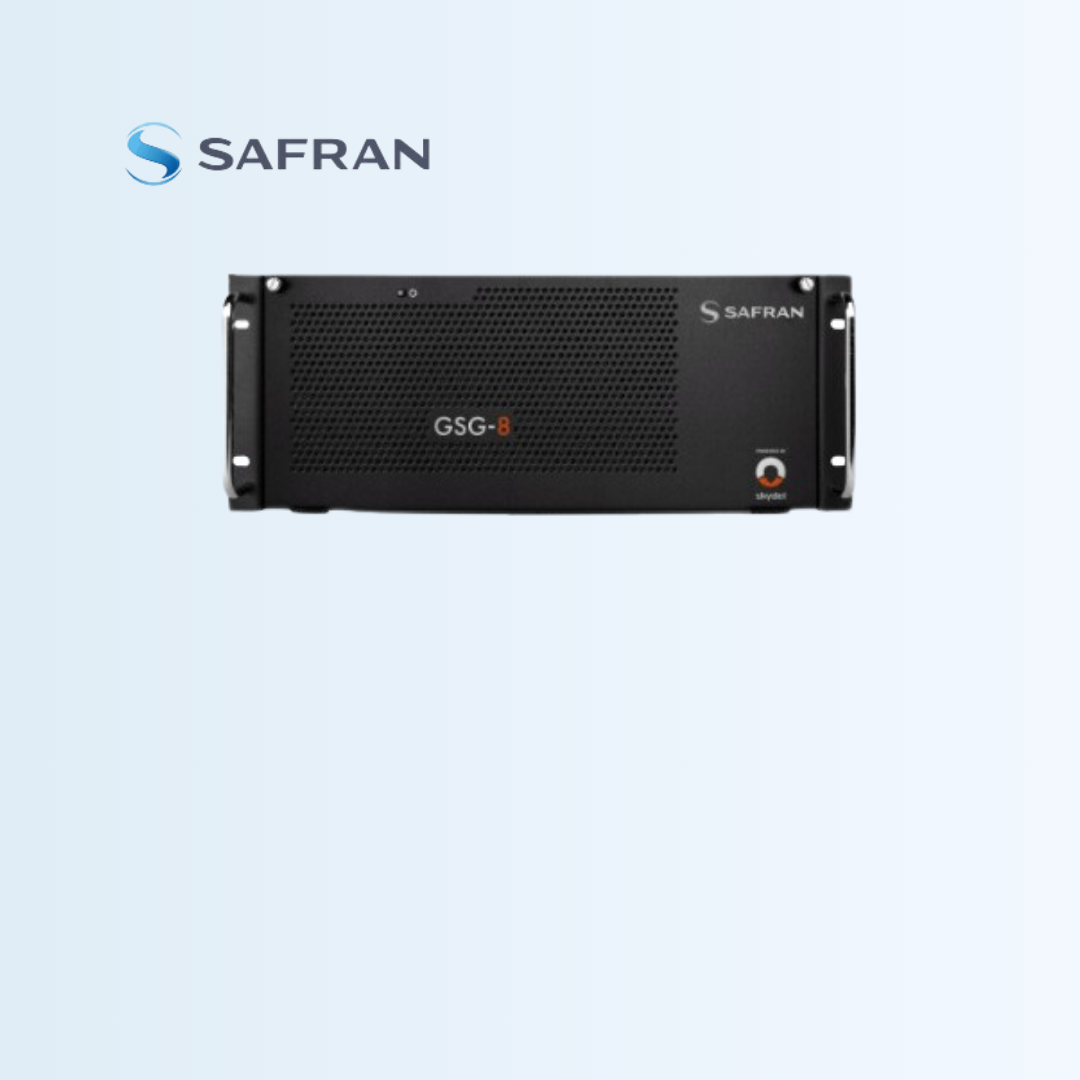

Skydel GSG-8 Advanced GNSS Simulator

Skydel GSG-8 Advanced GNSS Simulator

GNSS Simulator with Unmatched FLlexibility

The GSG-8 GNSS Simulator is an advanced software-powered turnkey simulator, supporting multi-constellation, multi-frequency, and hundreds of satellite signals. With an incredible 1000 Hz iteration rate, the GSG-8 GPS Simulator is ideal for space trajectories, custom PNT signals, hardware-in-the-loop, and any type of all-in-view satellites simulation.

  • Ultra-High Dynamics and User-defined waveforms.
  • Live Sky Time Synchronization.
  • On-the-fly scenario reconfiguration.
  • Advanced Jamming & Spoofing.
  • 6 degrees of freedom (DoF) receiver trajectories.
  • Flexible licensing and In-field upgradeability.
  • Simulate hundreds of satellites in real time.
  • Multi-vehicle simulation.
  • API (Python, C#, C++).
  • IQ file generation and playback.
  • 1600+ Signals and All-in-view satellites simulation.
  • 1,000 Hz iteration rate and Low-Latency Hardware-in-the-Loop.
Size 4U.
Power Consumption 400W.
Weight 39.6 lbs (18 kg).
Width 19 in (48 cm), 16 in (40.6 cm), 7 in (18cm).
Signals GPS L1-C/A, L1C, L1-P(Y), L2-P(Y), L2C, L5 NavIC L1, L5, S-Band
GLONASS G1, G2, Galileo: E1, E5a, E5b, E6, E6PRS, E6 HAS, E5AltBOC, PRS (restricted signals), PRS-Noise, HAS-Noise; OSNMA, BeiDou: B1, B2, B1C, B2A, B3I, QZSS: L1-C/A, L1 C/B, L2C, L5, L5S, SBAS (L1/L5): WAAS, EGNOS, MSAS, GAGAN, SDCM, Xona: PULSAR XL, Xona: PULSAR XL.
