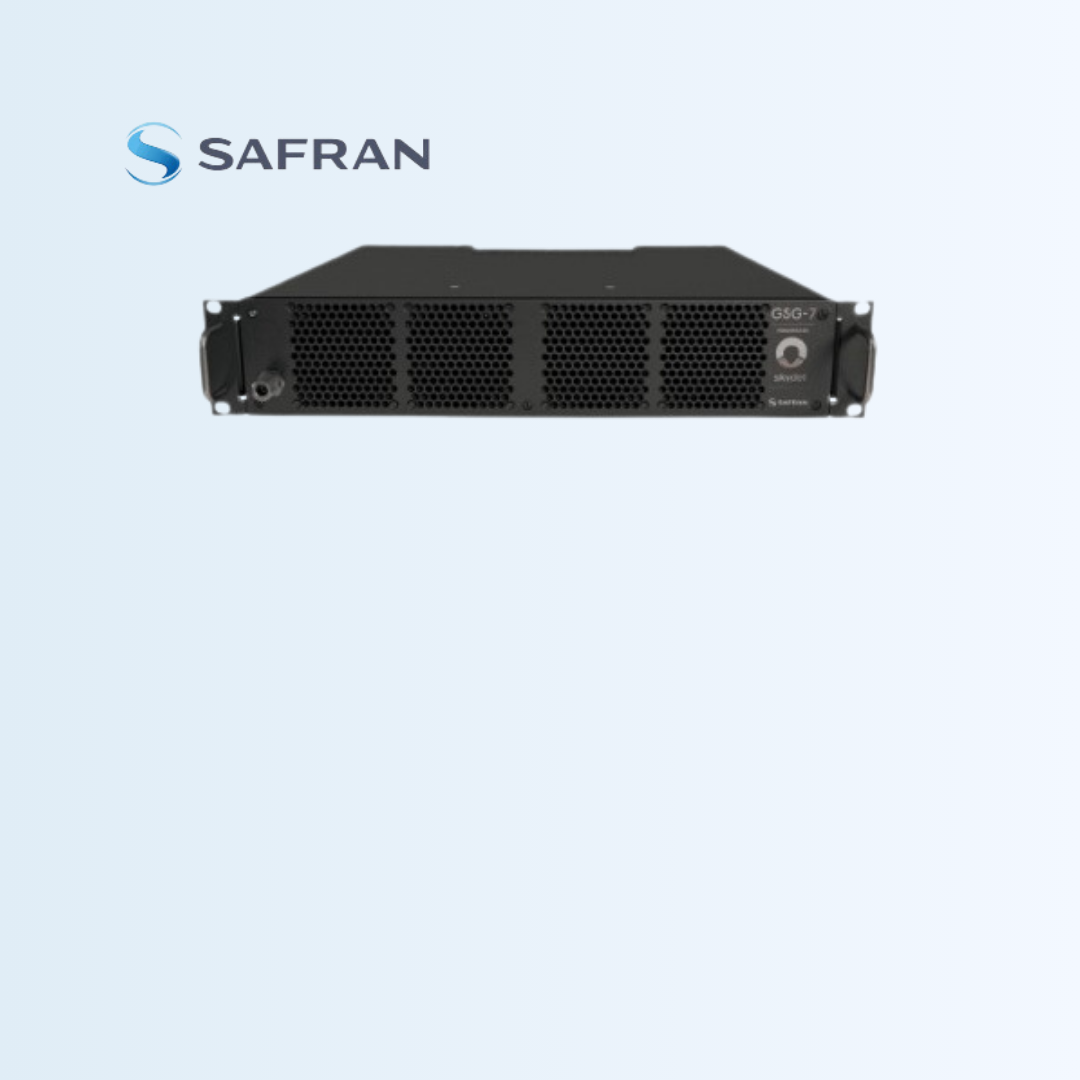

Skydel GSG-7 Advanced GNSS Simulator

Skydel GSG-7 Advanced GNSS Simulator

High Performance and Capability Made Easy

GSG-7 is redefining the GNSS simulation industry with its easy-to-use simulation capabilities, extraordinary flexibility and high signal capacity.

  • 700 signals and High-end RF quality.
  • Low latency HIL and Basic interference.
  • Live sky time synchronization.
  • Create custom signals and IQ file generation & playback.
  • 1000Hz simulation iteration rate and Hardware-in-the-loop (HIL).
  • Small size – 2U Rack-Mountable or Bench Top.
  • All MF/MC signals via a Composite port.
  • Available in three configurations with up to 3 SDRs.
  • Nanosecond-level synchronization between RF bands.
  • All-in-view satellites simulation, all GNSS constellations.
  • Comprehensive and intuitive API (Python, C# and C++).
  • RF Bands: 1-3 Maximum bandwidth 100 MHz (per radio).
Size 2U.
GPU 1.
Weight 11.5 kg (25 lbs).
Width 48 cm (19 in).
Depth 41 cm (16 in).
Height 9 cm (3.5 in).
Power Consumption 400W.
Line Voltage 100-240VAC, 50-60 Hz +/- 10% from IEC60320 (option O) connector.
Temperature +0C to +40C (operating), -15C to +50C non-condensing @ 12,000M (storage).
Single RF Output N-Type.
10 MHz output BNC.
1 PPS output BNC.
10 MHz input BNC.
Antenna inputt SMA.
Connector HDMI, USB, Ethernet ports.
