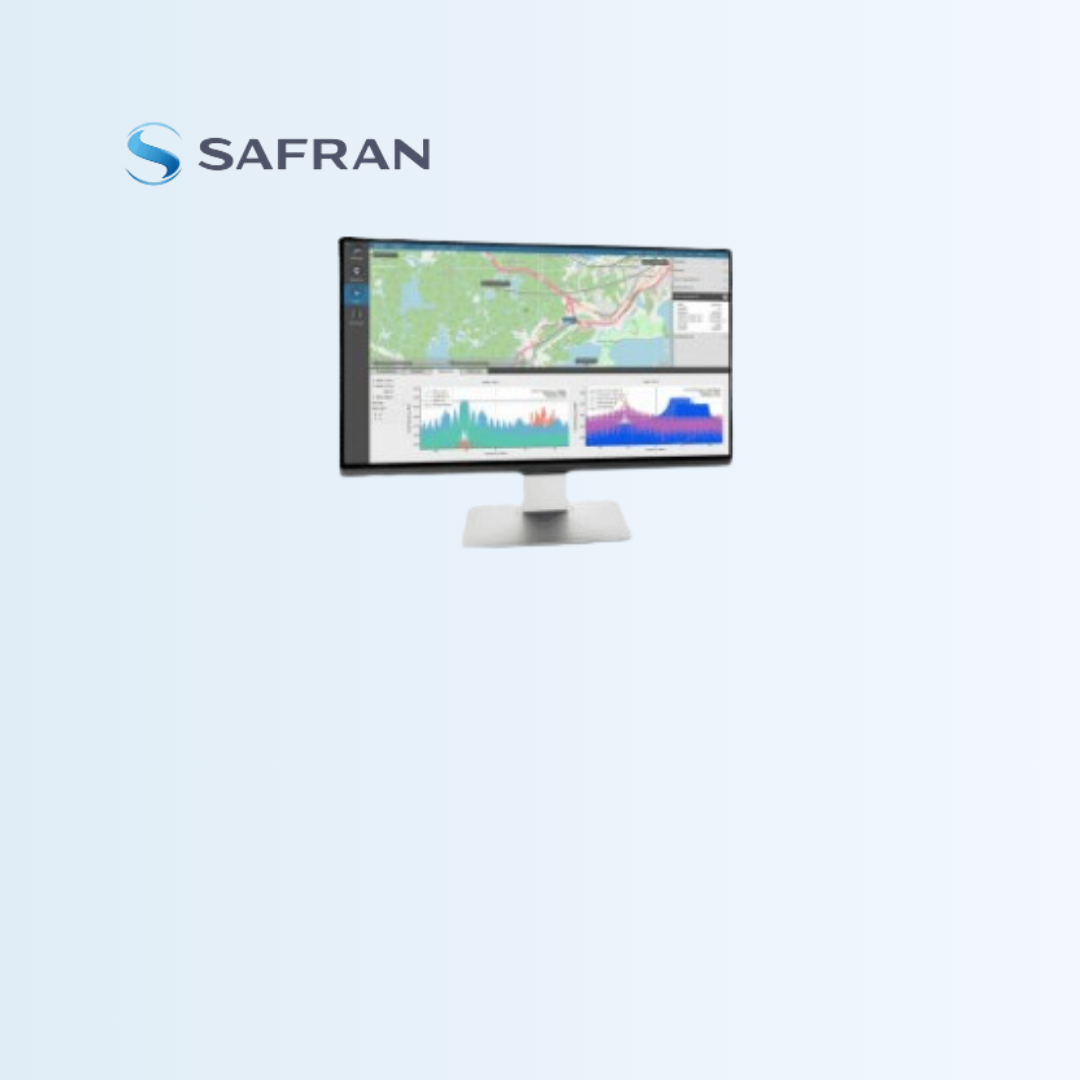

Skydel GNSS Simulation Software

Skydel GNSS Simulation Software

Advanced Simulation with Modern, Software-based Flexibility

Safran’s advanced Skydel GNSS software is more flexible, scalable, customizable, upgradeable, and cost-effective compared to traditional FPGA-based simulators. The way the world thinks about GNSS simulation today is not the same as even a few years ago, thanks to leaps in technology with software-defined radios and COTS components.

  • Supports all major global constellations & frequencies.
  • Multi-constellation, multi-frequency 1,000 Hz iteration rate.
  • Multi-vehicle & multi-antenna simulation.
  • Satellite orbit modification and custom support.
  • Advanced jamming and spoofing simulation.
  • Import multiple file formats CSV, KML, NMEA etc.
  • 6 DoF and orbital trajectories.
  • User-defined waveforms.
  • IQ file generation and playback.
  • Comprehensive API: (Python, C++, C#).
  • Integrate interface with no additional hardware.
  • Record and export user interactions as Python script.
  • Modify parameters and variables in real-time.
  • Signal customization.
  • Advanced scenario creation.
  • Intuitive UI and automation.
Frequency Bands All GNSS bands. Multiple RF outputs depending on SDR configuration. Baseband complex (zero IF) through IQ samples logging.
Operating Systems Linux & Windows.
GNSS Constellations and Signals GPS: L1-C/A, L1C, L1-P(Y), L2-P(Y), L2C, L5, NavIC L1, L5, S-Band, GLONASS: G1, G2, Galileo: E1, E5a, E5b, E6, E6PRS, E6 HAS, E5AltBOC, PRS (restricted signals), PRS-Noise, HAS-Noise, OSNMA, BeiDou: B1, B2, B1C, B2A, B3I, QZSS: L1-C/A, L1 C/B, L2C, L5, L5S, SBAS (L1/L5): WAAS, EGNOS, MSAS, GAGAN, SDCM, Xona: PULSAR XL, Custom Signals.
Signal Accuracy Pseudorange 1mm, Pseudorange rate 1mm/s, Inter-channel bias 0.
