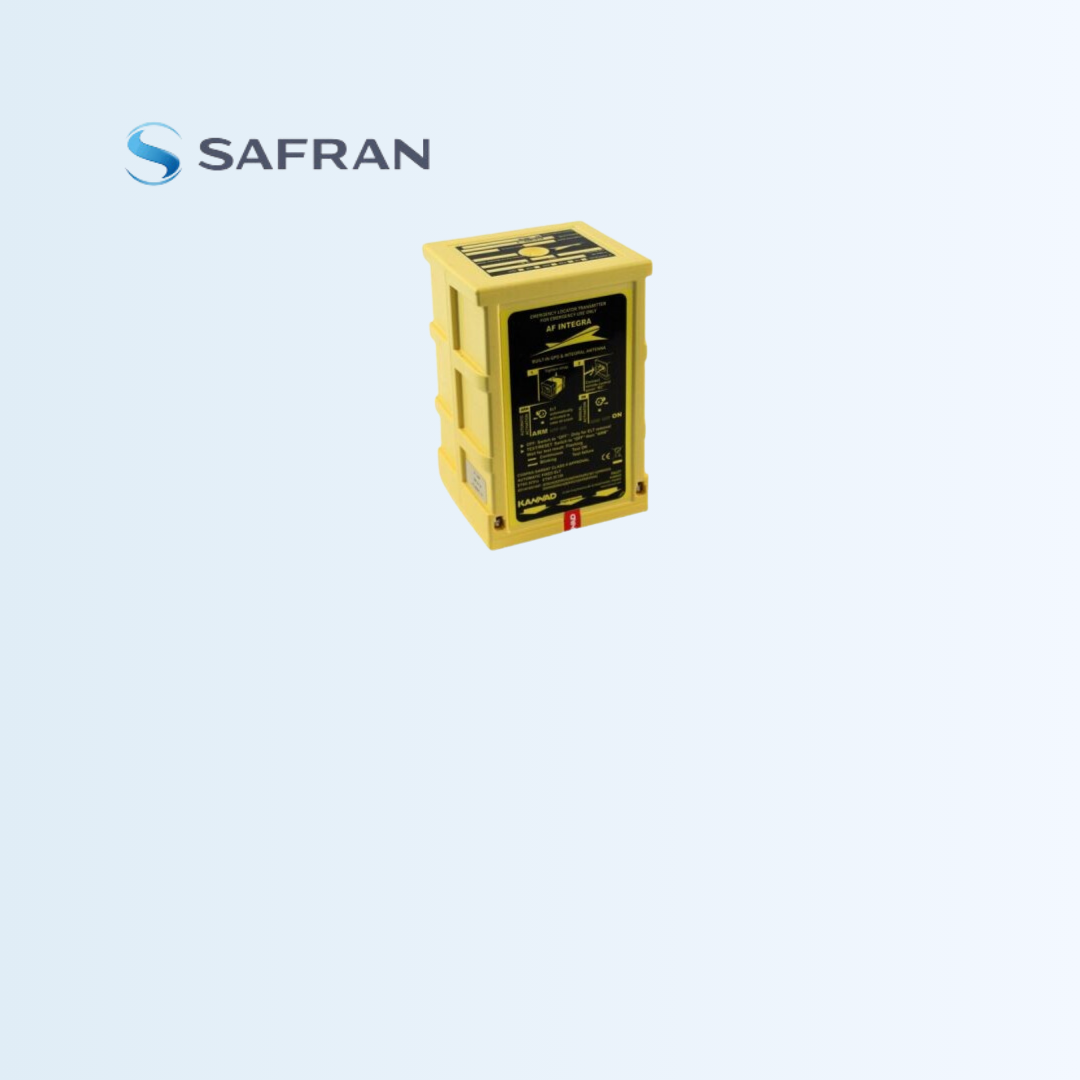

Kannad Integra AF

Kannad Integra AF

Kannad Integra AF

The Integra AF is designed for flat installation on fixed wing aircraft. Operating independently of the aircraft, the back-up antenna will transmit your position through the 406 MHz frequency to the Cospas-Sarsat search and rescue satellites.

  • Automatic Fixed ELT: Type ELT(AF).
  • Cospas-Sarsat Class II:Operating Temperatures -20° to +55°C.
  • Two-frequency transmitter (121.5 / 406MHz):406.037 MHz ,Operating Life. time 24 hours at -20°C 121.5 Homing device, Operating Life time > 48 hours at -20°C.
  • 6 year battery life-time.
  • Short Circuit protection.
  • Internal GPS receiver with internal antenna.
  • Location input via RS232 NMEA interface.
  • Integral antenna transmitter.
  • For Fixed wing aircraft (Can also suit helicopters, but with a specialmounting tray (45° nose down).
  • The “Mounting Bracket” must be ordered separately.
Automatic Fixed Emergency Locator Transmitter G-Switch sensor.
Environmental Conditions RTCA DO-160°/EUROCAE ED14.
TS0/ETSO Approved TSO-C126a, C142a / ETSO 2C91a, 2C126, C142a
Weight 755 g. (max).
Transmitter Dimensions 137x 86 x 75.4 mm.
Overall dimensions With Mounting Bracket AF COMPACT : 140 x 98x 86.4 mmWith COMPACT Universal Mounting Bracket; 175.12 x 99 .12 x 86.4 mmWith Mounting Bracket INTEGRA AF:140 x 98 x 16 mm.
