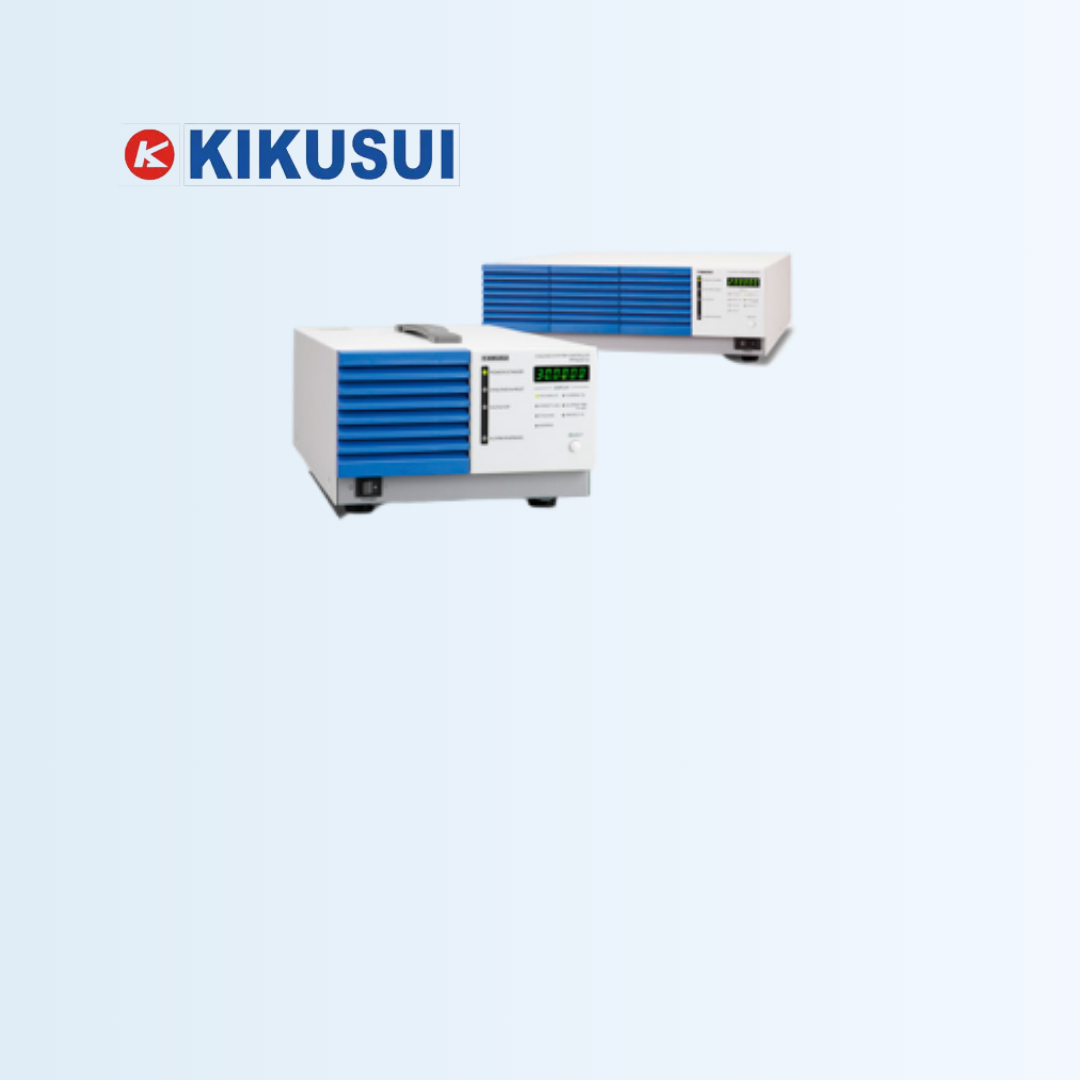

PFX2500Series

Fully suppor t Charge and Discharge Measurement from Basic Test to Simulation Test

PFX2512/2532 Series is a high performance Charge/Discharge system controller that takes measurements in combination with our DC power supply and electronic load in order to evaluate test sample (electric storage elements such as secondary batteries) characteristics. It is also capable to per form evaluation test with high – per formance, large capacit y and wide range of rating with the combination of DC power supply and electronic load. Execution of the test is conducted by the exclusive application software.

Easy Configuration.
Control of the Constant Current (CC) and Constant Voltage (CV).
Highly accurate measurement.
Protection Functions for Safety Operation.
Up to 10000 Steps for Pattern Charge/Discharge.
Capable of Expanding Measurement Function.
Corresponding to Specification Test Pattern by Realizing Seamless Charge/Discharge.
Realized Maximum 1 msHigh Speed Data Sampling.
More Accurate Single Cell Evaluation with 6V Range.
Applied to CAN interface.
Descriptions of Charge/Discharge Test.
Control of the Constant Current (CC) and Constant Voltage (CV).
Protection Functions for Safety Operation.
Precise Measurement.
Pulse discharge function.
Capable of complex control of charge and discharge.
Protection function for the DUT cable connection.

PFX2532	PFX2512/2532 Series has integrated systems into one unit where battery evaluation is required.
PFX2511	PFX2511 is used as a charge and discharge test system combined with the selected DC power supply (charging) and electronic load (discharging). This allows flexible configuration of the system.
