KDS6-0.2TR
KDS6-0.2TR
KDS6-0.2TR

KDS6-0.2TR

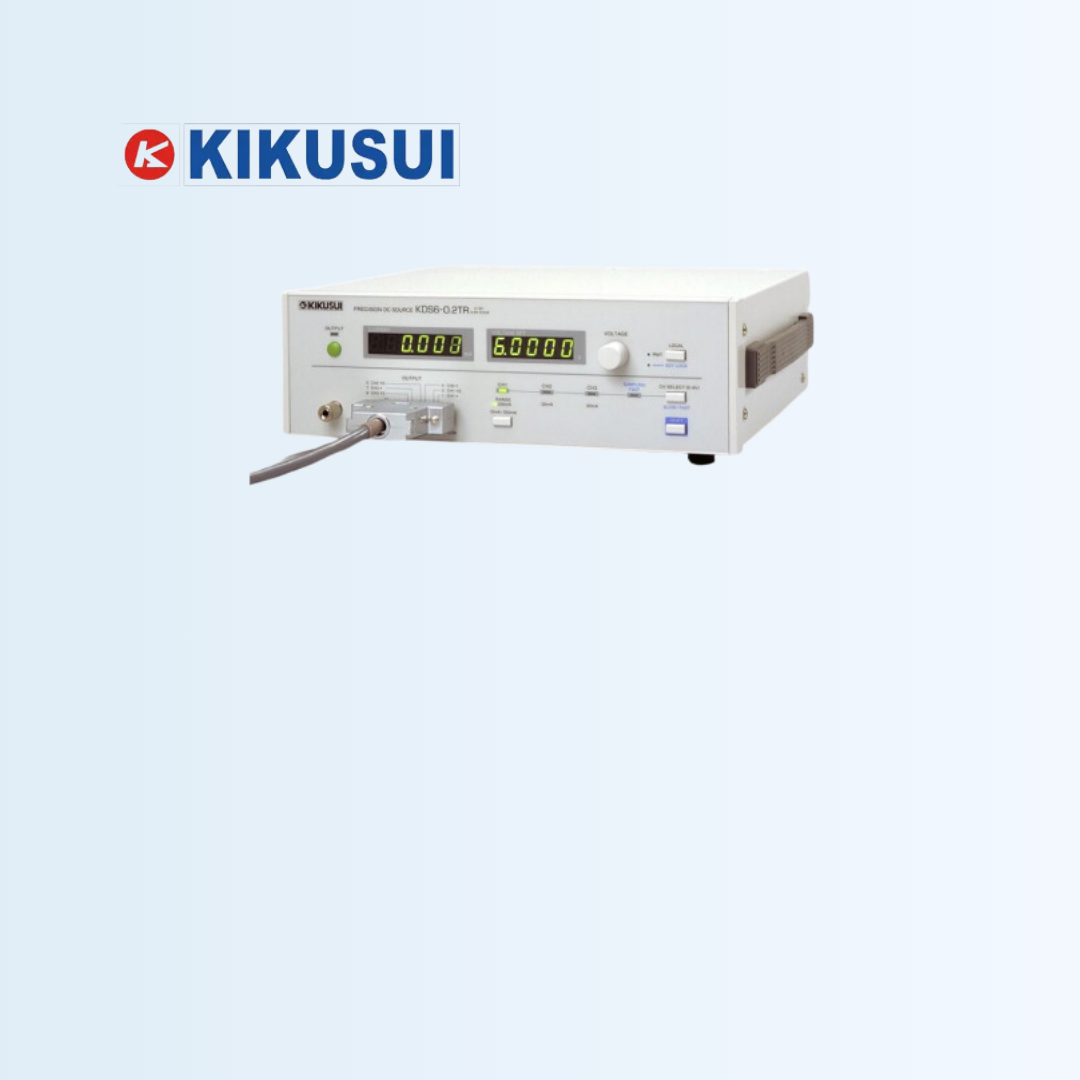

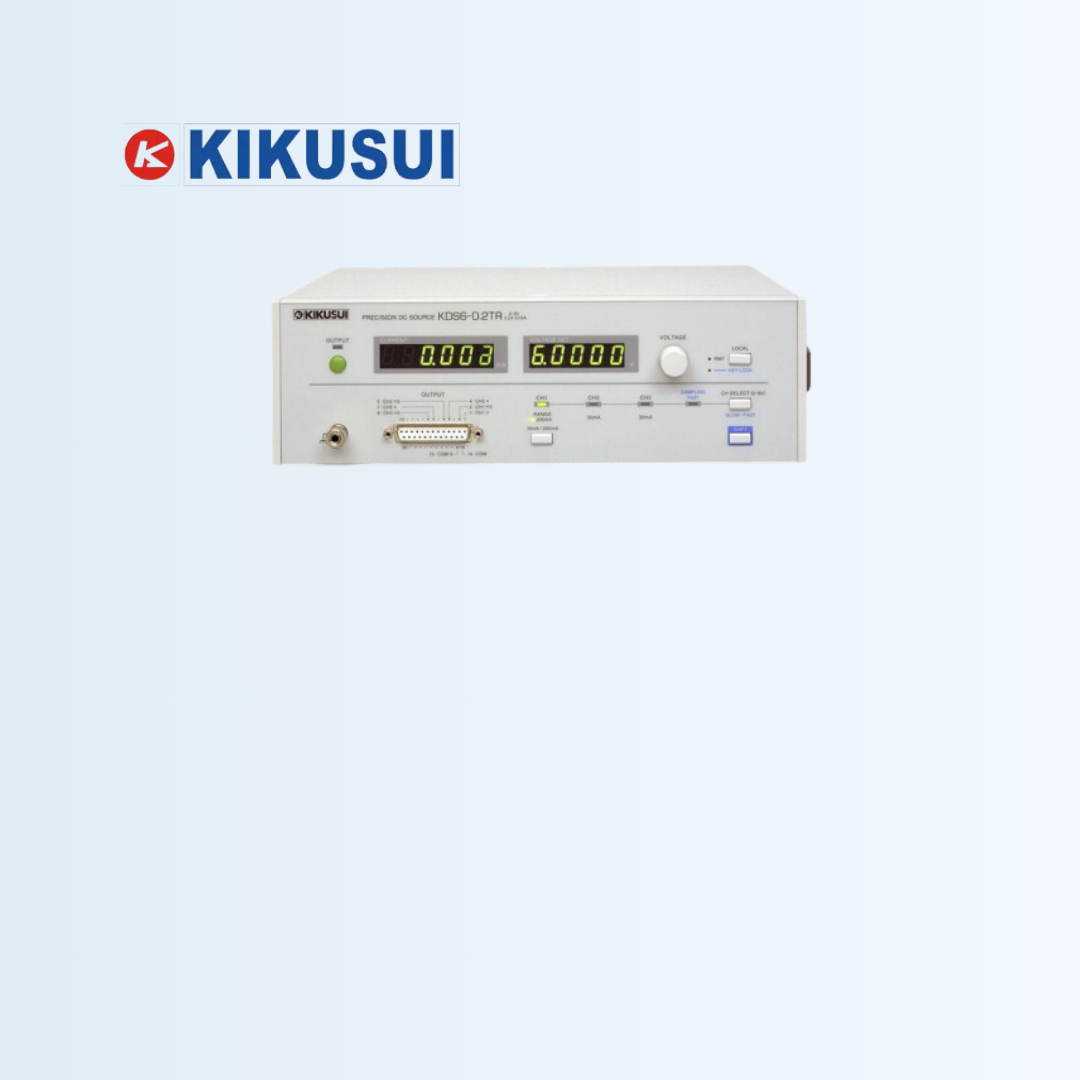

3CH Precision DC Source (Series regulated system, CV)

KDS6-0.2TR is designed for use on production and inspection lines for high-frequency components capable of low supply current and low voltage operation that have become dominantly popular in recent years, as well as for a variety of electronic devices such as ICs, LSIs, and sensors. This product is a low-noise, highly stable DC voltage power supply with 3-channel output.

  • 3-channel voltage standard (CH1: 0 to +6 V/200 mA, CH2: 0 to +6 V/30 mA, CH3: 0 to +6 V/30 mA (COM of 3-channel in common).
  • Remote sensing function that compensates for voltage drops at the output terminal.
  • Best suited to operation tests for VCO and many other types of sensors
  • Voltage setting resolution of 100 µV (allows a different voltage to be set independently for each channel).
  • Current reading resolution of 0.1 µA* (in standard mode).
  • Ripple noise level lower than 100 µVrms, thus supporting measurements of high-sensitivity devices.
  • High-resolution meter with an easy-to-view, 6-digit current display (no external ammeter needed).

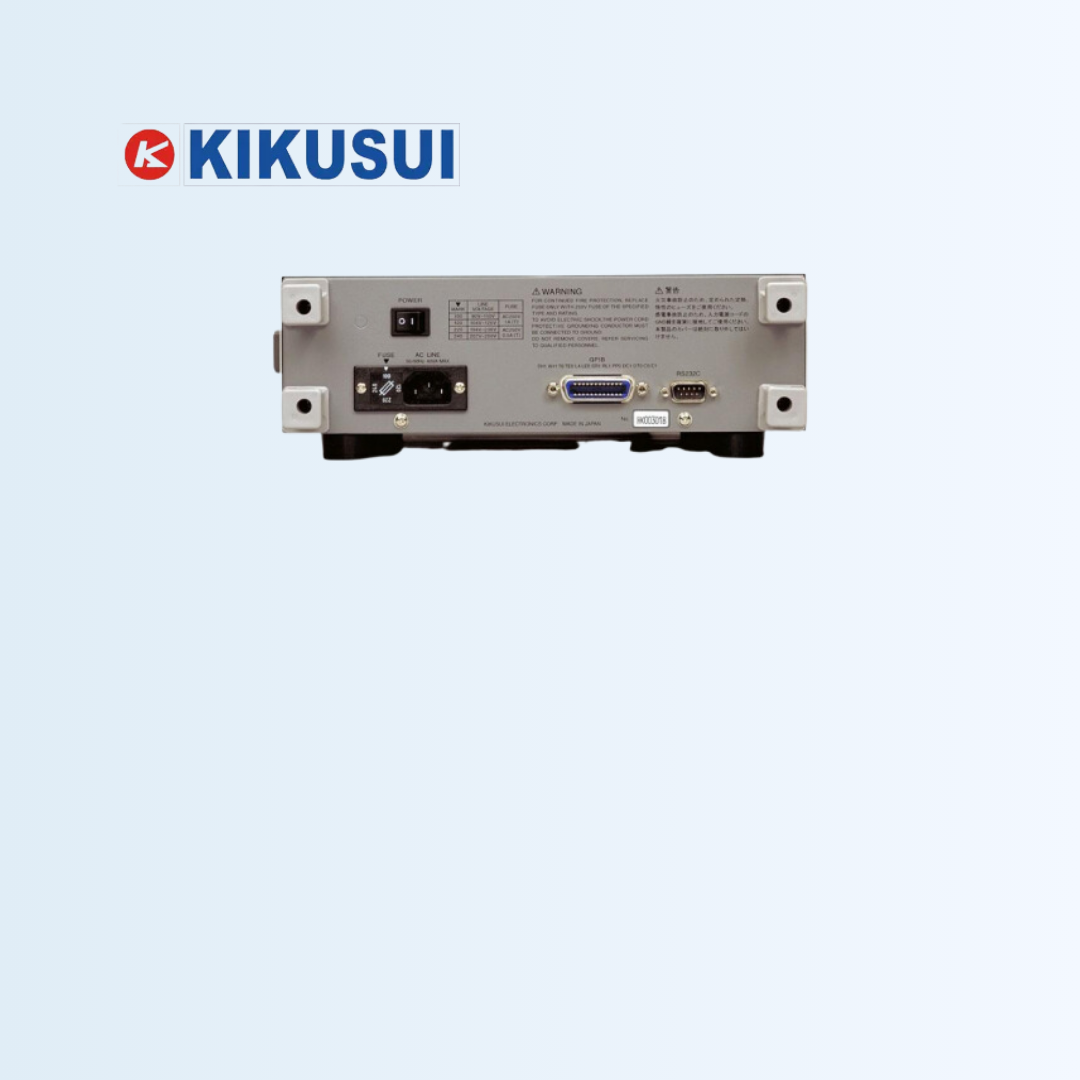

  • Supports RS-232C and GPIB as standard interfaces.
  • High-speed operation.
  • Current value refresh interval: 60 ms (in high-speed mode).
  • Setting/readout speed: 5 ms (reference value for GPIB).
  • omes with a D-Sub 25 pin connector allowing for noise resistance.
KDS6-0.2TR 3-channel voltage standard, CH1: 0 to +6 V/200 mA, CH2: 0 to +6 V/30 mA, CH3: 0 to +6 V/30 mA (COM of 3-channel in common), Setting resolution of 100 µV (allows a different voltage to be set independently for each channel), Current reading resolution of 0.1 µA (in standard mode, * 1 µA resolution for the 200 mA) , Ripple noise level lower than 100 µVrms, thus supporting measurements of high-sensitivity devices
